Eaton

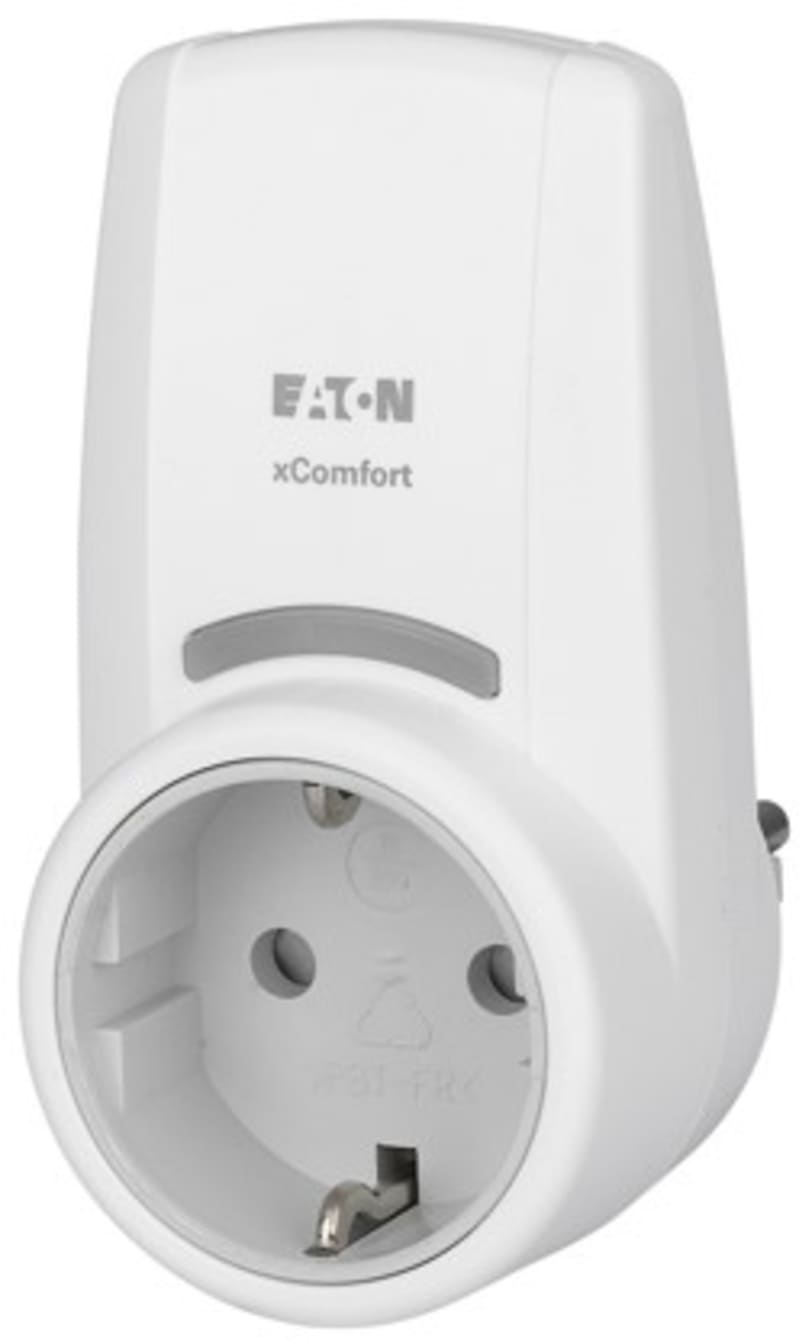

Eaton pluggable dimmer actuator 0-250 W white
Part numberCDAP-01/F5-1EEAN / GTIN9010238075542HS code8536.90
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CDAP-01/F5-1E pluggable dimmer actuator 0-250 W.
Technical Specifications
- Manufacturer part number (MPN)
- CDAP-01/F5-1E
- EAN / GTIN
- 9010238075542
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 195172
- Depth
- 100.3 mm
- Height
- 76 mm
- Width
- 52 mm
- Weight
- 0.16 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional; Local operation/hand operation
- Bus system operating type
- Other; Radio frequent
- Actuation function
- Dimming
- Bus system product type
- Actuator
- Frequency rating - max
- 50 Hz
- Frequency rating - min
- 50 Hz
- Output power - max
- 250 W
- Fitted with
- Bus connection; LED indication
- Switching power LED - max
- 100 W
- Voltage rating - max
- 253 V
- Voltage rating - min
- 196 V
- Width in number of modular spacings
- 0
- Power supply
- Mains
- Color
- Traffic white (RAL 9016)
- Number of outputs
- 1
- Degree of protection
- IP20
- Load type
- Universal and LED retrofit
- Model
- Dimming actuator
- Mounting method
- Surface mounted (plaster); Plugged-in
- Suitable for
- Constant current; Constant voltage
- Number of linkable devices
- 32
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Device emplacement
- Indoor positioning
- RAL-number
- 9016
- Frequency
- 50 Hz
- Bus system KNX
- No
- Bus system radio frequency
- Yes
- Bus system Powernet
- No
- With bus connection
- Yes
- Type of load
- Universal and LED Retrofit
- Material
- Polycarbonate (PC)
- Voltage
- 196–253 V
- Bus system LON
- No
- Substation input
- No
- Parallel-service possible
- No
- Local operation/hand operation
- Yes
- Output power
- 0–250 W
- With LED indication
- Yes
- Power boost suitable
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- Yes
- Suitable for constant current
- Yes
- Suitable for constant voltage
- Yes
- Constant light output (CLO)
- Yes
- Bus module detachable
- No
- Max. switching power LED
- 100 W
- Country of origin
- Czechia
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238075542
- SAP 1200126826
- Code 81988362
Product Documentation
Document preview: Pluggable Dimmeakt. 250W, White (CDAP-01/F5-1E) — Specification Data Sheet (OEM)
