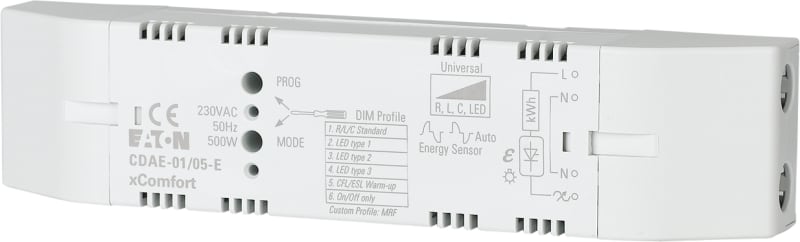

Eaton xComfort Universal Dimmer 500 W with Energy Metering
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton xComfort CDAE-01/05-E is a universal built-in dimming actuator rated 0-500 W with integrated energy-metering sensor. Bidirectional radio-frequency bus operation, 230 V 50 Hz supply, IP20, suitable for constant-current and constant-voltage LED loads including retrofit lamps. Used in smart-installation lighting circuits where dimming and power monitoring are required from a single flush-mounted unit.
Technical Specifications
- Manufacturer part number (MPN)
- CDAE-01/05-E
- EAN / GTIN
- 4015081773763
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 34 pcs
- Eaton catalogue number
- 182449
- Depth
- 149.63 mm
- Height
- 27.7 mm
- Width
- 34.06 mm
- Weight
- 0.07 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional
- Bus system operating type
- xComfort; Radio frequent
- Actuation function
- Dimming
- Bus system product type
- Actuator
- Frequency rating - max
- 50 Hz
- Frequency rating - min
- 50 Hz
- Output power - max
- 500 W
- Output power - min
- 0 W
- Fitted with
- LED indication; Bus connection
- Switching power LED - max
- 200 W
- Voltage rating - max
- 230 V
- Voltage rating - min
- 230 V
- Width in number of modular spacings
- 3
- Power supply
- Mains
- Number of outputs
- 1
- Degree of protection
- IP20
- Load type
- Universal and LED retrofit
- Model
- Dimming actuator
- Mounting method
- Built-in; Built-in installation
- Suitable for
- Constant current; Constant voltage
- Number of linkable devices
- 32
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081773763
- SAP 1000734140
- Code 8369588
Product Documentation
