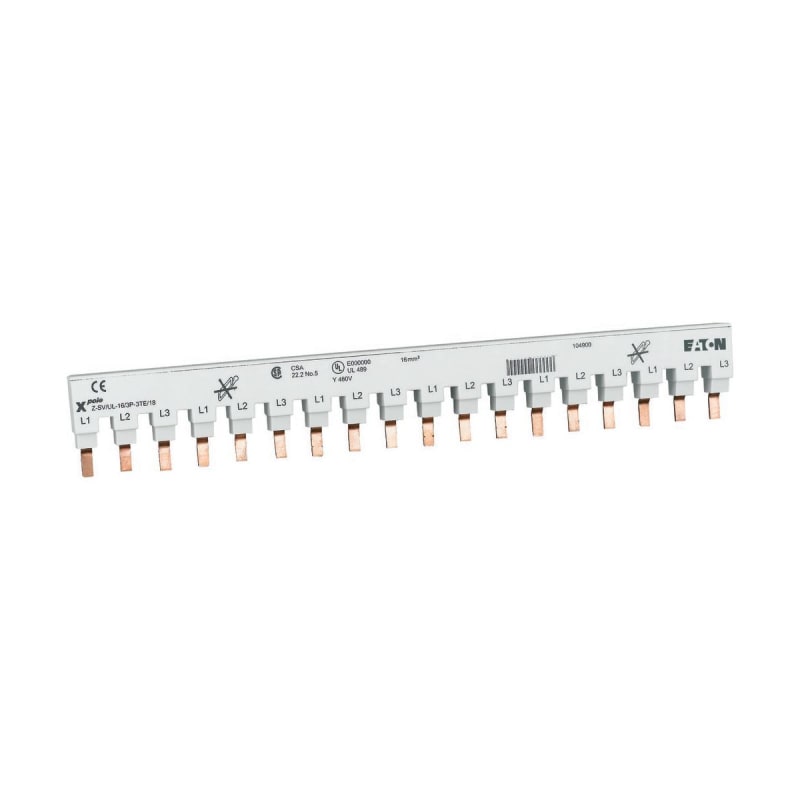

BUSBAR 3P 18MOD 16 mm² FAZ

Eaton 104900 Z-SV/UL-16/3P-3TE/18.

Manufacturer part number (MPN)

104900 EAN / GTIN: 7022241008365 Sales unit: pcs minimum order quantity: 10 Order multiple: 10 Eaton catalogue number: 104900 Depth: 311.6 mm Height: 54 mm Width: 15.5 mm Weight: 0.24 kg Compliances: RoHS conform Certifications: UL (File No. E257181); UL (Category Control Number NMTR2, DIHS2); UL 489; CE marking; UL listed; Specially designed for North America for large creepage and creepage distances; IEC/EN 60898 Used with: Feeder Circuit, Branch Circuit; Busbar; Z-SV Type: Busbar Z-SV Features: Insulated Accessory/spare part type: Busbar for residual current circuit breakers; Busbar for combined residual current/power circuit breaker; Busbar for miniature circuit breaker Electric connection type: Pin Rated surge voltage: 9.5 KV Suitable for number of devices: 0 Application: Switchgear for industrial and advanced commercial applications Number of poles: Three-pole Color: Other Degree of protection: IEC: IP20 UL/CSA Type: -; IEC/EN 60898; UL 489; CE marking Voltage rating (UL CSA 13): Refer to main components FAZ, FAZ-NA, FAZ-RT Cross section: 16 mm² Number of modular spacings: 3 Number of phases: 3 Rated operational voltage (Ue) - max: 690 V Functions: Busbar Insulated: Yes Length: 315 mm Width in number of modular spacings: 3 Type of electric connection: Pin Suitable for devices with auxiliary switch: No Suitable for devices with N-conductor: No Max. rated operation voltage Ue: 690 V Can be cut to size: No Country of origin: Czechia

HS Code

8538.10

• EAN 7022241008365
• SAP 1200708664
• Code 83821124
