Eaton

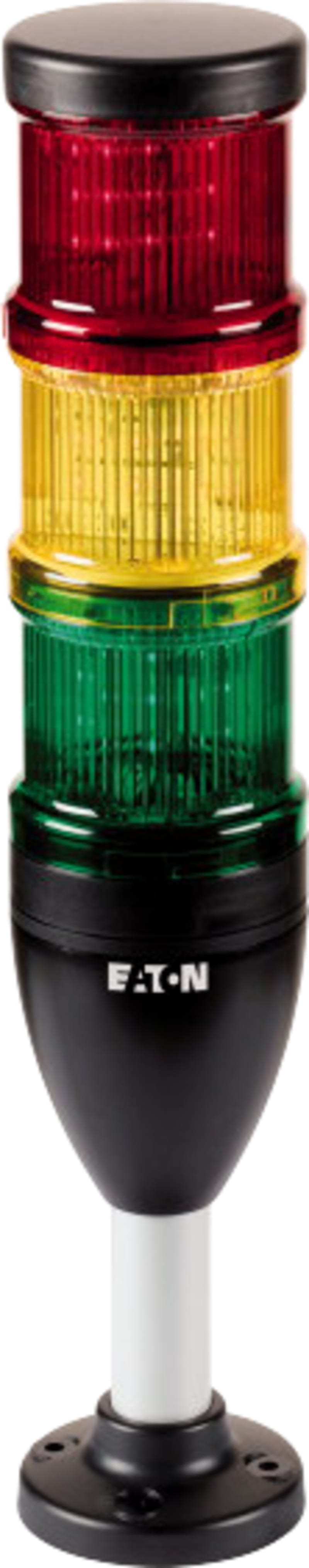

Complete Red/Yellow/Green 24V LED (SL7-100-L-RYG-24LED)
Part numberSL7-100-L-RYG-24LEDEAN / GTIN4015081677573HS code8531.80
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton SL7-100-L-RYG-24LED.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-100-L-RYG-24LED
- EAN / GTIN
- 4015081677573
- Sales unit
- pcs
- Eaton catalogue number
- 171425
- Depth
- 73 mm
- Height
- 373 mm
- Width
- 73 mm
- Weight
- 0.504 kg
- Certifications
- CSA-C22.2 No. 94-91; UL File No.: E29184; UL report applies to both US and Canada; IEC/EN 60529; UL; CE; CSA Class No.: NKCR7; CSA-C22.2 No. 14-10; UL 508; UL Category Control No.: NKCR; Certified by UL for use in Canada; IEC/EN 60947-5-1
- Catalog Notes
- The value specified for the leakage current shall apply per module.
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 24 V AC/DC
- Rated operational voltage (Ue) - max
- 24 V
- Rated operational voltage (Ue) - min
- 24 V
- Color
- Green; Yellow; Red
- Fitted with
- 100 mm tube; Foot
- Light modules
- LED
- Number of modules
- 3
- Connection to SmartWire-DT
- No
- Current consumption
- 0.049 - 0.054 A, at 24 V AC/DC; The value specified for the current consumption at 24 V AC/DC applies to each module.
- Degree of protection
- IP66; NEMA 4X, 13
- Lifespan, electrical
- 100,000 h
- Light type
- Continuous light
- Material
- Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC)
- Mounting Method
- Standard stacklight base
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Complete device
- Voltage type
- AC/DC
- Terminal capacity
- 0.25 - 1.5 mm², flexible with ferrule with plastic collar; 0.13 - 2.5 mm², solid or flexible conductor; 24 - 14 AWG
- Outer diameter
- 73 mm
- Loudness
- 0 dB
- Function flashing light
- No
- Function acoustic
- No
- Function continuous light
- Yes
- Rated operating voltage Ue
- 24 V
- Function revolving light
- No
- Operating voltage AC 50 Hz
- 21.6–26.4 V
- Operating voltage AC 60 Hz
- 21.6–26.4 V
- Operating voltage DC
- 21.6–26.4 V
- Voltage type for actuating
- AC/DC
- Number of signal tower elements
- 3
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081677573
- SAP 1000492237
- Code 8282508
