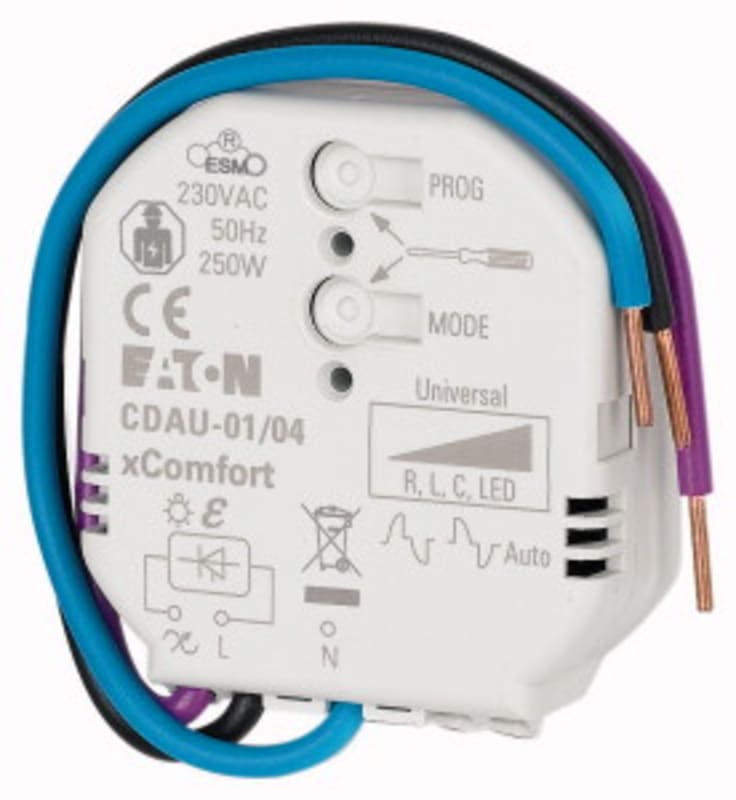

Eaton xComfort Universal Dimmer Actuator 250 W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CDAU-01/04 universal 250 W dimmer actuator for flush mounting, installation depth 18 mm. Part of the xComfort smart home range with bidirectional radio-frequency bus communication. Suitable for universal and LED-retrofit loads at 230 V / 50 Hz.
Technical Specifications
- Manufacturer part number (MPN)
- CDAU-01/04
- EAN / GTIN
- 4015081773701
- HS code
- 8536.90
- Sales unit
- pcs
- Product segment
- Smart home
- Eaton catalogue number
- 182443
- Depth
- 65 mm
- Height
- 18 mm
- Width
- 65 mm
- Weight
- 0.032 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional
- Bus system operating type
- xComfort; Radio frequent
- Actuation function
- Dimming
- Bus system product type
- Actuator
- Built-in installation box depth - min
- 18 mm
- Frequency rating - max
- 50 Hz
- Frequency rating - min
- 50 Hz
- Output power - max
- 250 W
- Output power - min
- 0 W
- Fitted with
- Bus connection; LED indication
- Switching power LED - max
- 100 W
- Voltage rating - max
- 230 V
- Voltage rating - min
- 230 V
- Width in number of modular spacings
- 3
- Power supply
- Mains
- Number of outputs
- 1
- Degree of protection
- IP20
- Load type
- Universal and LED retrofit
- Model
- Dimming actuator
- Mounting method
- Flush mounting; Flush mounted (plaster)
- Suitable for
- Constant current; Constant voltage
- Number of linkable devices
- 32
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081773701
- SAP 1200000204
- Code 8370474
Product Documentation
More from Eaton
Eaton
Earth-fault RCD 20A 3P+N/C A 30MA
MRB4-20/3N/C/003-A
Eaton
BUSBAR 3-PHASE+n (EVG-3P+3N/16MODUL)
Eaton
Terminal Block 125 A - 6 Outgoing Feeders
BPZ-KB-6/125-ALU KO
Eaton
Connection Enclosure B400 IT without channel grey
Y7-187901
Eaton
Eaton FAZ-C63/3 Miniature Circuit Breaker — 3P, Type C, 63 A, 15 kA
Eaton
Connection cabinet B400 IT/TT with trunking, dark
195383
Eaton
Eaton FAZ-C10/2 Miniature Circuit Breaker — 2P, Type C, 10 A, 15 kA
Eaton
BUSBAR 2-PHASE 1+2-Pole 6MODULE
EVG-2PHAS/6MODUL
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CDAU-01/04?
- CDAU-01/04 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is CDAU-01/04.
- What is the HS code for CDAU-01/04?
- The customs tariff (HS) code for CDAU-01/04 is 8536.90.
- Who manufactures CDAU-01/04?
- CDAU-01/04 is a Eaton product in the Electrical Components range.
- Is a datasheet available for CDAU-01/04?
- Yes — the CDAU-01/04 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CDAU-01/04?
- The minimum order quantity is 1.
- Is CDAU-01/04 available?
- Yes — CDAU-01/04 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
