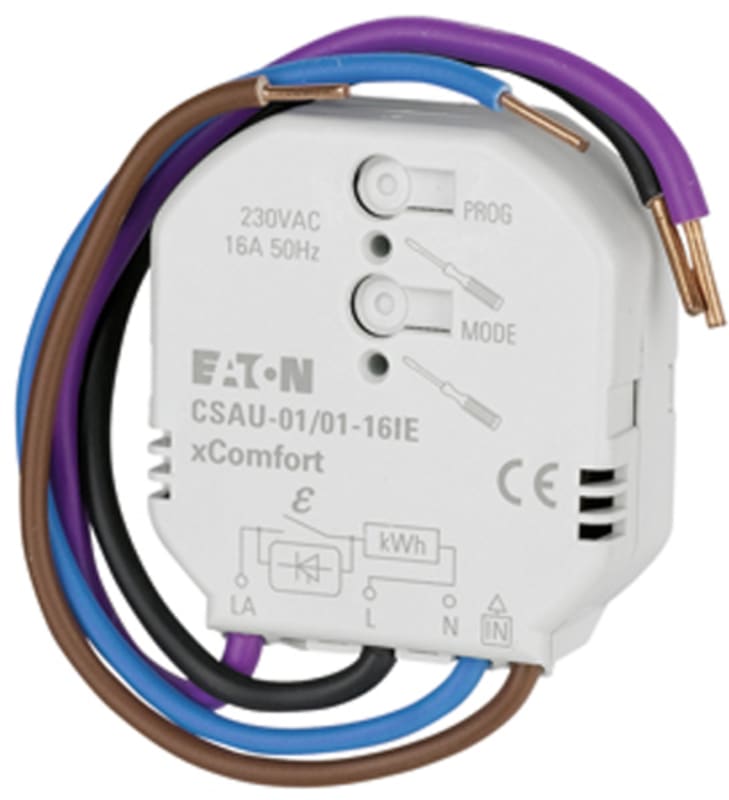

16A BRYTEAKT. M/INNG and EMS

Switching actuator for flush mounting, 16 A, RLC load, with local 230 V binary input and integrated energy metering.

Manufacturer part number (MPN)

CSAU-01/01-16IE

EAN / GTIN

4015081695300

Sales unit

pcs

Package quantity

60 pcs

Eaton catalogue number

172942

Depth

65 mm

Height

18 mm

Width

65 mm

Weight

0.044 kg

Compliances

RoHS conform

Features

Local operation/hand operation; Radio frequent bidirectional

Bus system operating type

xComfort; Radio frequent

Actuation function

Switching

Bus system product type

Actuator

Built-in installation box depth - min

18 mm

Number of inputs (binary)

1

Number of switching contacts - max

1

Rated operating voltage (Ue) - max

230 V

Rated operating voltage (Ue) - min

230 V

Amperage rating

16 A

Fitted with

LED indication; Bus connection

Switching current - max

16 A

Switching power - max

3680 W

Width in number of modular spacings

3

Output power

3680 W

Power supply

Mains

Degree of protection

IP20

Functions

Bus module detachable

Mounting method

Flush mounting; Flush mounted (plaster)

Suitable for

C-load

Power consumption

0.25 W

Number of linkable devices

32

Bus system KNX Secure

No

Bus system KNX Secure-RF (Radio Frequency)

No

Bus system KNX

No

Bus system KNX-RF (Radio Frequency)

No

Bus system radio frequency

Yes

Bus system LON

No

Bus system Powernet

No

Other bus systems

None

Radio frequency bidirectional

Yes

Local operation/hand operation

Yes

With LED indication

Yes

Number of digital inputs

1

Max. switching power

3680 W

Suitable for C-load

Yes

Max. number of switching contacts

1

Max. switching current

16 A

Rated current

16 A

Rated operating voltage

230 V

Different phases connectable

No

With bus connection

Yes

Bus module detachable

Yes

Min. depth of built-in installation box

18 mm

Modular expandability

No

Country of origin

Czechia

HS Code

8536.50

• EAN 4015081695300
• SAP 1000688834
• Code 81158577
