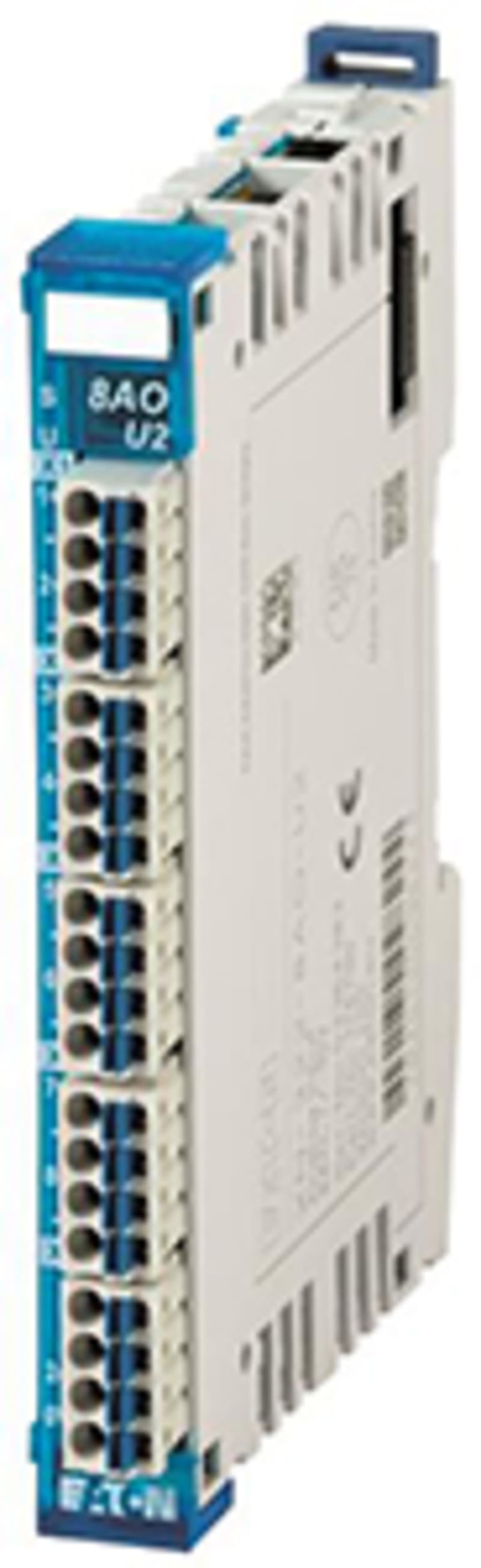

Analog output module; 8 analog outputs

Eaton 178790 Analog input and output module; 4 analog inputs and 4 analog outputs; +/-10 V; Uref.

Manufacturer part number (MPN)

178790

EAN / GTIN

7640130098244

Sales unit

pcs

Eaton catalogue number

178790

Depth

104.2 mm

Height

16.8 mm

Width

80.3 mm

Weight

0.059 kg

Certifications

cULus; CE; UL File No.: E135462; EN 61131-2; EN 61000-6-2; EN 61000-6-4; UL508; CSA-C22.2 No. 142-M

Catalog Notes

The max. heat dissipation is specified as the maximum power produced inside the device's housing.

Height of fall (IEC/EN 60068-2-32) - max

1 m

Mounting position

Horizontal

Shock resistance

15 g, Mechanical, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-20 °C

Climatic proofing

Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3

Environmental conditions

Condensation: prevent with appropriate measures

Relative humidity

0 - 95 % (non-condensing)

Connection type

2 conductors, Analog outputs, Output voltage; Push-in spring-cage terminal (plug-in connection), Connection design in TOP direction

Protocol

Other bus systems

Heat dissipation per pole, current-dependent Pvid

0.994 W

Static heat dissipation, non-current-dependent Pvs

1.435 W

Rated operational current (Ie)

0.044 A (supply input)

Rated operational voltage

24 V (X5); 160 V (terminations)

Short-circuit current

25 mA, per channel, Analog outputs

Short-circuit protection

Yes, Short-circuit strength, Analog outputs

Supply voltage at DC - max

30 VDC

Supply voltage at DC - min

18 VDC

Air discharge

8 kV

Burst impulse

1 kV, Signal cable; 2 kV, Supply cable

Contact discharge

4 kV

Electromagnetic fields

1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3); 10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)

Emitted interference

47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency); 40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)

Radiated RFI

10 V

Surge rating

1 kV, Signal cable, unbalanced, EMC; 0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC

Voltage dips

Voltage dips: 10 ms/Voltage fluctuations: Yes

Electric connection type

Plug-in connection

Features

Output, voltage; Analog outputs configurable; Fieldbus connection over separate bus coupler possible; Fieldbus connection over separate bus coupler possible

Current consumption

None mA (typ.), for +24 V, Power supply - Input; 55 mA (typ.), for +5 V power supply (internal), Power supply - Input

Degree of protection

IP20; NEMA 1

Mounting method

Rail mounting possible

Number of channels

8, Analog Outputs

Overvoltage category

III

Pollution degree

3

Product category

XN-322 analog output module

Resolution

12 Bit (Analog outputs)

Type

XN300 I/O slice module

Used with

XN-312-…; XN300

Voltage type

DC

Accuracy

± 0.5 % of full scale, Analog outputs

Capacitive load

0.1 µF, Analog outputs

Load current

Not specified by plug manufacturer

Number of inputs (analog)

0

Number of outputs (analog)

8

Output

8 Voltage Outputs (-10 - 10 V, ± 0.5% of final value, readings displayed in mV, 12-bit, 5 mV resolution); 8 Analog Outputs (± 10 V)

Output voltage

-10 - 10 V DC (analog outputs)

Refresh time

1 ms (analog inputs, all channels)

Resistive load

> 5000 Ω, analog outputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Power supply

Input

no

Gauge pin

A1 (according to IEC/EN 60947-1)

Insulating material group

I

Stripping length (main cable)

10 mm

Power consumption

1.4 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

18–30 V

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Output, current

No

Output signal configurable

No

Resolution of the analogue outputs

12 Bit

Number of analogue outputs

8

Analogue inputs configurable

No

Analogue outputs configurable

Yes

Number of HW-interfaces other

1

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

HS Code

8538.90

• EAN 7640130098244
• SAP 1200303856
• Code 82277490
