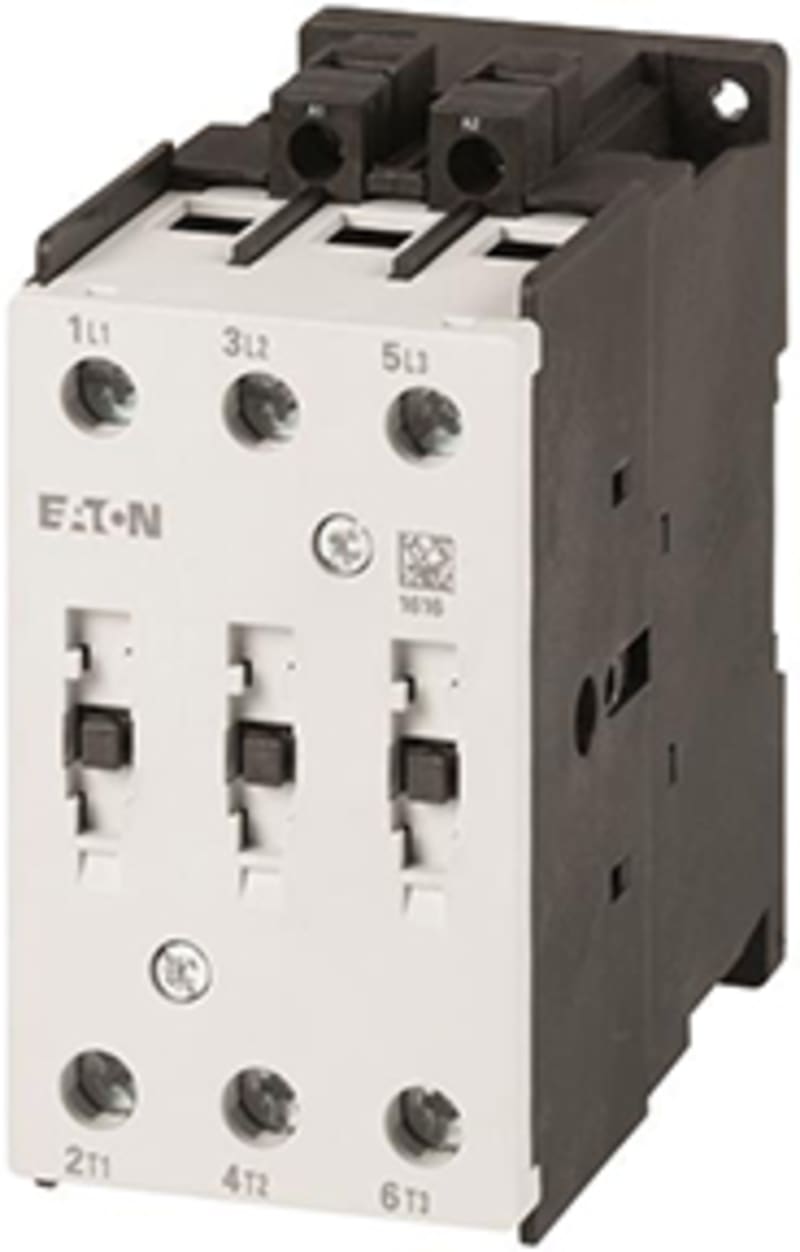

Eaton DILMT65 3-Pole Contactor, 30 kW at 400 V, 24 V AC Coil

Eaton DILMT65(24V50/60HZ) contactor, 3 pole, 380 V 400 V: 30 kW, 24 V 50/60 Hz, AC operated, screw terminals.

Manufacturer part number (MPN)

DILMT65(24V50/60HZ)

EAN / GTIN

4015081945009

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

197621

Depth

108.1 mm

Height

103.6 mm

Width

55 mm

Weight

0.776 kg

Certifications

GB14048; IEC/EN 60947; EN 60335-1

Catalog Notes

Not suitable for motors with efficiency class IE3.

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated breaking capacity at 380/400 V

520 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

80 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

65 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

65 A

Rated operational power at AC-3, 380/400 V, 50 Hz

30 kW

Rated operational power at AC-3, 690 V, 50 Hz

35 kW

Rated operational voltage (Ue) at AC - max

690 V

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Connection to SmartWire-DT

No

Degree of protection

IP20

Frame size

FS3

Lifespan, electrical

900,000 Operations (at 400V, AC-3)

Lifespan, mechanical

5,000,000 Operations (AC operated)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Rated impulse withstand voltage (Uimp)

6000 V AC

Used with

DILMT95-XHI11-SR and DILT-XHI01(10)

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

AC

Pick-up voltage

0.85 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

220 VA, Dual-frequency coil in a cold state and 1.0 x Us; 0 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

220 VA, Dual-frequency coil in a cold state and 1.0 x Us; 0 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

0 W, Dual-frequency coil in a cold state and 1.0 x Us; 6 W, Coil in a cold state and 1.0 x Us; 5 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

5 W, Dual-frequency coil in a cold state and 1.0 x Us; 0 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 0 W, Dual-frequency coil in a cold state and 1.0 x Us; 20 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

24 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

24 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Screw size

M3.5, Terminal screw; M6, Terminal screw

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 2, Terminal screw, Control circuit cables, Pozidriv screwdriver

Stripping length (control circuit cable)

14 mm

Stripping length (main cable)

14 mm

Terminal capacity (solid)

1 x (2.5 - 25) mm², Main cables; 1 x (0.75 - 2.5) mm²; 2 x (2.5 - 16) mm², Main cables; 2 x (0.75 - 2.5) mm²

Terminal capacity (stranded)

2 x (2.5 - 16) mm²; 1 x (2.5 - 25) mm²

Tightening torque

1.2 Nm, Screw terminals; 2.5 Nm

HS Code

8536.90
