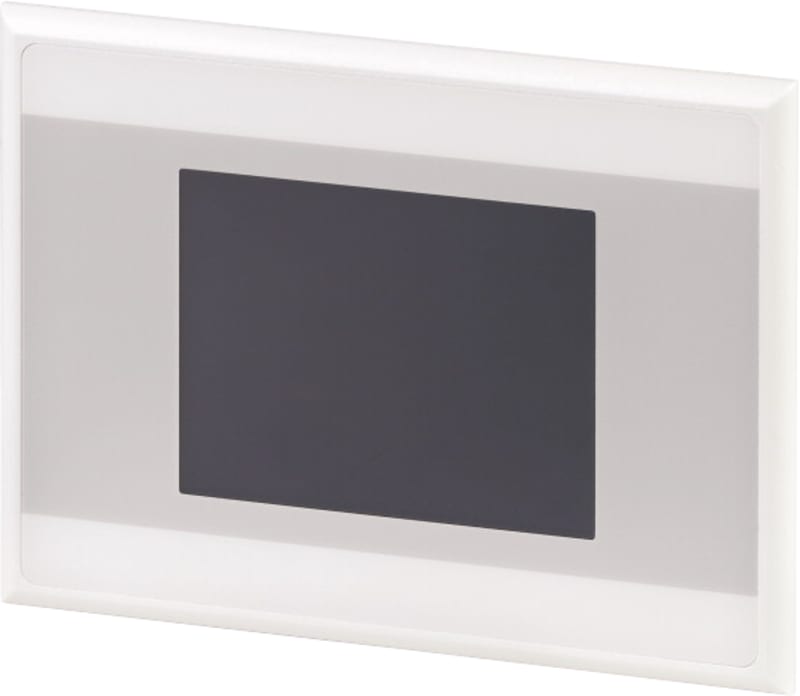

XV-102-B4-35TQR-10 (XV102B435TQR10)

Eaton XV102B435TQR10 Touch display.

Manufacturer part number (MPN)

XV102B435TQR10 EAN / GTIN: 7640130095540 Sales unit: pcs Power consumption: 5 W Certified for UL hazardous location division 1: No Certified for UL hazardous location division 2: No Certified for UL hazardous location group A (acetylene): No Certified for UL hazardous location group B (hydrogen): No Certified for UL hazardous location group C (ethylene): No Certified for UL hazardous location group D (propane): No Certified for UL hazardous location group E (metal dusts): No Certified for UL hazardous location class I: No Certified for UL hazardous location class II: No Certified for UL hazardous location class III: No Supporting protocol for EtherCAT: No Supply voltage DC: 20.4–28.8 V Voltage type (supply voltage): DC Number of HW-interfaces industrial Ethernet: 1 Number of HW-interfaces RS-485: 1 Number of HW-interfaces USB: 1 With SW interfaces: Yes Supporting protocol for TCP/IP: Yes Supporting protocol for PROFIBUS: No Supporting protocol for CAN: No Supporting protocol for INTERBUS: No Supporting protocol for ASI: No Supporting protocol for KNX: No Supporting protocol for Modbus: Yes Supporting protocol for Data-Highway: No Supporting protocol for DeviceNet: No Supporting protocol for SUCONET: No Supporting protocol for LON: No Supporting protocol for PROFINET IO: No Supporting protocol for PROFINET CBA: No Supporting protocol for SERCOS: No Supporting protocol for Foundation Fieldbus: No Supporting protocol for EtherNet/IP: Yes Supporting protocol for AS-Interface Safety at Work: No Supporting protocol for DeviceNet Safety: No Supporting protocol for INTERBUS-Safety: No Supporting protocol for PROFIsafe: No Supporting protocol for SafetyBUS p: No Supporting protocol for other bus systems: Yes Radio standard Bluetooth: No Radio standard WLAN 802.11: No Radio standard GPRS: No Radio standard GSM: No Mobile communications standard 3G (UMTS): No IO link master: No Type of display: TFT Colour display: Yes Number of colours of the display: 65536 Screen diagonal: 3.5 inch Number of pixels, horizontal: 320 Number of pixels, vertical: 240 Usable project memory/user memory: 64000 kByte With numeric keyboard: Yes With alpha numeric keyboard: Yes Number of system buttons: 1 Touch technology: Resistive touch With touch screen: Yes With message indication: Yes With message system (incl. buffer and confirmation): Yes Process value representation (output) possible: Yes Process default value (input) possible: Yes With recipes: Yes Number of password levels: 200 With printer output: Yes Number of online languages: 100 Additional software components, loadable: Yes Degree of protection (IP), front side: IP65 Operating temperature: 0–50 °C Suitable for rail mounting: No Wall mounting/direct mounting: No Suitable for safety functions: No Width of the front: 136 mm Height of the front: 100 mm Built-in depth: 25 mm Country of origin: Czechia

HS Code

8537.10

• EAN 7640130095540
• SAP 1000363006
• Code 8831368
