Eaton

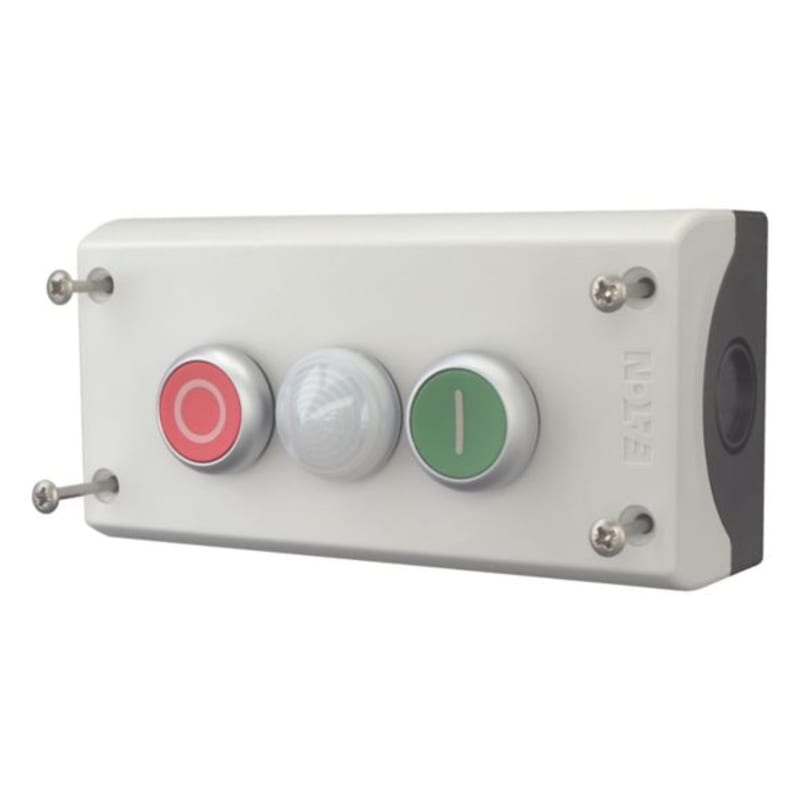

BOX with 2 Buttons+luminaire 230V
Part numberM22-I3-M2EAN / GTIN4015082165338HS code8543.70
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-I3-M2 Box with 2 Buttons+Luminaire 230V.
Technical Specifications
- Manufacturer part number (MPN)
- M22-I3-M2
- EAN / GTIN
- 4015082165338
- HS code
- 8543.70
- Sales unit
- pcs
- Eaton catalogue number
- 216533
- Depth
- 80 mm
- Height
- 70 mm
- Width
- 153 mm
- Weight
- 0.317 kg
- Certifications
- CSA; CSA Class No.: 3211-03; CSA File No.: 012528; CSA-C22.2 No. 94-91; CE; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; IEC/EN 60947; IEC/EN 60947-5; UL; UL 508; UL File No.: E29184; VDE 0660
- Actuating force
- 5 N
- Actuator color
- Red/white/green
- Actuator function
- Momentary
- Actuator travel and actuation force (DIN EN 60947-5-1)
- 4.8 mm
- Bezel color
- Titanium
- Design
- Enclosure
- Enclosure color
- Gray
- Enclosure material
- Plastic
- Inscription
- Inscribed
- Knob travel
- 5.7 mm
- Knockouts
- 2 x M20 (cable entry knockouts at the base); 2 x M25/20 (cable entry knockouts at the side)
- Light color
- White
- Number of command positions
- 3
- Number of locations
- 2
- RAL-number
- 7035
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Equipment heat dissipation, current-dependent Pvid
- 0 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Static heat dissipation, non-current-dependent Pvs
- 1 W
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 264 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 85 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 264 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 85 V
- Degree of protection
- IP67/IP69K; NEMA 4X, 13
- Lifespan
- 5,000,000 mechanical Operations
- Mounting position
- As required
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 153 x 80 mm
- Type
- Indicator lights Pushbutton actuator
- Rated conditional short-circuit current (Iq)
- 1 kA
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4015082165338
- SAP 1000032071
- Code 8508931
Product Documentation
Document preview: BOX M/2 BUTTONS+LUMINAIRE 230V (M22-I3-M2) — Specification Data Sheet (OEM)
