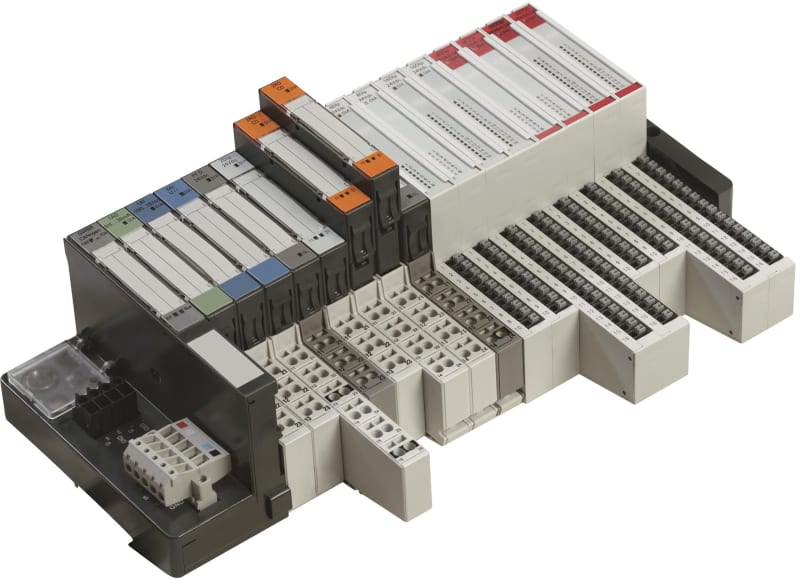

BUS Refereshing MOD.24VDC

Eaton BUS Refereshing MOD.24VDC (part number XN-BR-24VDC-D) is listed under Control & Automation / PLCs & Logic Relays. Sales unit: pcs; Eaton catalogue number: 140071; Depth: 55.4 mm; Height: 74.1 mm; Width: 12.6 mm; Weight: 0.037 kg.

Manufacturer part number (MPN)

XN-BR-24VDC-D

EAN / GTIN

7640130120518

Sales unit

pcs

Eaton catalogue number

140071

Depth

55.4 mm

Height

74.1 mm

Width

12.6 mm

Weight

0.037 kg

Compliances

RoHS Compliant; CE Marked

Certifications

UL Listed; IEC/EN 61000-6-4; UL report applies to both US and Canada; UL 508; CE; Certified by UL for use in Canada; CSA Class No.: 2252-01

2252-81; IEC/EN 61131-2; UL Category Control No.

NRAQ

NRAQ7; cULus; UL File No.

E205091; UL Recognized; CSA-C22.2 No. 142; IEC/EN 61000-6-2; IEC/EN 6113-2

Catalog Notes

System power supply 24 V DC for generation of power for module bus and gateway (XN-GW-... )

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Continuous according to IEC/EN 60068-2-29; Mechanical, According to IEC/EN 60068-2-27

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Environmental conditions

Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation); Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)

Relative humidity

5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)

Field voltage

24 V DC (UL)

Number of bytes

4 diagnostic bytes

Protocol

Other bus systems

Static heat dissipation, non-current-dependent Pvs

1.3 W

Power loss

Normally 1.3 W

Rated insulation voltage (Ui)

500 V

Supply current

1.5 A, IMB, Maximum system supply current, Supply modules; 10 A, IEI, Maximum operating current, Supply modules

Supply voltage at AC

Supply voltage at AC

Supply voltage at DC - max

30 VDC

Supply voltage at DC - min

18 VDC

Air discharge

According to EN 61000-4-2

Burst impulse

According to IEC/EN 61000-4-4

Electromagnetic fields

According to IEC EN 61100-4-2

Emitted interference

30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3); 230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)

Radiated RFI

IEC/EN 61100-4-6

Surge rating

According to IEC/EN 61000-4-5 Level 4

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Electric connection type

Screw-/spring clamp connection

Features

Fieldbus connection over separate bus coupler possible

Fitted with

Potential separation

Functions

Bus diagnosis possible

Admissible range

18 - 30 V DC, Supply module

Degree of protection

IP20

Mounting method

Rail mounting possible

Product category

XN Slice module

Residual ripple

< 5 % (according to EN 61131-2)

Suitable as

Segment module

Suitable for

Base modules without C-Connection: 2-/3-wire; Base modules with C-connection: 4-wire

Type

XI/ON power supply module

Used with

XN-P3T-SBB; XN-P3S-SBB; XN-P4S-SBBC-B; XN-P4S-SBBC, XN-P3T-SBB-B; XN-P4T-SBBC; XN-P4T-SBBC-B; XN-P3S-SBB-B; XN-P4S-SBBC; XN-P3T-SBB-B

Voltage type

DC

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Through optocoupler: yes

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

18–30 V

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

System accessory

Yes

Type of electric connection

Screw-/spring clamp connection

With potential separation

Yes

With power supply module

No

Suitable as segment module

Yes

Remote module

No

Fieldbus connection over separate bus coupler possible

Yes

Bus diagnosis possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Germany

HS Code

8536.90

• EAN 7640130120518
• SAP 1200563163
• Code 82903867
