Signal -,+ BASE F/3-WIRE Conne

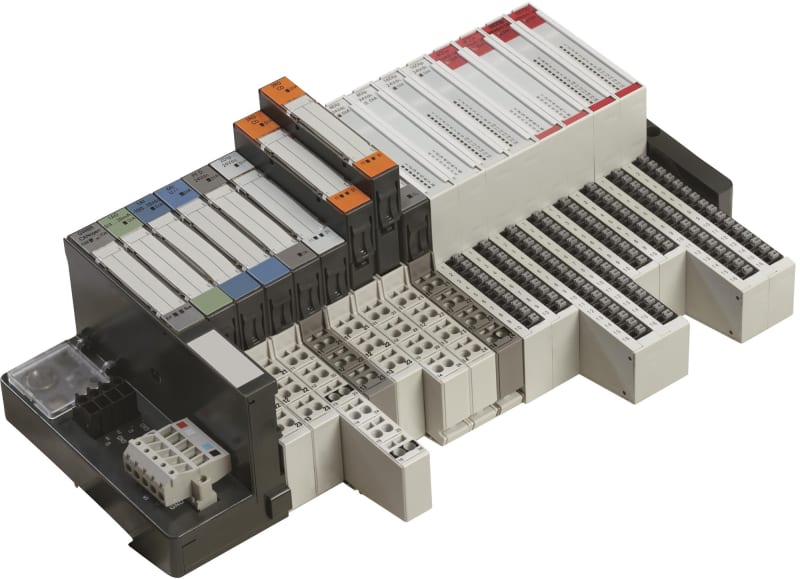

Eaton Signal -,+ BASE F/3-WIRE Conne (part number XN-S3T-SBB) is listed under Cables & Wiring / Installation Cables. HS code: 8544.42; Sales unit: pcs; Eaton catalogue number: 140077; Depth: 117.6 mm; Height: 49.9 mm; Width: 12.6 mm.

Manufacturer part number (MPN)

XN-S3T-SBB

EAN / GTIN

7640130121157

HS code

8544.42

Sales unit

pcs

Eaton catalogue number

140077

Depth

117.6 mm

Height

49.9 mm

Width

12.6 mm

Weight

0.031 kg

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Mechanical, According to IEC/EN 60068-2-27; Continuous according to IEC/EN 60068-2-29

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

0 °C

Environmental conditions

Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation); Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)

Relative humidity

5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)

Connection type

Spring-loaded/screw terminal, Connection design in TOP direction

Number of slots

1

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

0 A

Static heat dissipation, non-current-dependent Pvs

0 W

Air discharge

Air/contact discharge according to IEC/EN 61000-4-2

Burst impulse

According to IEC/EN 61000-4-4

Electromagnetic fields

According to IEC EN 61100-4-2

Emitted interference

230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3); 30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3)

Radiated RFI

IEC/EN 61100-4-6

Surge rating

According to IEC/EN 61000-4-5 Level 4

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Fitted with

Pluggable modules, digital I/O; Pluggable modules, analog I/O; Power supply; Pluggable modules, central modules

Degree of protection

IP20

Mounting method

Rail mounting possible

Number of connection levels

3

Type

XI/ON slice card base module

Used with

XN-2AO-U (-10 - 10 V DC); XN-2DI-24VDC-N; XN-2AI-I(0 - 20 mA); XN-1AI-I(0 - 20 mA); XN-2AI-U (-10 - 10 V DC); XN-2AO-I(0 - 20 mA); XN-2DI-120/230VAC; XN-1AI-U (-10 - 10 V DC); XN-1AO-I(0 - 20 mA); XN-2DI-24VDC-P; XN-2AI-PT/NI-2/3

Voltage type

DC

Input voltage at AC 50 Hz - min

0 V

Input voltage at DC - min

0 V

Output voltage at DC - min

0 V

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Through optocoupler: yes

Gauge pin

A1 (according to IEC/EN 60947-1)

Stripping length (main cable)

8 mm

Terminal capacity

0.5 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight); 0.5 - 1.5 mm², flexible without ferrule, H07V-K; 0.5 - 2.5 mm², solid, H07V-U; 0.5 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)

HS Code

8544.42

• EAN 7640130121157
• SAP 1200563183
