Eaton

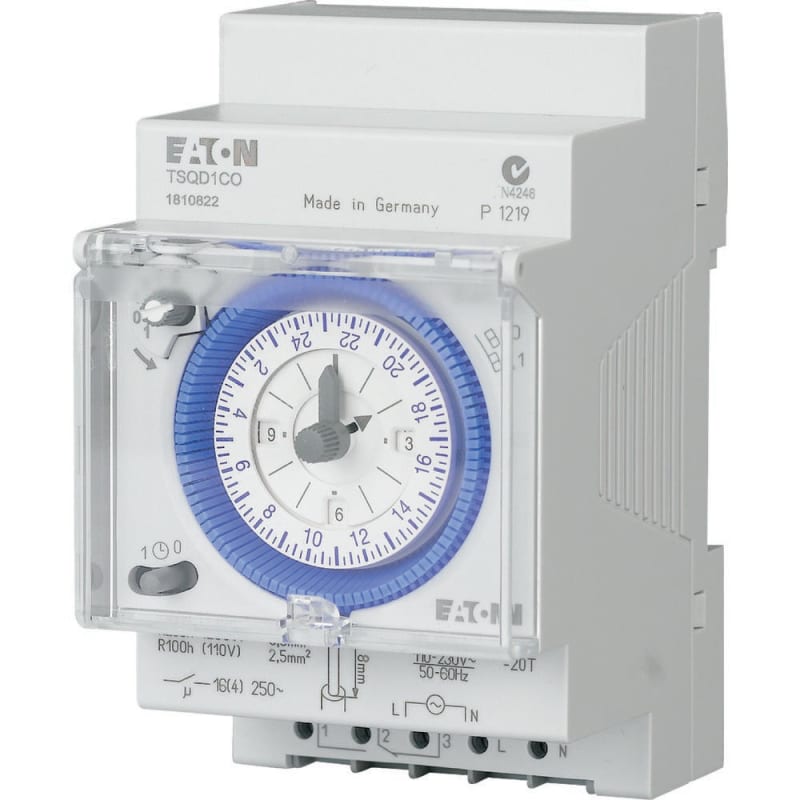

Quartz dagsur 1 channel (167390)
Part number167390EAN / GTIN4015081639205HS code8536.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 167390 Series connection time switch 24 hrs., series connection time switch, autonomy, 3 TLE.
Technical Specifications
- Manufacturer part number (MPN)
- 167390
- EAN / GTIN
- 4015081639205
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 167390
- Depth
- 65.6 mm
- Height
- 90 mm
- Width
- 54 mm
- Weight
- 0.12 kg
- Compliances
- RoHS conform
- Mounting method
- DIN rail
- Equipment heat dissipation, current-dependent
- 0 W
- Number of channels
- 1
- Accuracy per day
- 1 s
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -20 °C
- Autonomy in hours
- 200 hour
- Autonomy in years
- 0 year
- Frequency supply voltage - max
- 60 Hz
- Frequency supply voltage - min
- 45 Hz
- Heat dissipation capacity
- 0 W
- Heat dissipation per pole, current-dependent
- 0 W
- Nominal switching current at 250 V AC
- 16 A
- Contact type
- Change-over contact
- Degree of protection
- IP20
- Functions
- Potential free switch contact; Switching preselection; 24 h program; Quartz controlled; Manual operation
- Voltage type
- AC
- Shortest switching time at channel 1
- 15 min; 1 min
- Shortest switching time at channel 2
- 0 min
- Program shift divide 1
- 15 min
- Rated operational current for specified heat dissipation (In)
- 0 A
- Switching power LED - max
- 600 W
- Static heat dissipation, non-current-dependent
- 0.5 W
- Supply voltage - max
- 230 V
- Supply voltage - min
- 110 V
- Width in number of modular spacings
- 3
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081639205
- SAP 1200237639
- Code 82210759
Product Documentation
Document preview: Quartz dagsur 1 channel (167390) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton FAZT-C32/1N Miniature Circuit Breaker — 1P+N, Type C, 32 A, 25 kA
Eaton
Position Switch, LS-11DA
292361
Eaton
P3 Main switch, 80 A,4 pole, Form V/SVB
1414069
Eaton
Eaton FRCMM-80/4/03-G/A (170306)
Eaton
Cover CLEAR 380X190X80
EKM80-T
Eaton

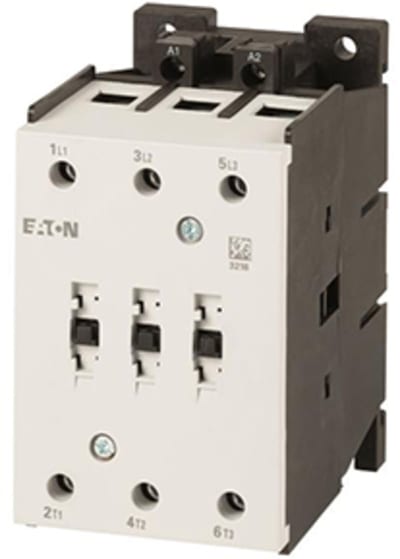

Eaton Contactor 3-Pole 37 kW 24 V 50/60 Hz (DILMT80(24V50/60HZ))
Eaton

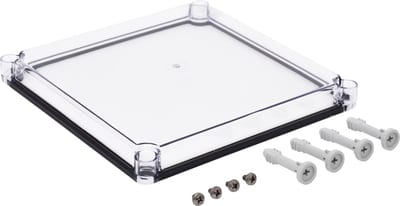

Cover CLEAR 280X280X30
EKO30-T
Eaton

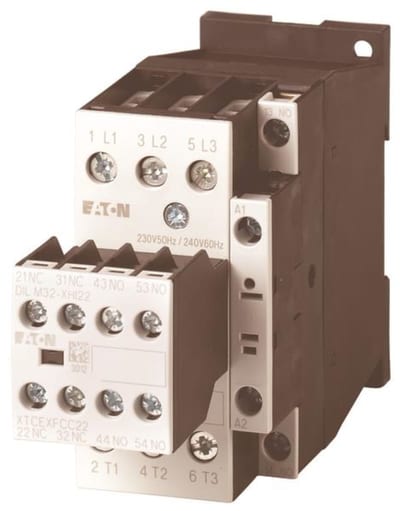

Contactor, DILM32-32(230V50HZ) (DILM32-32(230V50HZ,240V60HZ))
