Output module, XNE-4AO-U/In

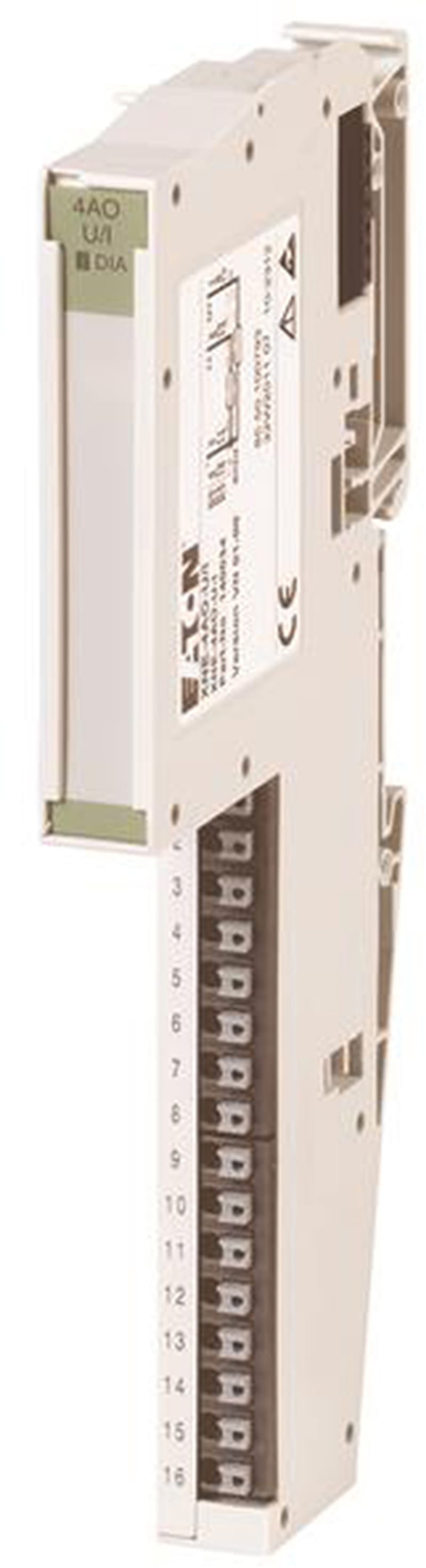

Eaton XNE-4AO-U/I Analog Output Module XI/ON ECO, 24 V DC, 4A(voltage, current).

Manufacturer part number (MPN)

XNE-4AO-U/I

EAN / GTIN

7640130095304

Sales unit

pcs

Eaton catalogue number

140034

Depth

161.5 mm

Height

74.5 mm

Width

13 mm

Weight

0.064 kg

Certifications

cULus; IEC/EN 61131-2; CE; IEC/EN 61000-6-4; Rated data for terminations according to IEC/EN 60947-7-1; IEC/EN 6113-2; IEC/EN 61000-6-2

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Continuous according to IEC/EN 60068-2-29; Mechanical, According to IEC/EN 60068-2-27

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Environmental conditions

Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation); Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)

Relative humidity

5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)

Connection type

Push-In spring-cage terminals, Connection design in TOP direction

Protocol

Other bus systems

Equipment heat dissipation, current-dependent Pvid

3 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

0 A

Static heat dissipation, non-current-dependent Pvs

3 W

Power loss

3 W

Rated operational voltage

24 V DC (supply terminal)

Supply voltage at AC, 50 Hz - min

0 VAC

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Short-circuit current

40 mA, Analog output modules

Air discharge

According to EN 61100-4-2

Burst impulse

According to IEC/EN 61000-4-4

Contact discharge

According to EN 61100-4-2

Electromagnetic fields

According to IEC EN 61100-4-2

Emitted interference

230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3); 30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3)

Radiated RFI

IEC/EN 61100-4-6

Surge rating

According to IEC/EN 61000-4-5 Level 4

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Electric connection type

Plug-in connection

Features

Analog outputs configurable; Output, current; Fieldbus connection over separate bus coupler possible; Output, voltage; Output signal configurable

Current consumption

40 mA, from module bus, Analog input modules; 150 mA, from supply terminal

Degree of protection

IP20; NEMA 1

Mounting method

Rail mounting possible

Product category

XNE Slice module

Type

XI/ON I/O module

Voltage type

DC

Number of channels

4

Frequency

20 Hz (Transfer)

Load resistance

< 450 Ω (Current); > 1 µF (capacitive load); < 0.001 h (inductive load); > 1000 Ω (Voltage)

Measured value representation

Standard/extended range/PA (NE43); 16-bit signed integer; 12-bit full range, flush left

Measured variables

Current; Voltage

Number of inputs (analog)

0

Number of outputs (analog)

4

Output

4 Analog Outputs

Output current

0/4 - 20 mA

Output voltage

-10 - 10 V DC

Settling time

2 ms, Inductive load, Analog output modules; 1 ms, Resistive load, Analog output modules; 2 ms, Capacitive load, Analog output modules

Timing cycle

0.1 % Offset error

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Through optocoupler: yes

Gauge pin

A1 (according to IEC/EN 60947-1)

Stripping length (main cable)

8 mm

Terminal capacity

0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight); 0.25 - 1.5 mm², flexible without ferrule, H07V-K; 0.25 - 1.5 mm², solid, H07V-U; 0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
