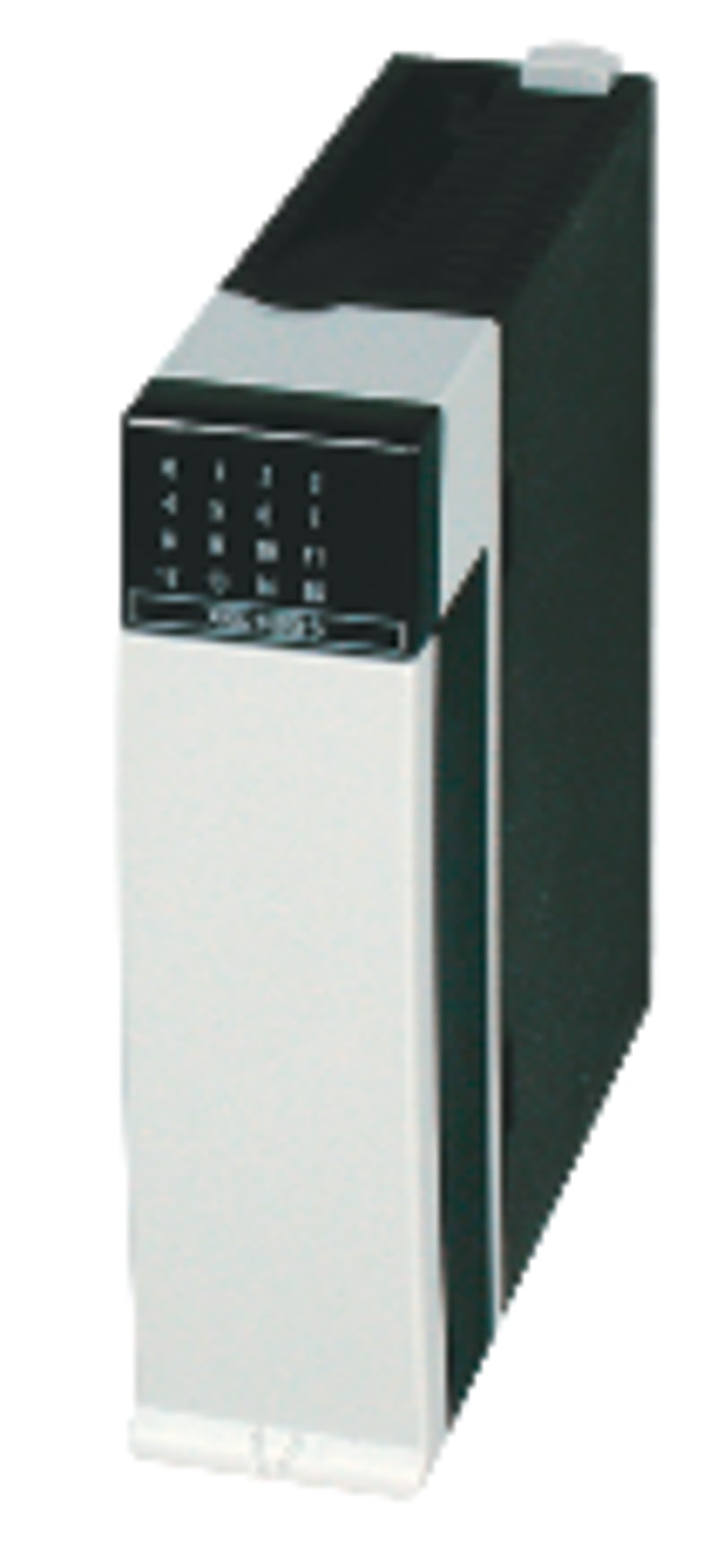

Master module (XIOC-NET-SK-M)

Eaton Master module (XIOC-NET-SK-M) is listed under Control & Automation / PLCs & Logic Relays. Sales unit: pcs; Eaton catalogue number: 289982; Depth: 100 mm; Height: 95 mm; Width: 30 mm; Weight: 0.145 kg.

Manufacturer part number (MPN)

XIOC-NET-SK-M

EAN / GTIN

4015082899820

Sales unit

pcs

Eaton catalogue number

289982

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.145 kg

Certifications

CE; CSA-C22.2 No. 142-M; UL508; CSA Class No.: 2252-01; CSA-C22.2 No. 0-M; UL; EN 50178; UL Category Control No.: NRAQ; UL File No.: E135462; IEC/EN 61131-2; CSA; CSA File No.: 012528

Catalog Notes

Suconet K master module

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

10 - 57 Hz, ± 0.075 mm; 57 - 150 Hz ± 1.0 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-20 °C

Bus termination

Switchable

Data transfer rate

Transmit/Receive data: 250 Bytes per COM; 187.5 or 375 kBit/s

Interfaces

RS485 (built-in); Number of active interfaces/modules: 1

LED indicator

Status indication of Bus diagnostics: LED

Number of modules

4 (XC200); 2 (XC100); 16 (slaves)

Number of slots

As required

Protocol

SUCONET

Plug type

Plug-in terminal block

Static heat dissipation, non-current-dependent Pvs

6.6 W

Power loss

6.6 W

Rated operational voltage

24 (12) V DC

Supply voltage

20.4 – 28.8 (11.8 – 14.4) V DC, Admissible range, Power supply

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Fitted with

Potential separation

Functions

Master

Current consumption

275 mA (Ie), Interfaces; 275 mA, Interfaces

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection class

1

Repetition rate

1 s

Residual ripple

≤ 5 %

Resistance

500 g/⌀ 50 mm ±25 g (impact resistance)

Type

Communication module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Interfaces: yes

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of HW-interfaces RS-485

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

Yes

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Type of data transmission

Serial

Transmission rate

375 kBit/s

With potential separation

Yes

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Germany

HS Code

8538.90
