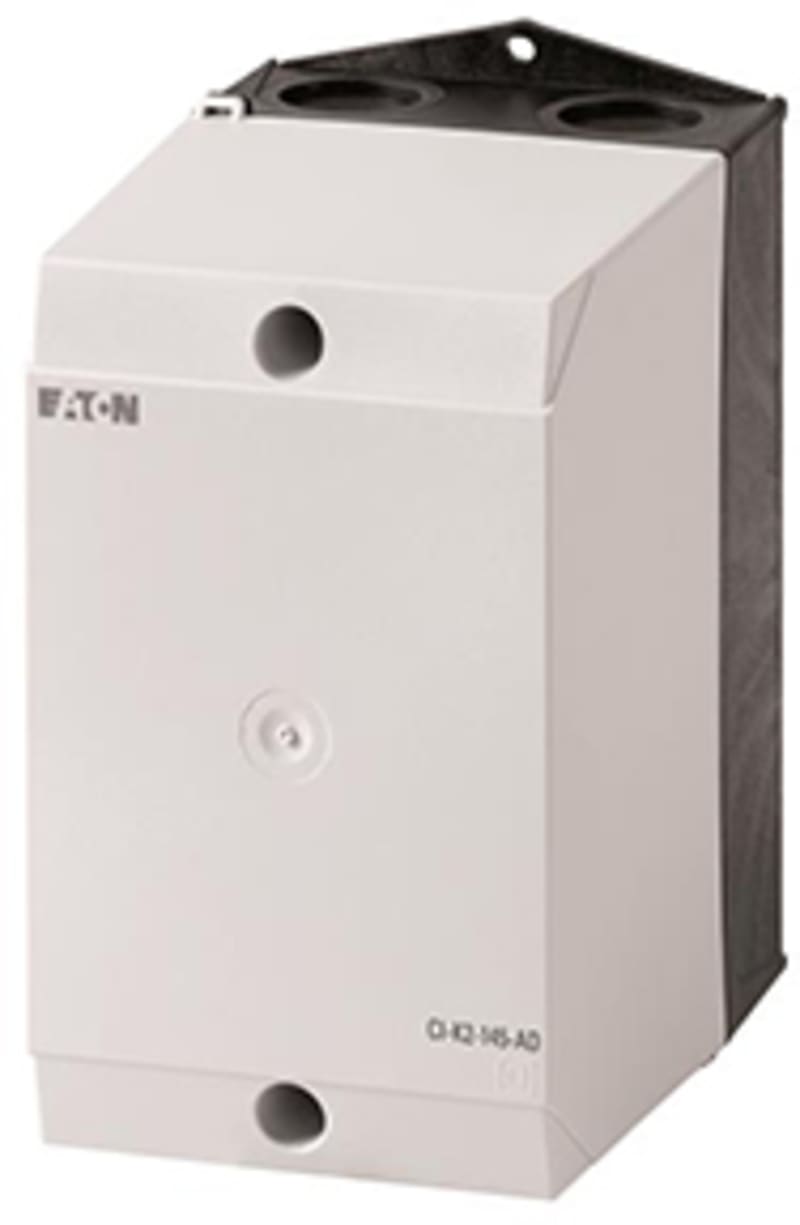

Insulated enclosure CI-K2-145-AD

Eaton CI-K2-145-AD Insulated enclosure, H×W×D=160x100x145mm, +komponentadapter DILE+ZE.

Manufacturer part number (MPN)

CI-K2-145-AD

EAN / GTIN

4015082076320

Sales unit

pcs

Eaton catalogue number

207632

Depth

145 mm

Height

180 mm

Width

100 mm

Weight

0.46 kg

Certifications

IEC/EN 60529; DIN EN 62208; UL94: HB; UL94: VO/1.5 mm thickness; IEC 60068-2-11

Catalog Notes

Lamp indicator L‐… can be mounted in base knock-out M20/M25

Type

Basic enclosure

Features

UV resistance beneath protective shield; Halogen free

Fitted with

Adapter plate for contactors DILE motor-protective relay ZE; Control cable entry

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Enclosure material

1 Ω x 10¹³ (Surface resistance to IEC 60093); Plastic

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Heat dissipation capacity Pdiss

18.5 W

Mounting depth

124 mm

Mounting weight capacity - max

0.7 kg

Product category

Empty enclosures

Enclosure color

Light gray, Operator (RAL 7035); Black (RAL 9005); Light gray, Cover (RAL 7035)

Cover material

Glass-fiber reinforced polycarbonate

Degree of protection

IP65; NEMA Other

Model

Surface mounting

Dielectric strength

30 kV/mm, according to IEC 60243-1

Degree of protection (front side)

IP65

Temperature resistance

-40 - 80 °C (gasket); -40 - 120 °C (enclosure)

Suitable for

Emergency stop

Flammability characteristics

650 °C/1 mm thick (push-through membrane and seal material) to VDE 0471 Part 2); 960 °C/1 mm thickness (base, cover; glow wire to VDE 0471 Part 2)

Knockouts

Push-through cable entry diaphragm; Metric cable entry knockouts at the top, bottom and back plate

Impact resistance

IK06 (according to EN 50102)

Radiated heat dissipation with separate mounting

18.5 W (at an ambient temperature of 20 °C)

Surface treatment

Resistant to corrosion

Track resistance

CTI 175 (base, to IEC 60112); CTI 175 (cover, to IEC 60112)

Water consumption

0.29 % (According to DIN EN ISO 62)

With transparent cover

No

Suitable for emergency stop

Yes

Housing material

Plastic

Country of origin

United Kingdom

HS Code

8538.90
