Eaton

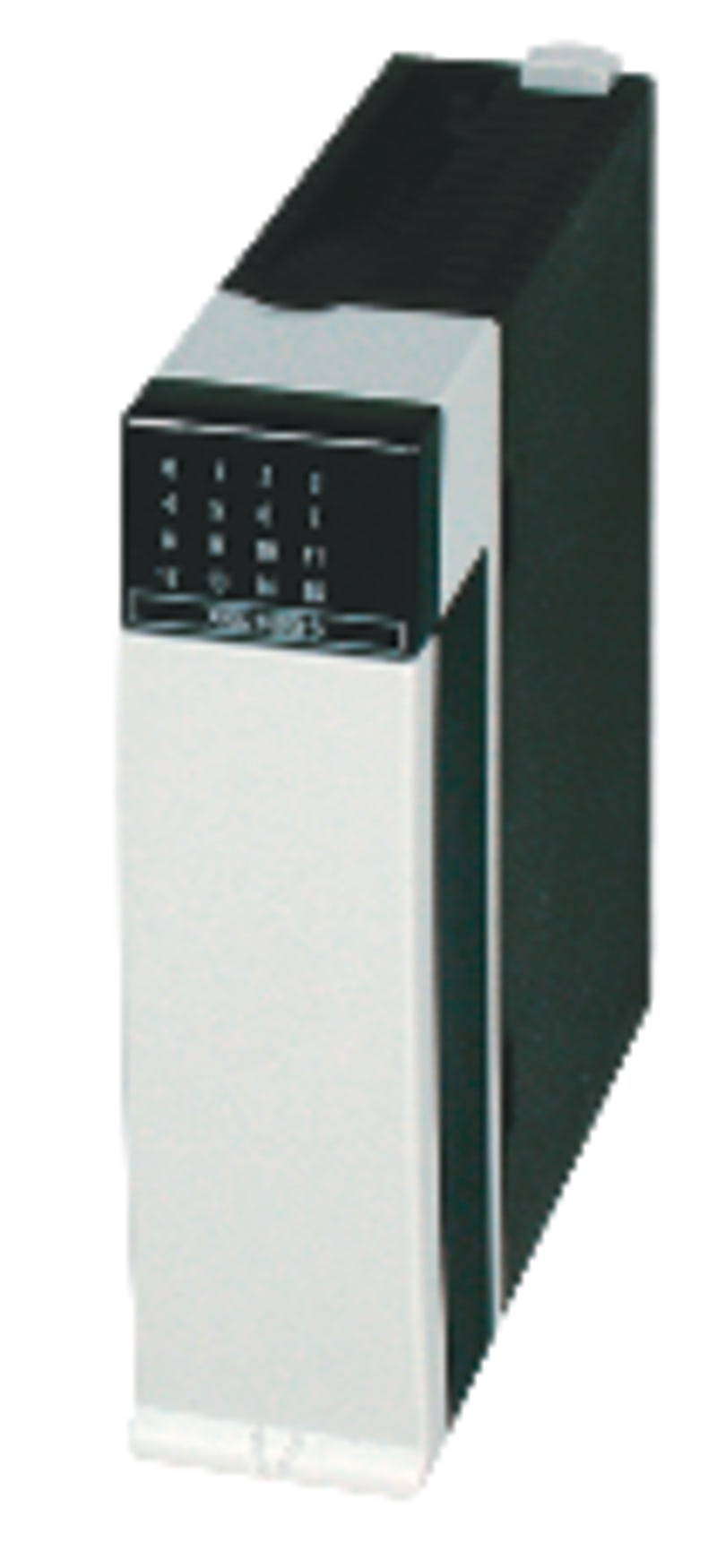

Serial Inerface RS232,422,485

Name: Serial Inerface RS232,422,485
Brand: Eaton
SKU: XIOC-SER

Part numberXIOC-SEREAN / GTIN4015082671914HS code8538.90

Control & Automation

PLCs & Logic Relays

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Overview

Eaton Serial Inerface RS232,422,485 (part number XIOC-SER) is listed under Control & Automation / PLCs & Logic Relays. Sales unit: pcs; Eaton catalogue number: 267191; Depth: 100 mm; Height: 95 mm; Width: 30 mm; Weight: 0.145 kg.

Technical Specifications

Manufacturer part number (MPN): XIOC-SER
EAN / GTIN: 4015082671914
Sales unit: pcs
Eaton catalogue number: 267191
Depth: 100 mm
Height: 95 mm
Width: 30 mm
Weight: 0.145 kg
Certifications: CSA File No.: 012528; UL File No.: E135462; CSA Class No.: 2252-01; UL; CSA; UL Category Control No.: NRAQ; CSA-C22.2 No. 142-M; IEC/EN 61131-2; CSA-C22.2 No. 0-M; CE; UL508; EN 50178
Shock resistance: 15 g, Mechanical, Shock duration 11 ms
Vibration resistance: 57 - 150 Hz ± 1.0 mm; 10 - 57 Hz, ± 0.075 mm
Ambient operating temperature - max: 55 °C
Ambient storage temperature - max: 70 °C
Ambient operating temperature - min: 0 °C
Ambient storage temperature - min: -20 °C
Addressing: Address range: 2 - 31
Bus termination: Switchable for RS485, RS422
Character formats: 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1
Connection type: 9-pole SUB-D connector (male), RS232; 6-pole spring-loaded terminal block, RS422/RS485
Interfaces: Number of active interfaces/modules: 1; RTS, CTS, DTR, DSR, DCD (Operating mode Transparent mode, Control and signal cables, Analog control inputs); RS485; RS422; RS232(C), RS422, RS485 (built-in)
Number of bytes: 250 bytes (per Com)
Number of modules: 2 (XC100); 4 (XC200)
Number of slots: As required
Protocol: MODBUS; Other bus systems; RS485 (Interface); SUCONET
Plug type: RS485
422: plug terminal block; RS232: 9 pole SUB-D plug
Static heat dissipation, non-current-dependent Pvs: 6.6 W
Power loss: 6.6 W
Rated operational voltage: 24 (12) V DC
Supply voltage: 20.4 – 28.8 (11.8 – 14.4) V DC, Admissible range, Power supply
Emitted interference: Class A (according to DIN/EN 55011/22)
Voltage dips: 10 ms
Cable type: RTS, CTS, DTR, DSR, DCD
Current consumption: 275 mA (Ie), Interfaces; 275 mA, max. internal current consumption, Interface modules
Degree of protection: IP20
Overvoltage category: II
Pollution degree: 2
Protection class: 1
Repetition rate: 1 s
Residual ripple: ≤ 5 %
Resistance: 500 g/⌀ 50 mm ±25 g (impact resistance)
Type: Communication module RS232, RS 422, RS485, Interfaces
Used with: XC100/200 (expandable with up to 15 XI/OC modules)
Rapid counter inputs: 250 bytes per Com
Explosion safety category for dust: None
Explosion safety category for gas: None
Potential isolation: Interfaces (RS485
RS422): yes
Terminals: Optionally, screw terminals or spring-loaded terminals for digital/analog modules
Certified for UL hazardous location division 1: No
Certified for UL hazardous location division 2: No
Certified for UL hazardous location group A (acetylene): No
Certified for UL hazardous location group B (hydrogen): No
Certified for UL hazardous location group C (ethylene): No
Certified for UL hazardous location group D (propane): No
Certified for UL hazardous location group E (metal dusts): No
Certified for UL hazardous location class I: No
Certified for UL hazardous location class II: No
Certified for UL hazardous location class III: No
Supporting protocol for EtherCAT: No
Number of HW-interfaces RS-232: 1
Number of HW-interfaces RS-422: 1
Number of HW-interfaces RS-485: 1
With optical interface: No
Supporting protocol for TCP/IP: No
Supporting protocol for PROFIBUS: No
Supporting protocol for CAN: No
Supporting protocol for INTERBUS: No
Supporting protocol for ASI: No
Supporting protocol for KNX: No
Supporting protocol for Modbus: Yes
Supporting protocol for Data-Highway: No
Supporting protocol for DeviceNet: No
Supporting protocol for SUCONET: Yes
Supporting protocol for LON: No
Supporting protocol for PROFINET IO: No
Supporting protocol for PROFINET CBA: No
Supporting protocol for SERCOS: No
Supporting protocol for Foundation Fieldbus: No
Supporting protocol for EtherNet/IP: No
Supporting protocol for AS-Interface Safety at Work: No
Supporting protocol for DeviceNet Safety: No
Supporting protocol for INTERBUS-Safety: No
Supporting protocol for PROFIsafe: No
Supporting protocol for SafetyBUS p: No
Supporting protocol for other bus systems: Yes
Radio standard Bluetooth: No
Radio standard WLAN 802.11: No
Radio standard GPRS: No
Radio standard GSM: No
Mobile communications standard 3G (UMTS): No
IO link master: No
Redundancy: No
Type of data transmission: Serial
Transmission rate: 375 kBit/s
With potential separation: No
SIL according to IEC 61508: None
Suitable for safety functions: No
Performance level according to EN ISO 13849-1: None
Appendant operation agent (Ex ia): No
Country of origin: Germany

Standards & Compliance

HS Code: 8538.90

Cross References

EAN 4015082671914
SAP 1200607258
Code 82997818

Product Documentation

SERIAL INERFACE RS232,422,485 (XIOC-SER) — Specification Data Sheet (OEM)Download

Serial Inerface RS232,422,485 (xioc-Ser) — Specification sheet Download

Document preview: SERIAL INERFACE RS232,422,485 (XIOC-SER) — Specification Data Sheet (OEM)
