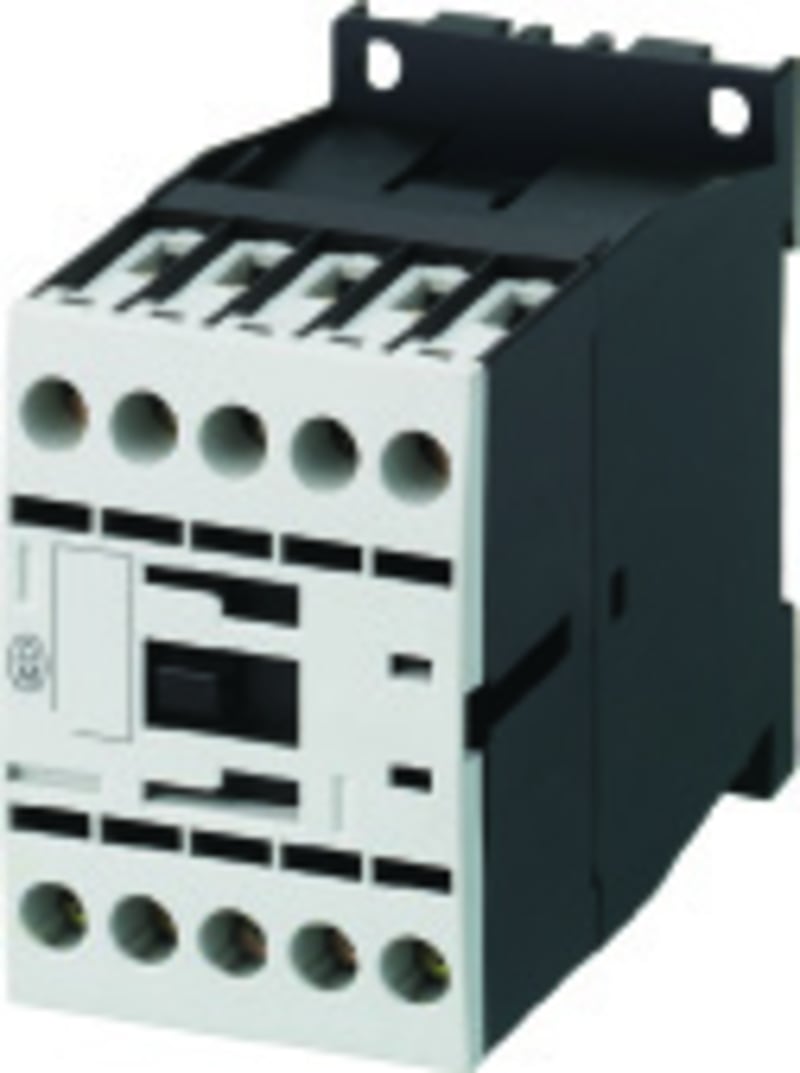

4-POLE.KONT.,20A/AC-1,AC Coil (DILMP20(24V50HZ))

Eaton DILMP20(24V50HZ) Contactor 4-pole, 20A AC1 24VAC.

Manufacturer part number (MPN)

DILMP20(24V50HZ)

EAN / GTIN

4015082769574

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

276957

Depth

75 mm

Height

68 mm

Width

45 mm

Weight

0.239 kg

Certifications

CE; UL; UL 60947-4-1; CSA File No.: 012528; IEC/EN 60947-4-1; UL File No.: E29096; UL Category Control No.: NLDX; CSA; IEC/EN 60947; VDE 0660; CSA-C22.2 No. 60947-4-1-14; CSA Class No.: 2411-03, 3211-04

Catalog Notes

Contacts according to EN 50012

Shock resistance

5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-3

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

4

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

54 A

Conventional thermal current Ith (3-pole, enclosed)

18 A

Conventional thermal current Ith at 55°C (3-pole, open)

20.5 A

Conventional thermal current Ith at 60°C (3-pole, open)

20 A

Conventional thermal current Ith of main contacts (1-pole, open)

60 A

Equipment heat dissipation, current-dependent Pvid

3 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

1 W

Rated operational current for specified heat dissipation (In)

22 A

Static heat dissipation, non-current-dependent Pvs

1.4 W

Rated breaking capacity at 220/230 V

120 A

Rated breaking capacity at 380/400 V

120 A

Rated breaking capacity at 500 V

100 A

Rated breaking capacity at 660/690 V

70 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

144 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

22 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

12 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

12 A

Rated operational current (Ie) at AC-3, 440 V

12 A

Rated operational current (Ie) at AC-3, 500 V

10 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

7 A

Rated operational current (Ie) at DC-1, 110 V

22 A

Rated operational current (Ie) at DC-1, 220 V

6 A

Rated operational current (Ie) at DC-1, 60 V

22 A

Rated operational power at AC-1, 220/230 V, 50 Hz

8 kW

Rated operational power at AC-1, 240 V, 50 Hz

9 kW

Rated operational power at AC-1, 380/400 V, 50 Hz

14 kW

Rated operational power at AC-1, 415 V, 50 Hz

15 kW

Rated operational power at AC-1, 440 V, 50 Hz

16 kW

Rated operational power at AC-1, 500 V, 50 Hz

18 kW

Rated operational power at AC-1, 690 V, 50 Hz

24 kW

Rated operational power at AC-3, 240 V, 50 Hz

4 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

5.5 kW

Rated operational power at AC-3, 415 V, 50 Hz

7 kW

Rated operational power at AC-3, 440 V, 50 Hz

7.5 kW

Rated operational power at AC-3, 500 V, 50 Hz

7 kW

Rated operational power at AC-3, 690 V, 50 Hz

6.5 kW

Rated operational voltage (Ue) at AC - max

690 V

Number of poles

Four-pole

Application

Contactors for 4 pole electric consumers

Connection

Screw terminals

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (AC operated); 10,000,000 Operations (DC operated)

Operating frequency

5000 mechanical Operations/h (AC operated); 5000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

2.5 mΩ

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Drop-out voltage

AC operated: 0.6 - 0.4 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC/DC x Us; 0.8 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

24 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

19 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 24 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

1.4 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

1.4 W, Dual-frequency coil in a cold state and 1.0 x Us; 4 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

24 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Switching time (AC operated, make contacts, closing delay) - max

21 ms

Switching time (AC operated, make contacts, closing delay) - min

15 ms

Switching time (AC operated, make contacts, opening delay) - max

18 ms

Switching time (AC operated, make contacts, opening delay) - min

9 ms

Safe isolation

400 V AC, Between the contacts, According to EN 61140; 400 V AC, Between coil and contacts, According to EN 61140

Short-circuit current rating (basic rating)

5 kA, 45 A max. fuse, SCCR (UL/CSA); 5 kA, 45 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 60 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 25 A CLASS RK5 max. fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 60 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 25 A CLASS RK5 max. fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

35 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

25 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

20 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

20 A gG/gL

Special purpose rating of elevator control

6.1 A, 600 V 60 Hz 3-ph, (UL/CSA); 5 HP, 600 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of refrigeration control (CSA only)

60 A, LRA 600 V 60 Hz 3phase; (CSA); 60 A, LRA 480 V 60 Hz 3phase; (CSA); 10 A, FLA 480 V 60 Hz 3phase; (CSA); 10 A, FLA 600 V 60 Hz 3phase; (CSA)

Special purpose rating of resistance air heating

20 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA); 20 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of tungsten incandescent lamps

14 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 14 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of ballast electrical discharge lamps

20 A (600V 60Hz 3phase, 347V 60Hz 1phase); 20 A (480V 60Hz 3phase, 277V 60Hz 1phase)

Switching capacity (main contacts, general use)

20 A, Maximum motor rating (UL/CSA)

Screw size

M3.5, Terminal screw

Screwdriver size

0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver; 2, Terminal screw, Pozidriv screwdriver

Stripping length (control circuit cable)

10 mm

Stripping length (main cable)

10 mm

Terminal capacity (solid)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 4) mm²

Tightening torque

1.2 Nm, Screw terminals

Terminal capacity (flexible with ferrule)

1 x (0.75 - 1.5) mm²; 2 x (0.75 - 1.5) mm²; 1 x (0.75 - 2.5) mm²; 2 x (0.75 - 2.5) mm²

Terminal capacity (solid/stranded AWG)

18 - 14

HS Code

8536.90

• EAN 4015082769574
• SAP 1000057633
• Code 8897850
