Eaton

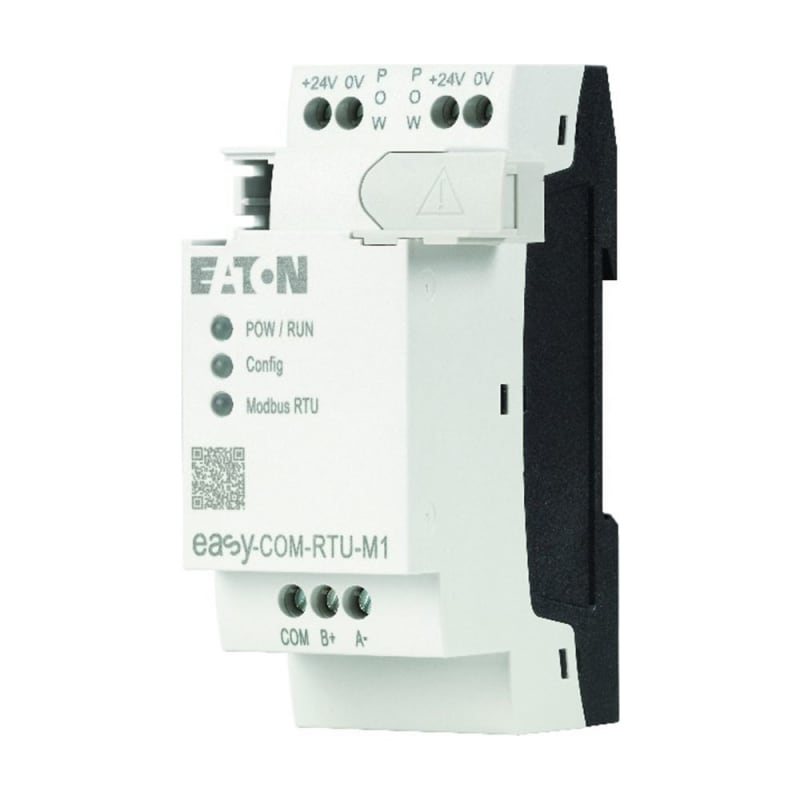

Accessories,EASY-COM-RTU-M1 (4500803)
Part number4500803HS code8517.62
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 4500803 Communication Module for connection of easy kontrollrele via Modbus RTU Server, screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 4500803
- Sales unit
- pcs
- El-nummer (NO)
- 4500803
- ETIM class
- SC001417
- Power consumption
- 1 W
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- Yes
- Certified for UL hazardous location group A (acetylene)
- Yes
- Certified for UL hazardous location group B (hydrogen)
- Yes
- Certified for UL hazardous location group C (ethylene)
- Yes
- Certified for UL hazardous location group D (propane)
- Yes
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- Yes
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 20.4–28.8 V
- Voltage type (supply voltage)
- DC
- Switching current
- 5 A
- With relay output
- No
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Redundancy
- No
- With display
- No
- Degree of protection (IP)
- IP20
- Basic device
- No
- Expandable
- Yes
- Expansion device
- Yes
- With time switch clock
- No
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- Yes
- Front built-in possible
- Yes
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 36 mm
- Height
- 90 mm
- Depth
- 58 mm
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8517.62
Cross References
- 4015081978441
- El-nr 4500803
Product Documentation
Document preview: Accessories,EASY-COM-RTU-M1 (4500803) — Specification sheet
