EASY-E4 In/O extension, 230VAC

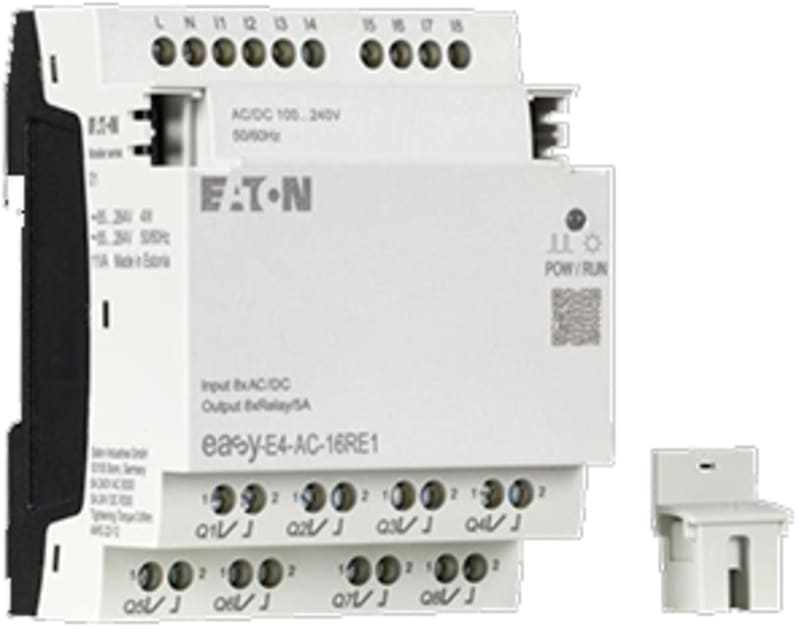

Eaton EASY-E4 In/O extension, 230VAC (part number EASY-E4-AC-16RE1) is listed under Control & Automation / PLCs. Sales unit: pcs; Eaton catalogue number: 197222; Depth: 58 mm; Height: 90 mm; Width: 72 mm; Weight: 0.25 kg.

Manufacturer part number (MPN)

EASY-E4-AC-16RE1

EAN / GTIN

4015081939428

Sales unit

pcs

Eaton catalogue number

197222

Depth

58 mm

Height

90 mm

Width

72 mm

Weight

0.25 kg

Catalog Notes

fitted with two controlled relays

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

57 - 150 Hz, 2 g constant acceleration; 10 - 57 Hz, 0.15 mm constant amplitude; According to IEC/EN 60068-2-6

Cable length

≤ 100 m per input (I1 - I6, I9 - I12, debounce ON), Digital inputs 115/230 V AC; ≤ 60 m per input (I1 - I8), Digital inputs 115/230 V AC; 40 m (max. permissible per input R1 to R12), Digital inputs 115/230 V AC

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Condensation: prevent with appropriate measures; Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Relative humidity

5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Connection type

Screw terminal

Equipment heat dissipation, current-dependent Pvid

2 W

Static heat dissipation, non-current-dependent Pvs

4 W

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

5 A

Inrush current

12.5 A (for 6 ms)

Power consumption

4 W

Rated breaking capacity

300000 Operations at AC-15, 250 V AC, 3 A (600 Ops./h); 200000 Operations at DC-13, 24 V DC, 1 A (500 Ops./h)

Rated insulation voltage (Ui)

240 V

Rated operational voltage

85 - 264 V AC; Max. 300 V AC; Max. 300 V DC; 110/120 V DC (power supply); 240 V AC; 100/110/115/120/230/240 AC (-15 %/+10 %)

Supply frequency

50/60 Hz (± 5%)

Supply voltage at AC

50 Hz - max

264 VAC

Supply voltage at AC

50 Hz - min

85 VAC

Supply voltage at DC - max

264 VDC

Supply voltage at DC - min

85 VDC

Uninterrupted current

1 A DC, at R 300 (UL/CSA); 5 A AC, max. thermal continuous current cos ϕ = 1 at B 300 (UL/CSA); 8 A DC, at 24 V DC (UL/CSA); 8 A AC, at 240 V AC (UL/CSA)

Air discharge

8 kV

Burst impulse

2 kV, Signal cable; 2 kV, Supply cable; According to IEC/EN 61000-4-4

Contact discharge

6 kV

Electromagnetic fields

10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3); 1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 61000-6-3)

Surge rating

According to IEC/EN 61000-4-5, power pulses (Surge), EMC; 1 kV, Supply cables, symmetrical, power pulses (Surge), EMC; 2 kV, Supply cables, asymmetrical, power pulses (Surge), EMC

Voltage dips

10 ms

Features

Expandable; Expansion device

Fitted with

Relay output

Degree of protection

IP20

Input frequency

50/60 Hz (Digital inputs, at 115/230 V AC); 50/60 Hz (Digital inputs, at 24 V DC)

Insulation resistance

According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Lifespan, mechanical

1,000,000 Operations

Mounting method

Wall mounting/direct mounting; Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Rail mounting possible; Screw fixing using fixing brackets ZB4-101-GF1 (accessories); Front build in possible

Overvoltage category

III

Pollution degree

2

Product category

Control relays easyE4

Protection

B16 circuit breaker or 8 A (T) fuse, Protection of an Output relay

Protocol

MODBUS; TCP/IP

Rated impulse withstand voltage (Uimp)

Relay outputs: 6 kV (contact-coil)

Residual ripple

≤ 5 %

Software

EASYSOFT-SWLIC/easySoft

Switching frequency

2 Hz, Resistive load/lamp load, Relay outputs; 0.5 Hz, Inductive load, Relay outputs; 10 Hz, Relay outputs

Type

easyE4 extension

Utilization category

R 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes DC; B 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes AC

Voltage type

AC

Input current

6 x 0.25 mA (I1 - I8, at 115 V AC, 60 Hz, at signal 1); 6 x 0.5 mA (I1 - I8, at 230 V AC, 50 Hz, at signal 1)

Input voltage

Condition 0: 0 - 40 V AC, Digital inputs

115/230 V AC); Condition 1

79 - 264 V AC, Digital inputs, 115/230 V AC)

Making/breaking capacity

3600/360 VA (AC, at B 300); 28/28 VA (DC, at R 300)

Number of inputs (analog)

0

Number of inputs (digital)

8

Number of outputs (analog)

0

Number of outputs (digital)

8

Output

8 Relay Outputs; > 500 mA (Relay outputs

Recommended for load

12 V AC/DC); Relay outputs in groups of 1; Voltage; Current

Parallel switching

Not permitted

Explosion safety category for dust

None

Explosion safety category for gas

None

Protection against polarity reversal

Yes, for supply voltage (Siemens MPI optional)

Safe isolation

300 V AC, Between coil and contact, According to EN 50178; 300 V AC, Between two contacts, According to EN 50178

Short-circuit protection

≥ 1A (T), Fuse, Power supply

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity

0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule; 0.2 - 4 mm² (AWG 22 - 12), solid

Tightening torque

0.6 Nm, Screw terminals

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

Yes

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage AC 50 Hz

85–264 V

Supply voltage AC 60 Hz

85–264 V

Supply voltage DC

85–264 V

Switching current

5 A

Number of digital inputs

8

Number of digital outputs

8

With relay output

Yes

Number of HW-interfaces other

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

HS Code

8537.10
