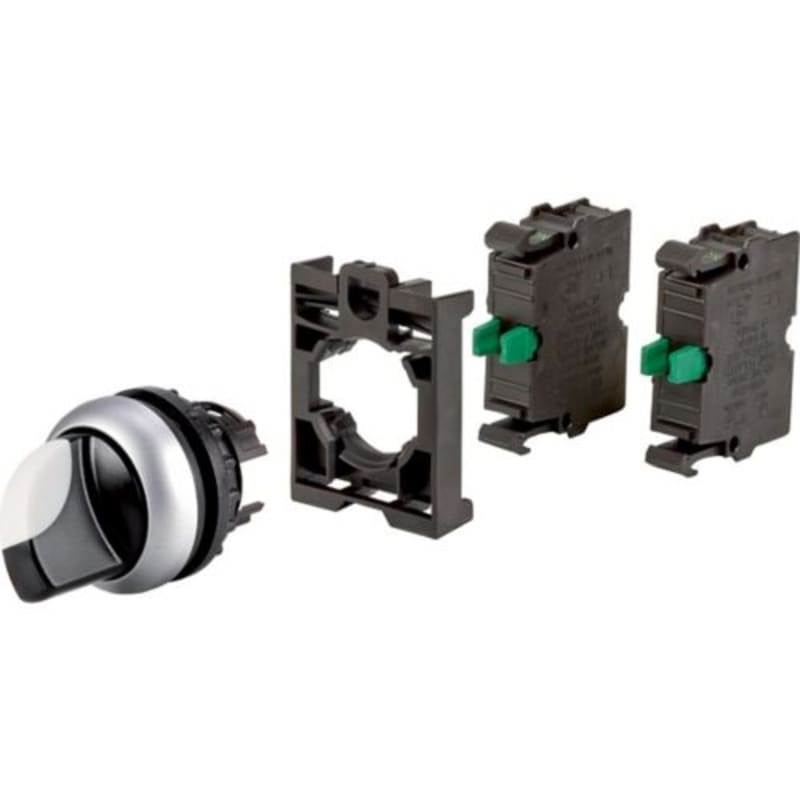

Selector Switch, RMQ (M22-WKV-2K10-BVP)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Selector Switch, RMQ (M22-WKV-2K10-BVP) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 110922; Depth: 50 mm; Height: 80 mm; Width: 50 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WKV-2K10-BVP
- EAN / GTIN
- 4015081104512
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 110922
- Depth
- 50 mm
- Height
- 80 mm
- Width
- 50 mm
- Weight
- 0.039 kg
- Compliances
- CE
- Certifications
- DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Spring-return; Switching function latching
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Fitted with
- Front ring
- Indicator color
- Other
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Degree of protection
- NEMA 4X
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Hole diameter
- 22 mm
- Suitable for lighting
- No
- Spring-return
- Yes
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Wing knob
- Colour control element
- Black
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081104512
- SAP 1200563103
- Code 82903939
Product Documentation
More from Eaton
Eaton
Main switch,P1-40/SE1/SVB-SW
Eaton
PCM 125/125 G Kunststoffkapsl
PCM125/125G
Eaton
DG1 variable-frequency drive 230V: 5,5kW (DG1-32025FB-C54C)
Eaton
Panel board m/DIN B=600mm H=760mm Hv
BP-O-600/7-C-W
Eaton
Sign for PUSH-Button with PIL
M22-XD-S-X7
Eaton
Wall box H×W×D=760X400X240MM
BPZ-WB3S-400/7/2
Eaton
MOUNTINGSPL.PERF. M6/M8 for 500X500MM
MPP-5050-CS
Eaton
Area switch E56ADL40SAD01
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy M22-WKV-2K10-BVP?
- M22-WKV-2K10-BVP can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is M22-WKV-2K10-BVP.
- What is the HS code for M22-WKV-2K10-BVP?
- The customs tariff (HS) code for M22-WKV-2K10-BVP is 8536.50.
- Who manufactures M22-WKV-2K10-BVP?
- M22-WKV-2K10-BVP is a Eaton product in the Control & Automation range.
- Is a datasheet available for M22-WKV-2K10-BVP?
- Yes — the M22-WKV-2K10-BVP datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for M22-WKV-2K10-BVP?
- The minimum order quantity is 1.
- Is M22-WKV-2K10-BVP available?
- Yes — M22-WKV-2K10-BVP is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
