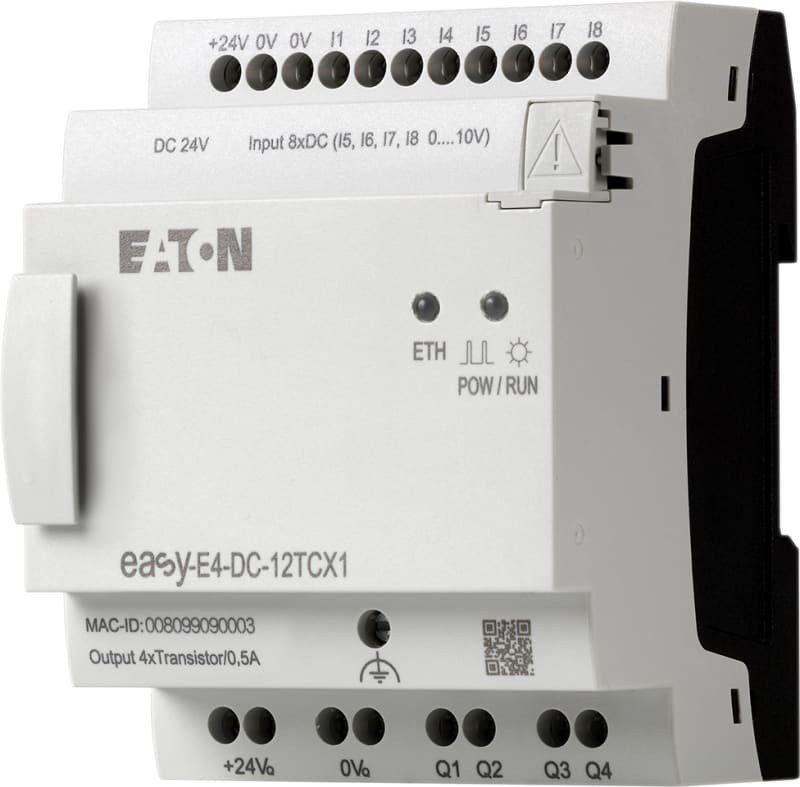

Styrerelè, EASYE4 (EASY-E4-DC-12TCX1)

Eaton Styrerelè, EASYE4 (EASY-E4-DC-12TCX1) is listed under Control & Automation / PLCs. Sales unit: pcs; Eaton catalogue number: 197214; Depth: 58 mm; Height: 90 mm; Width: 72 mm; Weight: 0.2 kg.

Manufacturer part number (MPN)

EASY-E4-DC-12TCX1

EAN / GTIN

4015081939459

Sales unit

pcs

Eaton catalogue number

197214

Depth

58 mm

Height

90 mm

Width

72 mm

Weight

0.2 kg

Compliances

Eaton supports the product until its end of life

Catalog Notes

Accuracy of the real-time clock depending on ambient air temperature - fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Vibration resistance

57 - 150 Hz, 2 g constant acceleration; 10 - 57 Hz, 0.15 mm constant amplitude; According to IEC/EN 60068-2-6

Cable length

≤ 30 m, screened, Analog inputs; 100 m, unscreened, Digital inputs 24 V DC

Cable type

Ethernet: CAT5

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Clearance in air and creepage distances according to EN 50178, EN 61010-2-201, UL61010-2-201

CSA-C22.2 NO. 61010-2-201; Condensation

prevent with appropriate measures

Relative humidity

5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Connection type

Ethernet: RJ45 plug, 8-pole; Screw terminal

Data transfer rate

10/100 MBit/s

LED indicator

Status indication of Power/RUN; Status indication of Ethernet: LED

Static heat dissipation, non-current-dependent Pvs

2 W

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

0.5 A

Heat dissipation

3.4 W (at 24 V DC)

Inrush current

12.5 A (for 6 ms)

Power consumption

2 W

Power loss

2 W

Rated operational current (Ie)

Max. 0.5 A at signal „1” DC per channel

Rated operational voltage

24 V DC (transistor outputs); 20.4 - 28.8 V DC; 24 V DC (digital inputs); 24 V DC (-15 %/+ 20 % - power supply); 20.4 - 28.8 V DC (Transistor outputs)

Supply current

24/44 mA, Normally⁄max., On 1 signal, Transistor outputs; 18/32 mA, Normally⁄max., On 0 signal, Transistor outputs

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Air discharge

8 kV

Burst impulse

2 kV, Signal cable; 2 kV, Supply cable; According to IEC/EN 61000-4-4

Contact discharge

6 kV

Electromagnetic fields

10 V/m at 0.8 - 1.0 GHz (according to IEC EN 61000-4-3); 1 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3); 3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 61000-6-3)

Surge rating

0.5 kV, Supply cables, symmetrical, power pulses (Surge), EMC; 1 kV, Supply cables, asymmetrical, power pulses (Surge), EMC; According to IEC/EN 61000-4-5, power pulses (Surge), EMC

Voltage dips

20 ms; ≤ 10 ms, Bridging voltage dips

Features

Expandable; Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1: Q1 to Q4; Networkable (Ethernet)

Fitted with

Timer; Real time clock

Functions

Thermal cutout

Degree of protection

IP20

Frequency counter

Cable length: ≤ 20 m (screened

Digital inputs 24 V DC); Number

4 (I1, I2, I3

I4 - Digital inputs 24 V DC); Pulse shape

Square (digital inputs 24 V DC); Pulse pause ratio: 1:1 (Digital inputs 24 V DC); Counter frequency: 5 kHz (Digital inputs 24 V DC)

Insulation resistance

According to EN 50178, EN 61010-2-201, UL61010-2-201, CSA-C22.2 NO. 61010-2-201

Mounting method

Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Screw fixing using fixing brackets ZB4-101-GF1 (accessories); Rail mounting possible; Front build in possible; Wall mounting/direct mounting

Operating frequency

Dependent on the cycle- and transmission-time of the expansion devices; Dependent on the cycle time of the basic device; Depending on the suppressor circuit (Inductive load to EN 60947-5-1, with external suppressor circuit, Max. switching frequency, max. duty factor)

Overvoltage category

III

Pollution degree

2

Product category

Control relays easyE4

Protocol

MODBUS; TCP/IP

Residual current

0.1 mA (on signal "1" per channel)

Residual ripple

5 % (transistor outputs); ≤ 5 %

Resolution

1 min (Range H:M) 1 s (Range M:S) 12 Bit (value 0 - 4095, Analog inputs) 5 ms (Range S)

Software

EASYSOFT-SWLIC/easySoft

Type

easyE4 base device

Used with

easyE4

Voltage type

DC

Accuracy

± 2 %, (I5, I6, I7, I8) ± 0.12 V, of actual value, within a single device (Analog Inputs); ± 1 %, Repetition accuracy of timing relays (of values); ± 3 %, of actual value, two easy devices (Analog Inputs); ± 2 s/day, Real-time clock to inputs (± 0.2 h⁄Year)

Conversions

Each CPU cycle for Analog inputs

Incremental counter

Pulse pause ratio: 1:1; Number of counter inputs: 2 (I1 + I2

I3 + I4); Pulse shape

Square; Signal offset: 90°; Value range: -2147483648 to +2147483647; Counter frequency: ≤ 5 kHz

Incremental encoder

Cable length: ≤ 20 m (screened)

Input

Voltage (DC)

Input current

1 mA (Analog inputs); 2.2 mA (I5 - I8, at 24 V DC, at signal 1); 3.3 mA (I1 - I4, at 24 V DC, at signal 1); 80 mA

Input impedance

13.3 kΩ

Input voltage

Status 0: ≤ 8 V DC (I5 - I8, Digital inputs

24 V DC); Status 0

≤ 15 V DC (I1 - I4, Digital inputs

24 V DC); Status 1

≥ 15 V DC (I1 - I4, Digital inputs

24 V DC); Signal 0

≤ 5 V DC (I1 - I8, Digital inputs, 24 V DC)

Lamp load

Max. 3 W (without Rv per channel)

Number of inputs (analog)

0; 4

Number of inputs (digital)

8

Number of outputs (analog)

0

Number of outputs (digital)

4

Output

2 A, Max. total current, Outputs; Parallel connection of max. 4 Transistor outputs; 4 Transistor Outputs; Voltage; Current

Output voltage

U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs); Max. 2.5 V (at status 0 per channel, transistor outputs)

Rapid counter inputs

Pulse shape: Square; Value range: -2147483648 to +2147483647; Pulse pause ratio: 1:1; Counter frequency: ≤ 10 kHz; Number of rapid counter inputs: 4 (I1, I2, I3

I4); Cable length

≤ 20 m (shielded)

Signal range

0 - 10 V DC, Analog inputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Protection against polarity reversal

For transistor outputs (Caution: A short circuit will result if 0 V/earth is applied to the outputs in the event that the supply voltage is connected to the wrong poles); Yes, for supply voltage (Siemens MPI optional)

Short-circuit current

6.8 A, Transistor outputs

Short-circuit protection

≥ 1A (T), Fuse, Power supply; Yes, electronic (Q1 - Q4), Transistor outputs

Short-circuit tripping current

0.7 ≤ Ie ≤ 1.7 per output, For Ra ≤ 10 mΩ, Depending on number of active channels and their load, Transistor outputs

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity

0.2 - 2.5 mm² (22 - 12 AWG), flexible with ferrule; 0.2 - 4 mm² (AWG 22 - 12), solid

Tightening torque

0.6 Nm, Screw terminals

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

Yes

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

20.4–28.8 V

Switching current

0.5 A

Number of digital inputs

8

Number of digital outputs

4

With relay output

No

Number of HW-interfaces industrial Ethernet

1

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

HS Code

8537.10
