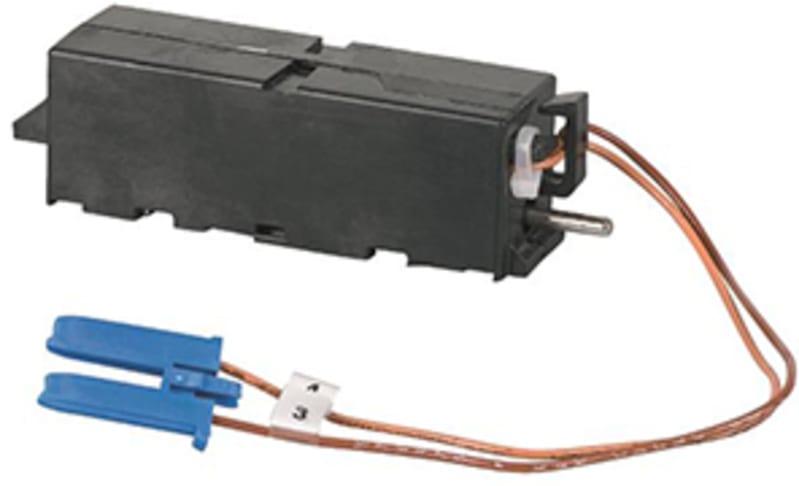

Eaton IZMX-UVR24DC-1
Part numberIZMX-UVR24DC-1EAN / GTIN4015081783144HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton IZMX-UVR24DC-1 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 184108; Depth: 150 mm; Height: 100 mm; Width: 100 mm; Weight: 0.091 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IZMX-UVR24DC-1
- EAN / GTIN
- 4015081783144
- Sales unit
- pcs
- Eaton catalogue number
- 184108
- Depth
- 150 mm
- Height
- 100 mm
- Width
- 100 mm
- Weight
- 0.091 kg
- Compliances
- RoHS conform
- Accessory/spare part type
- Remote switching
- Special features
- Cannot be combined with a second shunt release. Retrofitting kit Slot on the right on the adapter plate. Limited to 3/min due to the high pick-up current for 35 ms. Please note - the circuit-breaker's switching frequency = 60/h The retrofit kit includes the required SEC control cable terminals.
- Suitable for
- Overload relay; Power circuit breaker; Motor safety switch; Off-load switch
- Type
- Accessory
- Used with
- INX16..., INX40...; IZMX16..., IZMX40...
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Circuit breaker total switching time
- 50 ms (Us = 100%) (IZMX16…, INX16…); 40 ms (Us = 100%) (IZMX40…, INX40…)
- Control voltage operating range
- 0.85 - 1.1 x Us; 24 V DC
- Current rating - max
- 0.18 A (maximum holding current)
- Electric connection type
- Flat plug-in connection
- Pick-up power consumption at 35 ms - max
- 500 VA/W
- Power consumption
- 5 VA/W AC/DC
- Rated control supply voltage (Us) at DC - max
- 24 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Rated operational current
- 0.18 A (maximum holding current)
- Voltage type
- DC
- Number of actuation per minute - max
- 3
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 0
- Delayed
- No
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- Yes
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage DC
- 24 V
- Suitable for motor safety switch
- Yes
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- DC
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081783144
- SAP 1200598910
- Code 82977669
Product Documentation
Document preview: Eaton IZMX-UVR24DC-1 — Specification Data Sheet (OEM)
