Potentiometer 1 KOHM, Black

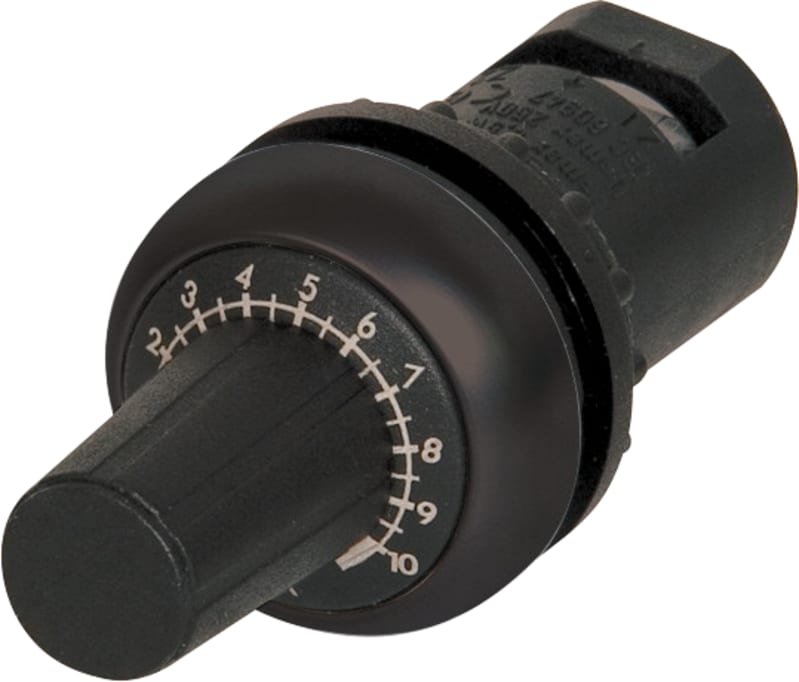

Eaton M22S-R1K Potentiometer, 1k, front.

Manufacturer part number (MPN)

M22S-R1K

EAN / GTIN

4015082322311

Sales unit

pcs

Eaton catalogue number

232231

Depth

70 mm

Height

29 mm

Width

29 mm

Weight

0.034 kg

Certifications

UL File No.: E29184; CSA File No.: 012528; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; VDE 0660; CSA; UL 508; IEC/EN 60947-5; IEC/EN 60947; CSA-C22.2 No. 14-05; CSA Class No.: 3211-03; UL; CE

Bezel color

Black

Design

Classical

Electric connection type

Screw connection

Fitted with

3 individual screw terminals

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Static heat dissipation, non-current-dependent Pvs

0.5 W

Power consumption

0.5 W

Rated insulation voltage (Ui)

250 V

Rated power

0.5 VA

Resistance

1000 Ohm

Degree of protection

IP66; NEMA Other

Lifespan, mechanical

25,000 Operations

Mounting position

As required

Opening diameter

22.5 mm

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

4000 V AC

Type

Potentiometer

Terminal capacity (solid)

0.5 - 1.5 mm²

Terminal capacity (stranded)

0.5 - 1.5 mm²

Tightening torque

0.5 Nm, Screw terminals

Hole diameter

22 mm

Type of electric connection

Screw connection

Number of revolutions

1

Country of origin

Hungary

HS Code

8533.29

• EAN 4015082322311
• SAP 1000005664
• Code 832959
