Eaton

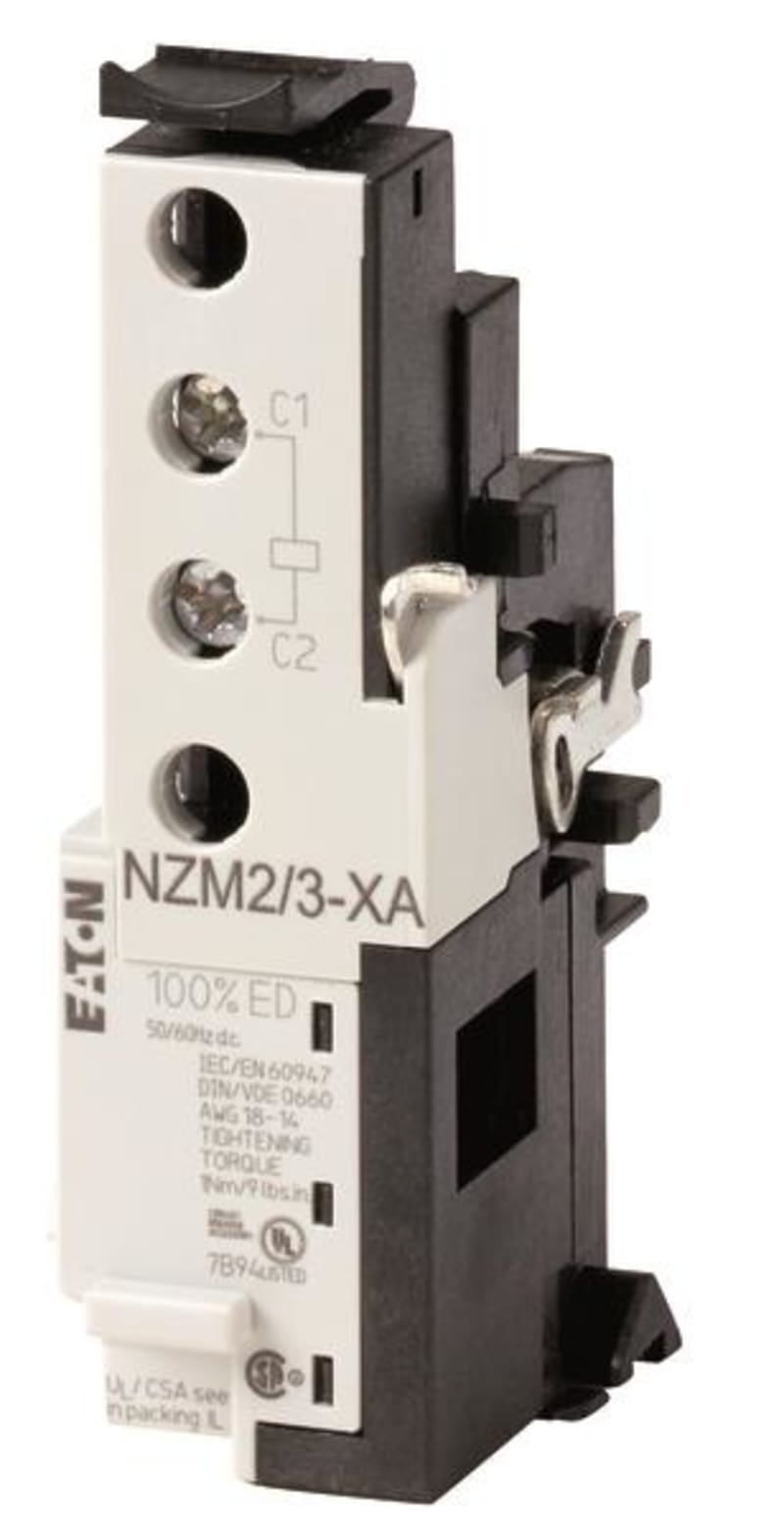

Eaton NZM2/3-XA24AC/DC
Part numberNZM2/3-XA24AC/DCEAN / GTIN4015082597542HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2/3-XA24AC/DC is listed under Electrical Components / Circuit Breaker Accessories. HS code: 8538.90.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2/3-XA24AC/DC EAN / GTIN: 4015082597542 Sales unit: pcs Eaton catalogue number: 259754 Depth: 42 mm Height: 90 mm Width: 30 mm Weight: 0.094 kg Compliances: UL/CSA; IEC; RoHS conform Certifications: CE marking; CSA certified; UL listed; IEC60947; UL (Category Control Number DIHS); CSA (Class No. 1437-01); UL (File No. E140305); CSA (File No. 22086); CSA-C22.2 No. 5-09; UL489 Frame: NZM2/3 Suitable for: Off-load switch Type: Accessory Shunt release Used with: NZM2(-4), N(S)2(-4); NZM3(-4), N(S)3(-4) Electric connection type: Screw connection Frequency rating: 50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release) minimum command time - max: 15 ms minimum command time - min: 10 ms Pick-up power consumption (shunt release): 2.5 VA/W Rated control supply voltage: 24 V AC/DC Rated control supply voltage (Us) at AC, 50 Hz - max: 24 V Rated control supply voltage (Us) at AC, 50 Hz - min: 24 V Rated control supply voltage (Us) at AC, 60 Hz - max: 24 V Rated control supply voltage (Us) at AC, 60 Hz - min: 24 V Rated control supply voltage (Us) at DC - max: 24 V Rated control supply voltage (Us) at DC - min: 24 V Rated control voltage (relay contacts): 24 V DC; 24 V AC Reaction time: 20 ms Time on duty - max: ∞ Voltage rating: 0.7 - 1.1 x Us Voltage rating at AC (x Us) - max: 1.1 Voltage rating at AC (x Us) - min: 0.7 Voltage type: AC/DC Connection type: With bolt connection Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 0 Suitable for off-load switch: Yes Suitable for overload relay: No Type of electric connection: Screw connection Rated control supply voltage AC 50 Hz: 24 V Rated control supply voltage AC 60 Hz: 24 V Rated control supply voltage DC: 24 V Suitable for motor safety switch: No Suitable for power circuit breaker: No Voltage type for actuating: AC Country of origin: Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082597542
- SAP 1000289093
- Code 81038538
Product Documentation
Document preview: Eaton NZM2/3-XA24AC/DC — Specification Data Sheet (OEM)
