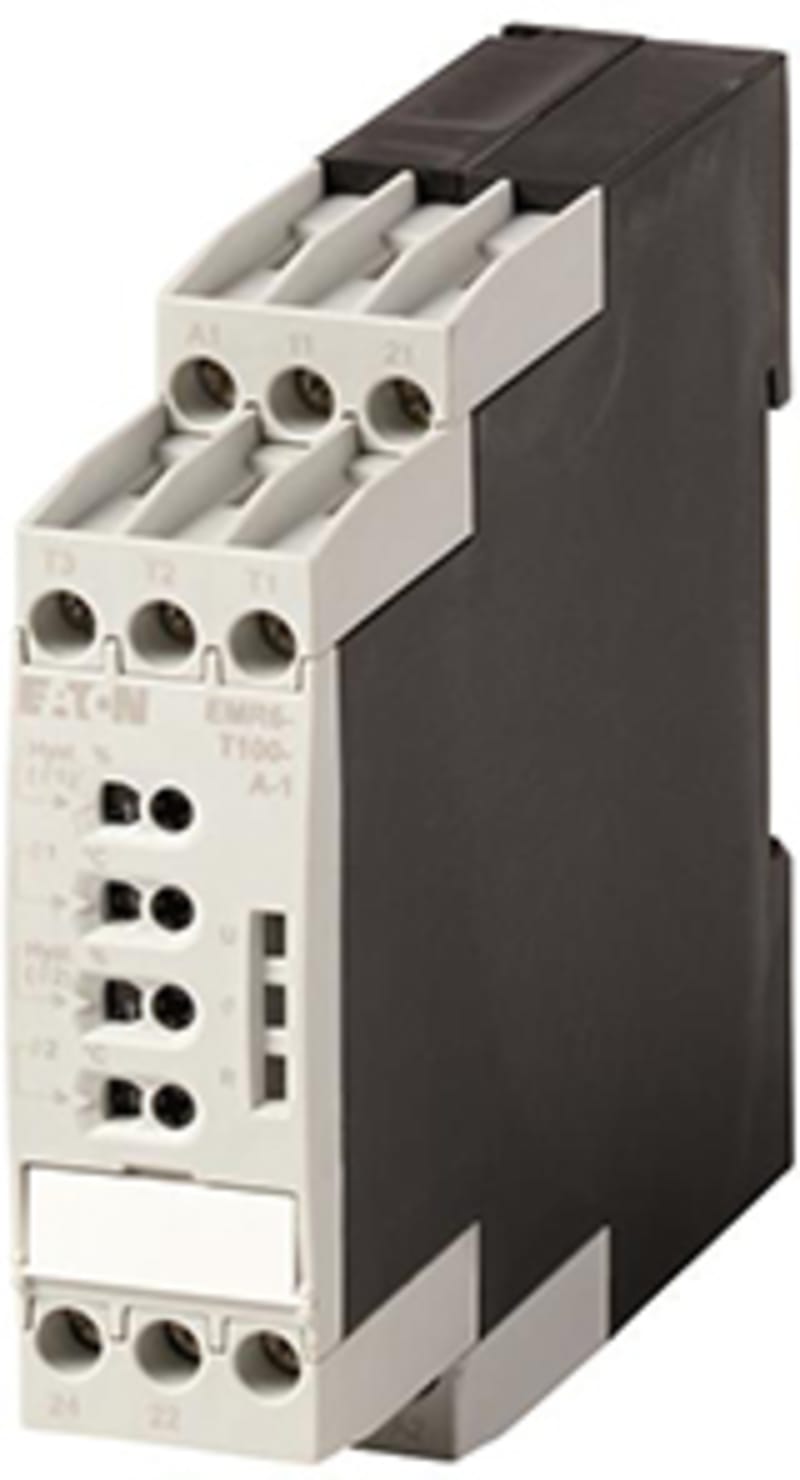

Temperature monitoring relay (EMR6-T100-A-1)

Eaton Temperature monitoring relay (EMR6-T100-A-1) is listed under Control & Automation / Monitoring Relays. Sales unit: pcs; Eaton catalogue number: 184787; Depth: 103.7 mm; Height: 85.6 mm; Width: 22.5 mm; Weight: 0.151 kg.

Manufacturer part number (MPN)

EMR6-T100-A-1

EAN / GTIN

4015081788231

Sales unit

pcs

Eaton catalogue number

184787

Depth

103.7 mm

Height

85.6 mm

Width

22.5 mm

Weight

0.151 kg

Certifications

UL 508; CCC; CE; CSA-C22.2 No. 14; EAC; GL

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30

Air discharge

According to IEC/EN 61000-4-2 level 3

Burst impulse

According to IEC/EN 61000-4-4, level 3

Contact discharge

According to IEC/EN 61000-4-2, Level 3

Electromagnetic compatibility

According to IEC/EN 60947-6-2

Immunity to line-conducted interference

Level 3 (according to IEC/EN 61000-4-6)

Immunity to radiation

Level 3 (according to IEC/EN 61000-4-3)

Surge rating

According to IEC/EN 61000-4-5 Level 4

Electric connection type

Screw connection

Monitoring function

Superheating and supercooling (window); Supercooling; Overheating

Temperature measuring range - max

100 °C

Temperature measuring range - min

0 °C

Degree of protection

Terminals: IP20; Enclosure: IP50

LED indicator

Other states depending on fault (see IL): Measured value; Status indication of Supply voltage: Green, solid light

Lifespan, mechanical

30,000,000 Operations

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product category

EMR Measuring and monitoring relays

Rated impulse withstand voltage (Uimp)

4000 V AC

Shock resistance

Class 2

Type

Temperature monitor

Voltage type

AC/DC

Hysteresis

2 - 20 %

Duty factor

100 %, Power supply

Power consumption

2.9 VA

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

240 V

Rated control supply voltage (Us) at DC - min

24 V

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Supply voltage

24 - 240 V DC; 24 - 240 V AC, 50/60 Hz

Voltage tolerance

0.85 x Uc; 1.1 x Uc

Lifespan, electrical

100,000 Operation (at 230 V, AC-12, 4 A)

Number of contacts (change-over contacts)

2

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Connection type

Snap fixing, top-hat rail IEC/EN 60715

Screwdriver size

4 x 0.8 mm, Terminal screw

Terminal capacity

2 x (0.5-1.5) mm², (2 x (18-16) AWG), flexible with ferrule; 1 x (0.5-2.5) mm², (1 x (18-14) AWG), solid

Tightening torque

Min. 0.5 Nm, Screw terminals; Max. 0.8 Nm, Screw terminals

Operating voltage AC 50 Hz

24–240 V

Operating voltage AC 60 Hz

24–240 V

Operating voltage DC

24–240 V

Supply voltage AC 50 Hz

24–240 V

Supply voltage AC 60 Hz

24–240 V

Supply voltage DC

24–240 V

Rated switch current

4 A

Connection type auxiliary circuit

Screw connection

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

24–240 V

Rated control supply voltage AC 60 Hz

24–240 V

Rated control supply voltage DC

24–240 V

Voltage type for actuating

AC/DC

With detachable clamps

No

Number of measuring circuits

1

Error registration possible

No

External reset possible

No

Number of contacts as change-over contact

2

Temperature measuring range

0–100 °C

Country of origin

Germany

HS Code

8536.49
