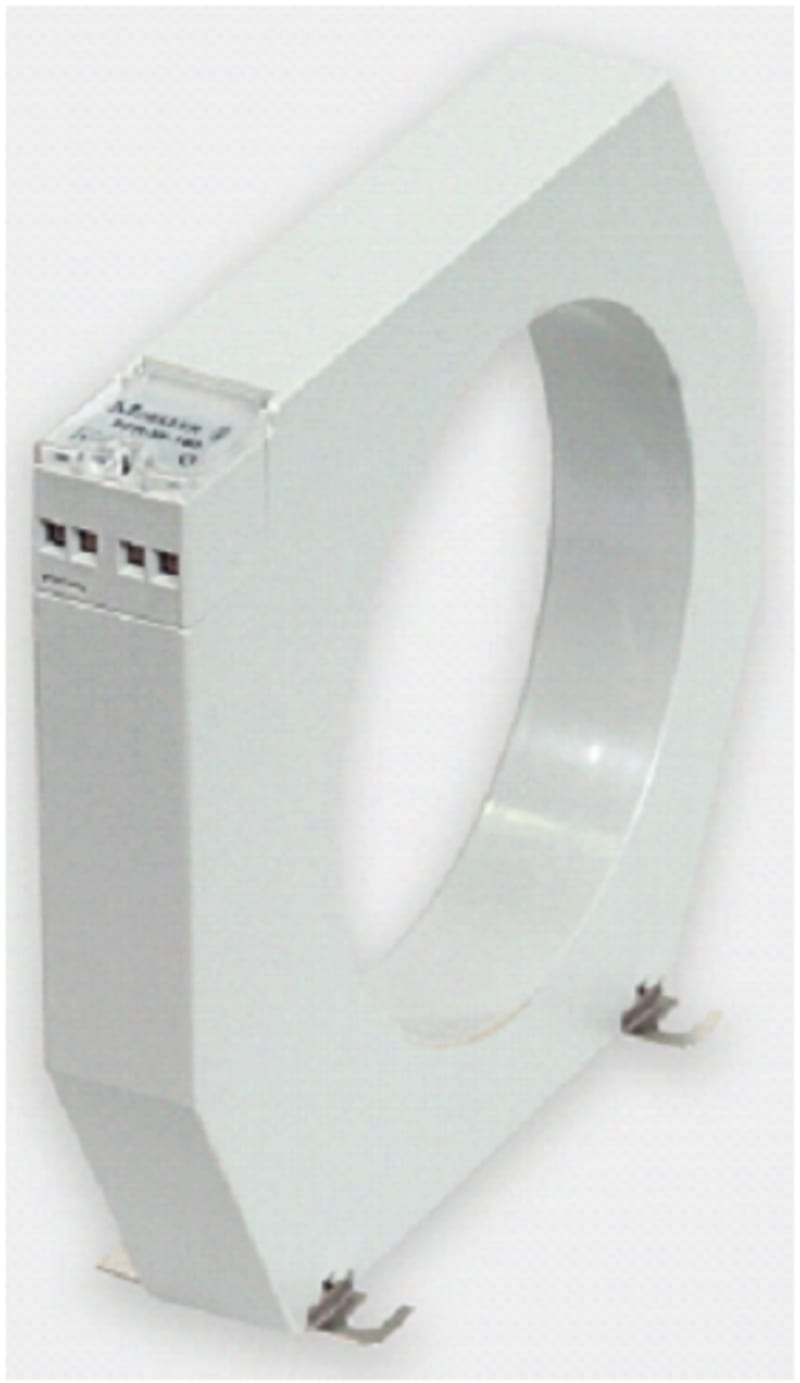

Eaton 285602 Summation Current Transformer for PFR-5 Earth-Fault Relay
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 285602 is a summation current transformer used with the PFR residual current relay to detect earth-fault currents in low-voltage installations. It has a 105 mm transformer opening for the phase and neutral conductors and includes a DIN-rail fixing clip. The unit measures 172 x 45 x 190 mm, weighs 0.402 kg and is rated for 690 V AC 50/60 Hz systems on NZM1-NZM4 frames.
Technical Specifications
- Manufacturer part number (MPN)
- 285602
- EAN / GTIN
- 4015082856021
- Sales unit
- pcs
- Eaton catalogue number
- 285602
- Depth
- 190 mm
- Height
- 45 mm
- Width
- 172 mm
- Weight
- 0.402 kg
- Compliances
- RoHS conform
- Certifications
- IEC
- Frame
- NZM1/2/3/4
- Special features
- In combination with PFR residual current relay not UL/CSA approved
- Type
- Accessory Earth-fault releases, transformer Voltage release
- Voltage rating
- 690 V AC 50/60 Hz
- Voltage rating of relay contact
- 690 V (50/60 Hz)
- Mounting Method
- Incl. fixing clip for DIN-rail mounting
- Transformer opening diameter
- 105 mm
- Delay adjustable
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 4015082856021
- SAP 1000066500
- Code 8553696
