Motor protection circuit breaker, base module

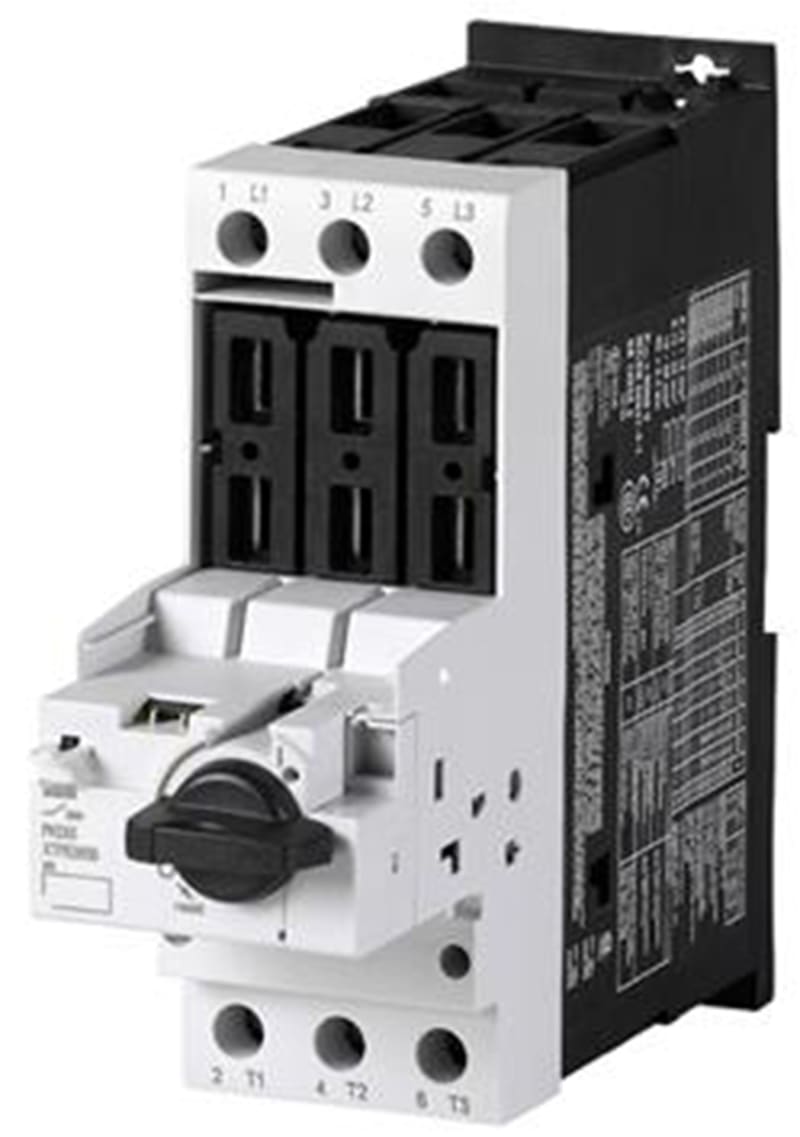

Eaton Motor protection circuit breaker, base module (part number PKE65) is listed under Electrical Components / Motor Protection Circuit Breakers. HS code: 8536.90; Sales unit: pcs; Eaton catalogue number: 138258; Depth: 187 mm; Height: 162 mm; Width: 55 mm.

Manufacturer part number (MPN)

PKE65

EAN / GTIN

4015081350384

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

138258

Depth

187 mm

Height

162 mm

Width

55 mm

Weight

1.231 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14-10; IEC 60947-4-1; UL 508; VDE; UL File No.: E36332; CE; IEC/EN 60947; UL; CSA; CSA-C22.2 No. 60947-4-1-14; VDE 0660; CSA File No.: 165628; UL 60947-4-1; IEC/EN 60947-4-1; UL Category Control No.: NLRV; CSA Class No.: 3211-05

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection

Screw terminals

Equipment heat dissipation, current-dependent Pvid

12.9 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

4.3 W

Rated operational current for specified heat dissipation (In)

65 A

Static heat dissipation, non-current-dependent Pvs

0 W

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

65 A

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

690 V

Rated uninterrupted current (Iu)

65 A

Actuator type

Turn button

Features

Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)

Fitted with

Standard knob

Functions

Line and cable protection; Motor protection; Motor protection for heavy starting duty; System protection

Number of poles

Three-pole

Degree of protection

IP20; Terminals: IP00

Lifespan, electrical

50,000 operations (at 400V, AC-3)

Lifespan, mechanical

30,000 Operations (Main conducting paths)

Operating frequency

60 Operations/h

Overload release current setting - min

0 A

Overvoltage category

III

Pollution degree

3

Product category

Motor protective circuit breaker

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Suitable for

Also motors with efficiency class IE3

Temperature compensation

-5 - 40 °C to IEC/EN 60947, VDE 0660; -25 - 55 °C, Operating range

Short-circuit release

Basic device fixed 15.5 x Iu, Trip Blocks; ± 20% tolerance, Trip blocks

Switching capacity

65 A, AC-3 up to 690 V

Stripping length (main cable)

14 mm

Terminal capacity (flexible with ferrule)

2 x (0.75 - 25) mm², ferrule to DIN 46228; 1 x (0.75 - 35) mm², ferrule to DIN 46228

Terminal capacity (solid)

1 x (0.75 - 16) mm²; 2 x (0.75 - 16) mm²

Terminal capacity (solid/stranded AWG)

14 - 2

Tightening torque

1 Nm, Screw terminals, Control circuit cables; 3.3 Nm, Screw terminals, Main cable

HS Code

8536.90

• EAN 4015081350384
• SAP 1000339031
