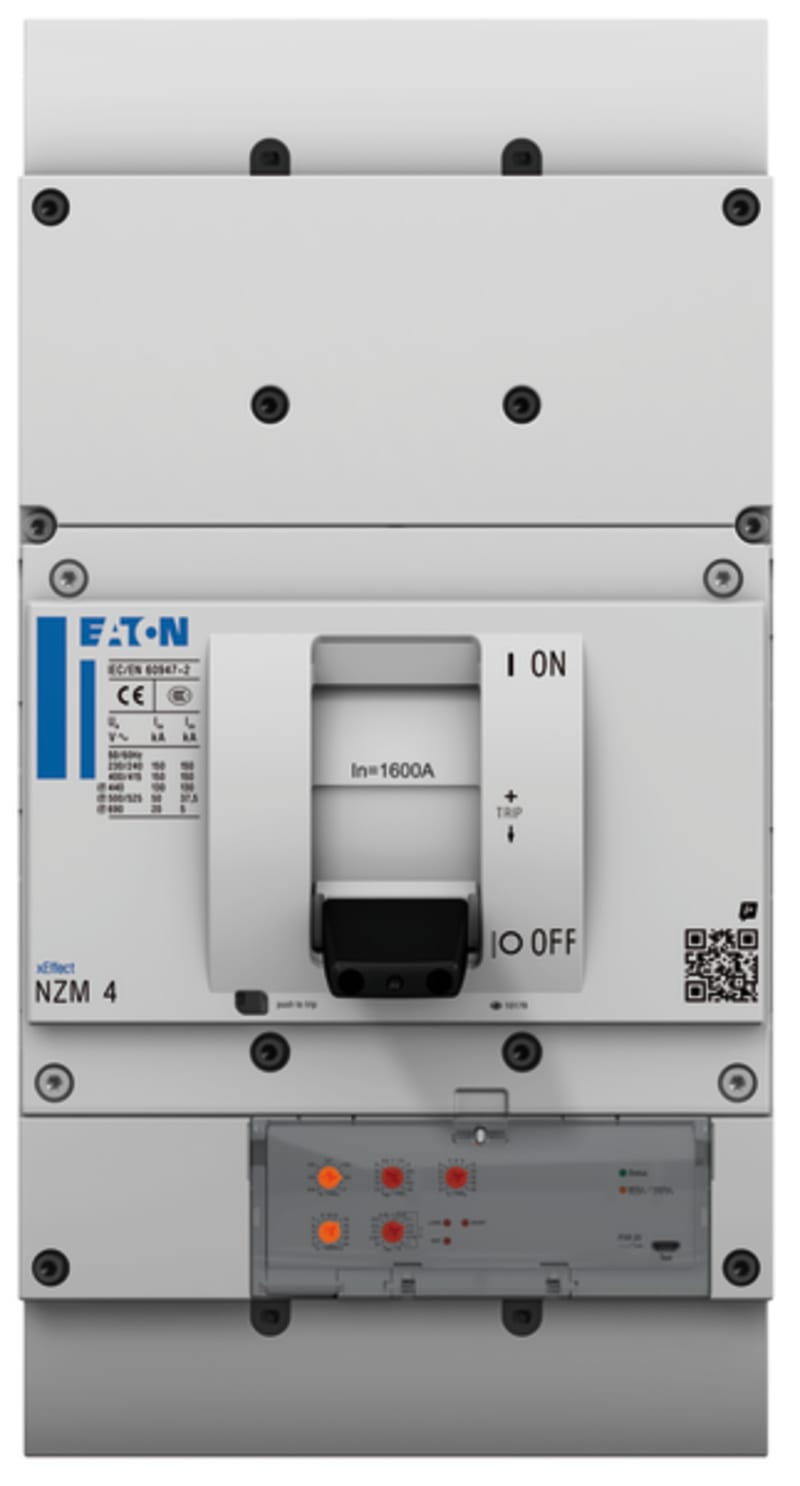

Circuit breaker NZM4 PXR20 800A 4P

Eaton 191440 NZMN4-4-VX800/VAR.

Manufacturer part number (MPN)

191440

EAN / GTIN

4015081919529

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

191440

Depth

375 mm

Height

170 mm

Width

280 mm

Weight

25.5 kg

Compliances

RoHS conform

Certifications

IEC; IEC/EN 60947

Functions

Systems, cable, selectivity and generator protection

Amperage Rating

800 A

Application

Use in unearthed supply systems at 525 V

Circuit breaker frame type

NZM4

Features

Motor drive optional; Protection unit

Number of poles

Four-pole

Release system

Electronic release

Type

Circuit breaker

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

106 W

Rated operational current for specified heat dissipation (In)

800 A

Current rating of neutral conductor

0 - 60% - 100% of phase conductor

Direction of incoming supply

As required

Electrical connection type of main circuit

Screw connection

Handle type

Rocker lever

Instantaneous current setting (Ii) - max

18 A

Instantaneous current setting (Ii) - min

2 A

Isolation

300 V AC (between the auxiliary contacts); 500 V AC (between auxiliary contacts and main contacts)

Lifespan, electrical

3000 operations at 415 V AC-1; 20000 operations at 690 V AC-1; 3000 operations at 400 V AC-1

Number of operations per hour - max

60

Overload current setting (Ir) - max

800 A

Overload current setting (Ir) - min

320 A

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp) at auxiliary contacts

6000 V

Rated impulse withstand voltage (Uimp) at main contacts

8000 V

Rated insulation voltage (Ui)

690 V AC

Rated short-circuit making capacity Icm at 240 V

50/60 Hz

110 kA

Rated short-circuit making capacity Icm at 400/415 V

Rated short-circuit making capacity Icm at 440 V

50/60 Hz

77 kA

Rated short-circuit making capacity Icm at 525 V

50/60 Hz

55 kA

Rated short-circuit making capacity Icm at 690 V

50/60 Hz

40 kA

Rated short-time withstand current (t = 0.3 s)

12 kA

Rated short-time withstand current (t = 1 s)

12 kA

Short delay current setting (Isd) - max

10 A

Short delay current setting (Isd) - min

2 A

Short-circuit release delayed setting - max

8000 A

Short-circuit release delayed setting - min

640 A

Short-circuit release non-delayed setting - max

12000 A

Short-circuit release non-delayed setting - min

1600 A

Short-circuit total breaktime

< 25 ms (≦ 415 V); < 35 ms (> 415 V)

Utilization category

B (IEC/EN 60947-2)

Voltage rating

690 V - 690 V

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Degree of protection

IP20; IP20 (basic degree of protection, in the operating controls area)

Degree of protection (IP), front side

IP40 (with insulating surround); IP66 (with door coupling rotary handle)

Degree of protection (terminations)

IP00 (terminations, phase insulator and strip terminal); IP10 (tunnel terminal)

Lifespan, mechanical

10000 operations

Mounting Method

Fixed; Built-in device fixed built-in technique

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Position of connection for main current circuit

Front side

Protection against direct contact

Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110

Shock resistance

15 g (half-sinusoidal shock 11 ms)

Optional terminals

Connection on rear. Strip terminal. Tunnel terminal

Standard terminals

Screw terminal

Terminal capacity (aluminum stranded conductor/cable)

50 mm² - 240 mm² (4x) at 4-hole tunnel terminal

Terminal capacity (control cable)

0.75 mm² - 1.5 mm² (2x); 0.75 mm² - 2.5 mm² (1x)

Terminal capacity (copper stranded conductor/cable)

120 mm² - 185 mm² (1x) direct at switch rear-side connection; 50 mm² - 185 mm² (4x) direct at switch rear-side connection

Document Name

Description Action

HS Code

8536.90

• EAN 4015081919529
• SAP 1200732414
• Code 83901228
