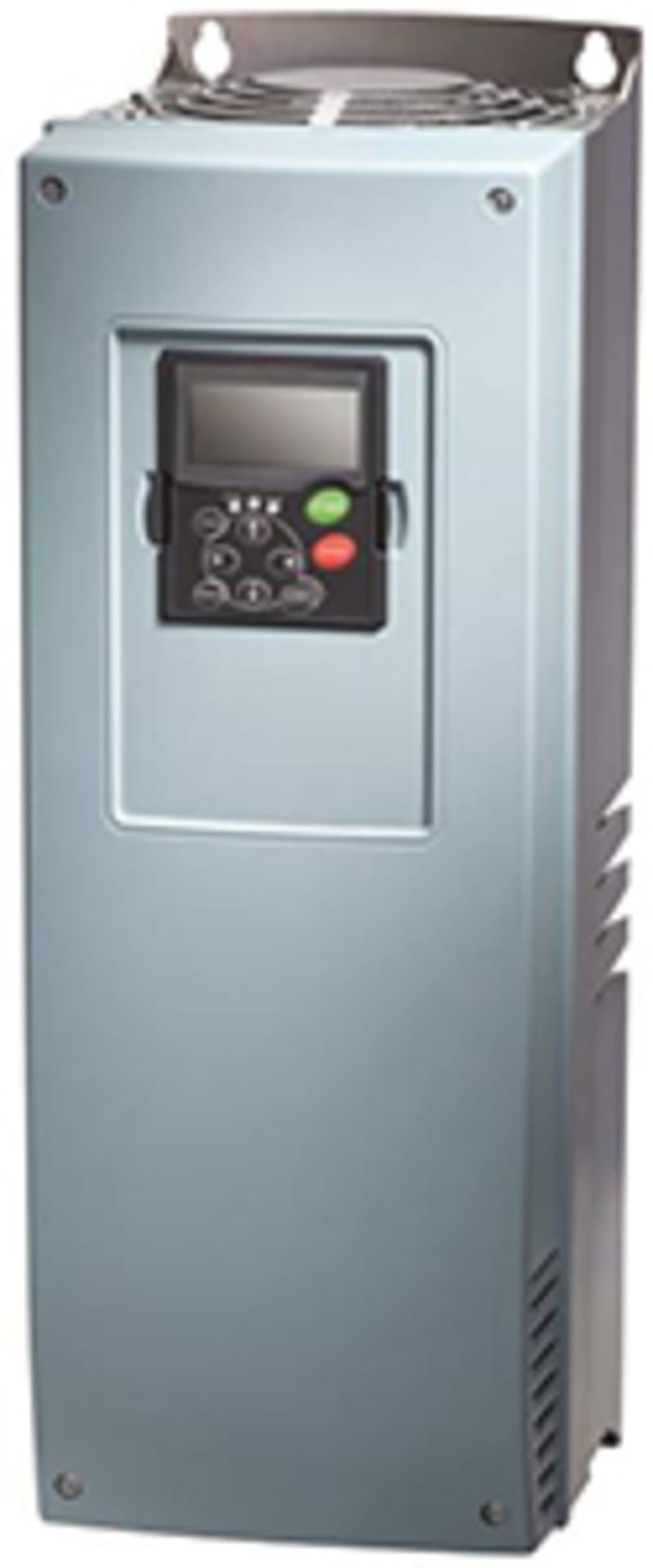

Variable-frequency drive 690V 5.5 kW

Eaton Variable-frequency drive 690V 5.5 kW (part number SPX005A1-5A4N1) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 125241; Depth: 237 mm; Height: 558 mm; Width: 195 mm.

Manufacturer part number (MPN)

SPX005A1-5A4N1

EAN / GTIN

4015081228478

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

125241

Depth

237 mm

Height

558 mm

Width

195 mm

Weight

18.5 kg

Altitude

Max. 1000 m; Above 1000 m with 1 % performance reduction per 100 m; Max. 3000 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 % relative humidity, no condensation, no corrosion, no dripping water

Communication interface

PROFIBUS-DP; LonWorks, optional; Modbus-TCP, optional; BACnet/IP, optional; CANopen®, optional; DeviceNet, optional; BACnet MS/TP, optional; EtherCAT, optional; Ethernet IP, optional; Modbus-RTU, optional; PROFINET, optional

Connection to SmartWire-DT

No

Number of inputs (analog)

2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)

Number of inputs (digital)

6 (parameterizable, max. 30 V DC)

Number of outputs (analog)

1

Number of outputs (digital)

1 (parameterizable, 48 V DC/50 mA)

Number of relay outputs

2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))

Rated control voltage (Uc)

24 V DC (external, max. 250 mA)

Equipment heat dissipation, current-dependent Pvid

138 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation details

Operation (with 150 % overload)

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

7.5 A

Static heat dissipation, non-current-dependent Pvs

0 W

Degree of protection

IP21; NEMA Other

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

Internal DC link; IGBT inverter; DC link choke; Radio interference suppression filter; OLED display

Frame size

FR6

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Radio interference class

C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.

Suitable for

Branch circuits, (UL/CSA)

Mains voltage - max

690 V

Mains voltage - min

525 V

Operating mode

Sensorless vector control (SLV); U/f control; Optional: Vector control with feedback (CLV)

Output frequency - max

320 Hz

Output frequency - min

0 Hz

Output voltage (U2)

600 V AC, 3-phase; 690 V AC, 3-phase

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

66 Hz

Rated frequency - min

45 Hz

Rated operational current (Ie) at 110% overload

10 A

Rated operational current (Ie) at 150% overload

7.5 A

Rated operational power at 690 V

50 Hz

5.5 kW

Rated operational power at 690 V, 50 Hz

110% overload

7.5 kW

Rated operational voltage

690 V AC, 3-phase; 600 V AC, 3-phase

Resolution

0.01 Hz (Frequency resolution, setpoint value)

Supply frequency

50/60 Hz

Switching frequency

1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

690 VAC

Assigned motor current IM at 690 V, 50 Hz

110% overload

8.8 A

Assigned motor current IM at 690 V, 50 Hz

150% overload

6.5 A

Assigned motor current IM at 690 V, 60 Hz

110% overload

8 A

Assigned motor current IM at 690 V, 60 Hz

150% overload

5.3 A

Assigned motor power at 690 V

60 Hz

5 HP

Assigned motor power at 690 V, 60 Hz

110% overload

7.5 HP

HS Code

8504.40

• EAN 4015081228478
• SAP 1200132356
• Code 81994419
