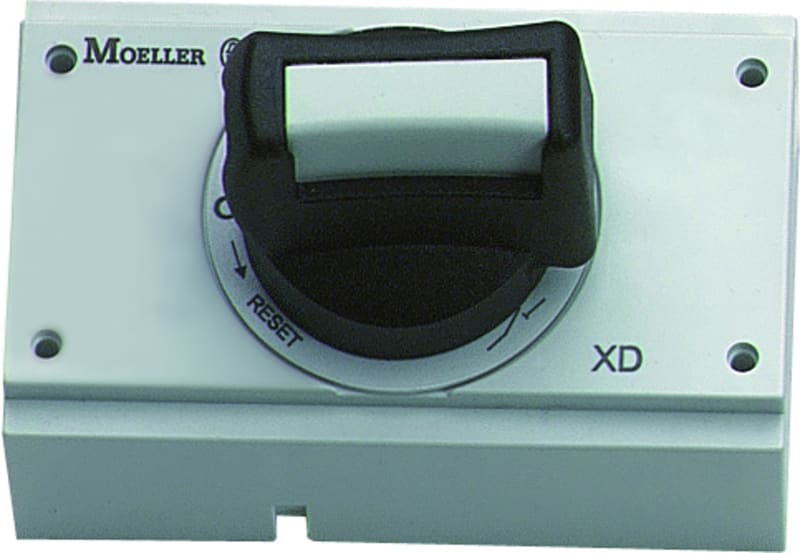

Eaton Rotary handle lockable in all positions NZM1-XDTV

Eaton NZM1-XDTV Rotary handle lockable in all positions. NZM1-XDTV.

Manufacturer part number (MPN)

NZM1-XDTV

EAN / GTIN

4015082601317

Sales unit

pcs

Eaton catalogue number

260131

Depth

80 mm

Height

54 mm

Width

90 mm

Weight

0.288 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

UL (File No. E140305); CE marking; CSA-C22.2 No. 5-09; UL listed; CSA certified; CSA (Class No. 1437-01); UL489; CSA (File No. 22086); UL (Category Control Number DIHS); IEC60947

Features

Standard: black / gray; Lockable

Fitted with

Padlock

Frame

NZM1

Special features

Complete with rotary drive and insulating surround Makes it possible to operate the switch with a rotational movement and provides locking facilities

Suitable for

Power circuit breaker; Switch disconnector

Type

Rotary handle on switch with door interlock

Used with

NZM1(-4), PN1(-4), N(S)1(-4)

Activation type

Rotary handle

Color

Black

Cover/door type

Door interlock can be defeated from the outside using a 1 mm pin; Door interlock in ON position; Door interlock can only be switched ON when the door is closed; Door interlock not defeated in the locked OFF and ON positions; Door can be opened in OFF

Degree of protection / NEMA enclosure type

IP40; 4X. 12

Locking facility

Also available with door interlock e.g. for MCC service distribution; Can also be modified in I position; Lockable on the 0 position on the handle using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90
