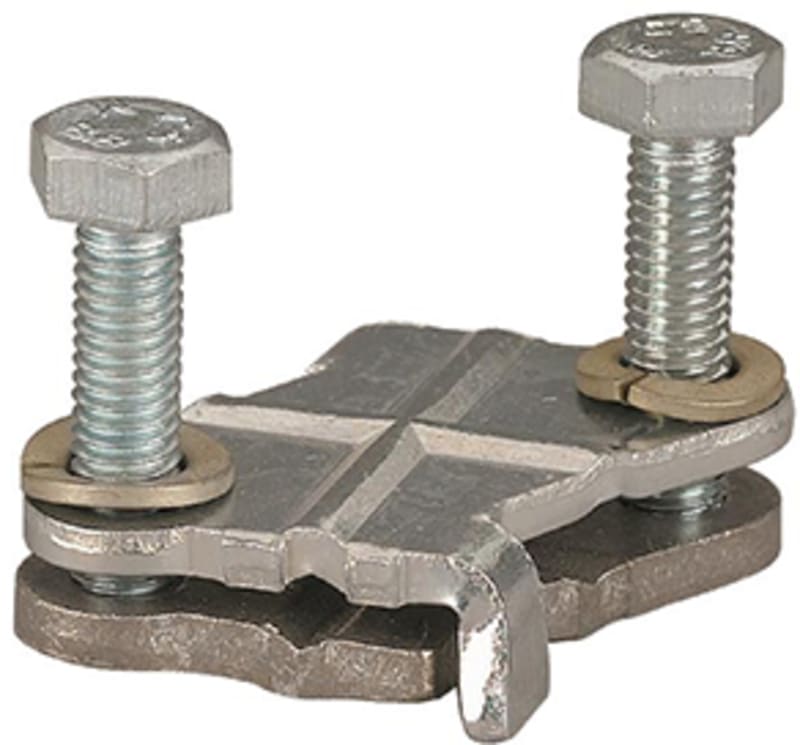

S.sk.terminal for CU 12X5
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton S.sk.terminal for CU 12X5 (part number K12X5/25) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 002324; Depth: 75 mm; Height: 65 mm; Width: 68 mm.
Technical Specifications
- Manufacturer part number (MPN)
- K12X5/25
- EAN / GTIN
- 4015080023241
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 002324
- Depth
- 75 mm
- Height
- 65 mm
- Width
- 68 mm
- Weight
- 0.045 kg
- Compliances
- RoHS conform
- Functions
- Terminal for flat strip
- Suitable for
- Flat rail; Round conductor connection; Strip conductor connection
- Used with
- Cu 12 x 5 mm busbars; Prepared enclosures; Accessory for busbar enclosures; Accessory panel building; Ci insulated enclosure
- Accessory/spare part type
- Ultra-flat busbar terminals; Busbar terminals
- Type
- Accessory for busbar enclosures Accessory panel building Ci insulated enclosure Prepared enclosures
- Rated operation current (Ie)
- 160 A; 250 A; 100 A; 200 A
- Rated operational current
- 250 A
- Rated operational current (Ie) - max
- 250 A
- Busbar thickness - max
- 5 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 12 mm
- Busbar width - min
- 12 mm
- Conductor cross section - max
- 74 mm²
- Terminal capacity (flat strip)
- 16 mm x 0.8 mm (6x); 9 mm x 0.8 mm (6x); 16 mm x 0.8 mm (4x); 9 mm x 0.8 mm (3x)
- Terminal capacity (round conductor)
- 1.5 mm² - 10 mm²; 1.5 mm² - 6 mm²
- Max. conductor cross section
- 74 mm²
- Busbar thickness
- 5 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 250 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080023241
- SAP 1000788201
- Code 81399914
Product Documentation
More from Eaton
Eaton
Digital output module;12 digital outputs
178788
Eaton
Potentiometer, Flat Front (M30C-FR2K2)
Eaton
Arbetsbock Proffs Jumbo 4-Steg
TS35X7,5
Eaton
Eaton FAZ-K16/1 Miniature Circuit Breaker — 1P, Type K, 16 A, 15 kA
Eaton
Meter Panel 3 meter MSW H425 B800 xE Basic
EP-502412
Eaton
MELDEKONT. OF/ON AND Triggered JOR
Z-NHK
Eaton
Time Module DILM32-XTED11-10(RAC240)
Eaton
Rotary switch with light, Flat Front (M30C-FWLKV-W)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy K12X5/25?
- K12X5/25 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is K12X5/25.
- What is the HS code for K12X5/25?
- The customs tariff (HS) code for K12X5/25 is 8538.90.
- Who manufactures K12X5/25?
- K12X5/25 is a Eaton product in the Electrical Components range.
- Is a datasheet available for K12X5/25?
- Yes — the K12X5/25 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for K12X5/25?
- The minimum order quantity is 1.
- Is K12X5/25 available?
- Yes — K12X5/25 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
