MELDEKONT. OF/ON AND Triggered JOR

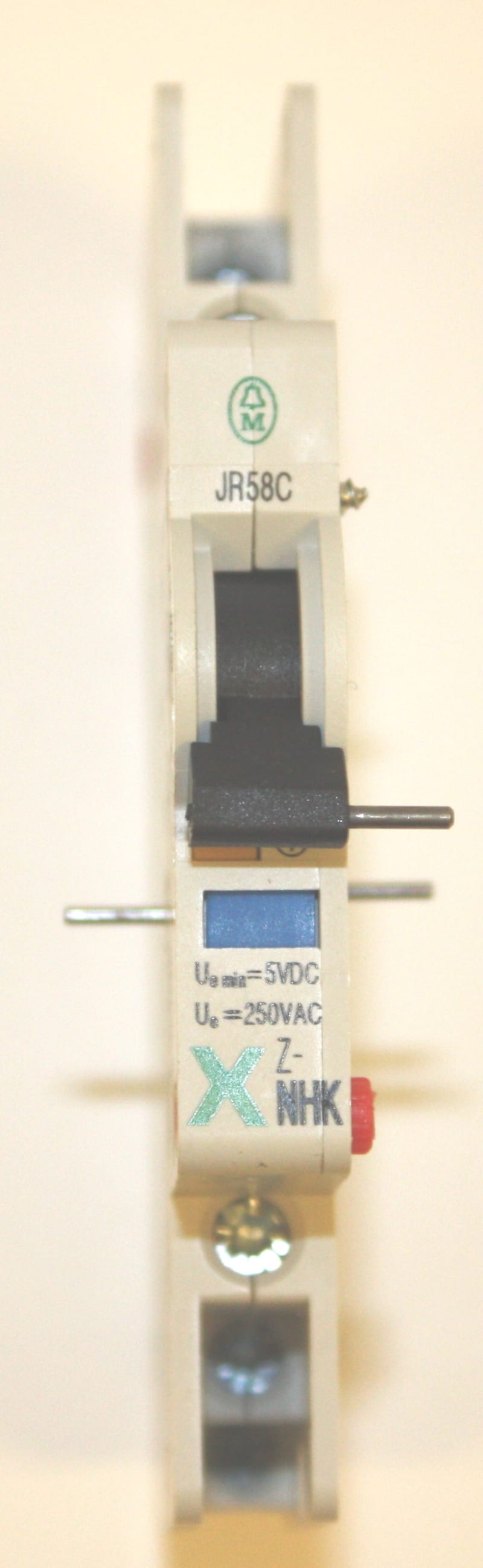

Eaton Z-NHK Signal For Triggered Detector.

Manufacturer part number (MPN)

Z-NHK

EAN / GTIN

9007912206828

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

248434

Depth

80 mm

Height

75 mm

Width

8.8 mm

Weight

0.045 kg

Compliances

RoHS conform

Certifications

CE marking; CSA (Class No. 1437-01); UL (File No. E257181); North America (UL listed, CSA certified); CSA-C22.2 No. 5-09; UL 489; IEC/EN 60898; UL (Category Control Number DIHS, DIHS7); CSA (File No. 204453); EN45545-2; IEC 61373

Used with

Trigger signal contact; Accessory; Accessory for combined residual current/power circuit breaker; Accessory for miniature circuit breaker; Accessory for residual current circuit breaker

Voltage rating

230 V AC

Amperage Rating

2 A

Accessory/spare part type

Tripping signal contacts

Degree of protection

UL/CSA Type: -; IP40; IP20 (IEC)

Frame

Standard front dimension: 45 mm

Frequency rating

50 Hz / 60 Hz

Rated impulse withstand voltage (Uimp)

2.5 kV

Mounting method

For fitting on right to: FI; For fitting on left to: LS, FI/LS; Can be fitted to left of FAZ-…-NA, FAZ-…-RT, FAZ-XAA-NA…

Additional equipment required

Signaling switch

Admissible back-up fuse - max

6 A gL

Terminal protection

Busbar tag shroud to BGV A3

Terminal type

Lift terminals

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-5 °C

Assembly width

0.5

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

2 A

Enclosure width

80 mm

Number of contacts (change-over contacts)

2

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Number of poles at main contact unit - max

2

Number of switches (fault signal)

0

Rated conditional short-circuit current (Iq) with 6 a back-up fuse

1 kA

Rated insulation voltage (Ui)

250 VAC

Voltage type

AC

Functions

Auxiliary switch

Contact function

2 C/O

Device fitting

Universal

Type

Accessory Accessory for combined residual current/power circuit breaker Accessory for miniature circuit breaker Accessory for residual current circuit breaker

Application

Switchgear for industrial and advanced commercial applications

Mounting width

8.8 mm (0.5 space units)

Rated operational voltage (Ue) - max

250 V

Rated switch current

4 A

Suitable for current of main contact unit - max

4 A

Voltage rating per contact - min

5 VDC

Rated operational current

2 A (250 V AC-15); 3 A (250 V AC-12); 0.5 A (110 V DC-13)

Rated voltage

250 V

Installed at the factory

No

Width in number of modular spacings

0.5

Additional equipment

Signalling switch

Voltage type for actuating

AC

Number of contacts as change-over contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Suitable for max. current main contact unit

4 A

Country of origin

Serbia

HS Code

8536.50

• EAN 9007912206828
• SAP 1000039721
• Code 8752743
