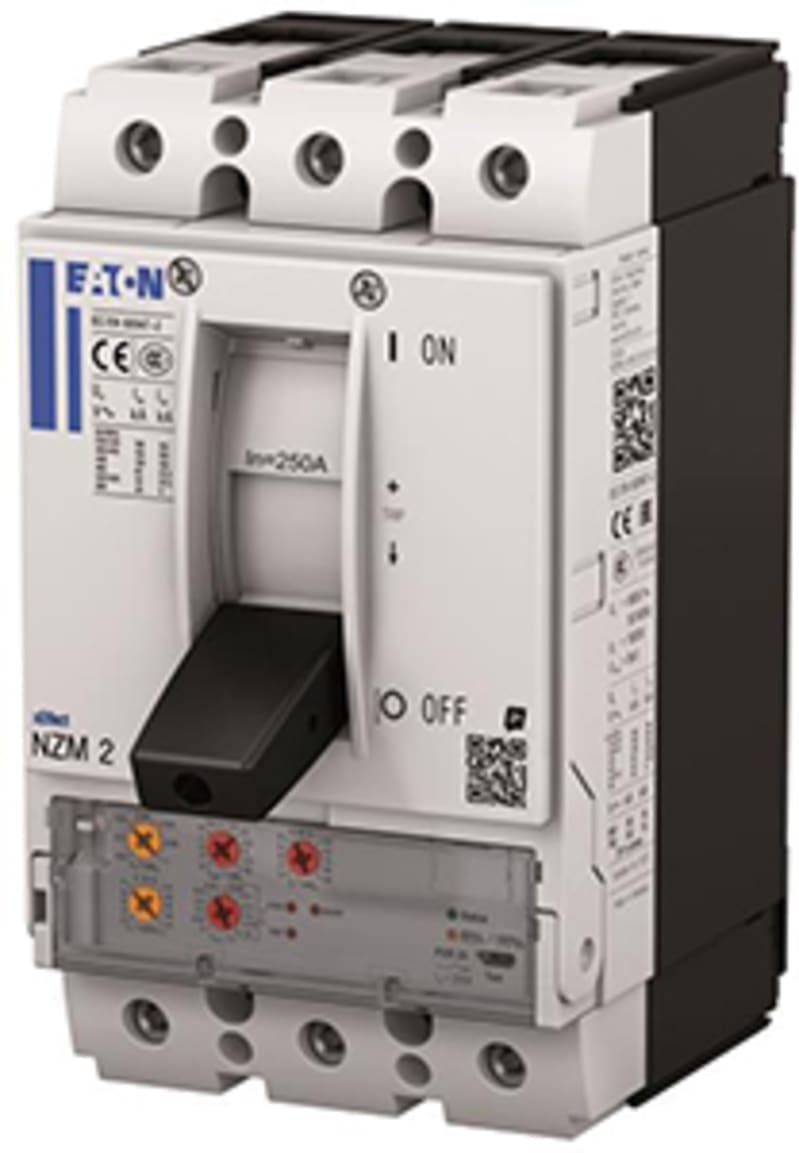

Eaton NZMH2-VX250-S1 Molded-Case Circuit Breaker 3-Pole 250A 150KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM2 molded-case circuit breaker, type NZMH2-VX250-S1. 3-pole, rated current 250 A, breaking-capacity class H, frame size NZM2 (up to 250 A). Rated operational voltage 1000 V AC; rated ultimate short-circuit breaking capacity (Icu) 150 kA at 400/415 V AC to IEC/EN 60947-2. Electronic trip unit — adjustable overload with time-selective short-circuit protection (LSI). 1000 V AC circuit-breaker (NZM…-S1 range). Utilization category A, suitable for isolation.
Technical Specifications
- Manufacturer part number (MPN)
- NZMH2-VX250-S1
- Series
- Eaton NZM2 (Moeller series NZM)
- Type
- Molded-case circuit breaker (MCCB)
- Breaking-capacity class
- H (high breaking capacity)
- Number of poles
- 3-Pole
- Rated current (In)
- 250 A
- Frame size
- NZM2 (up to 250 A)
- Rated operational voltage (Ue)
- 1000 V AC
- Rated insulation voltage (Ui)
- 800 V
- Rated ultimate short-circuit breaking capacity (Icu) at 400/415 V AC
- 150 kA
- Trip unit / release
- Electronic trip unit — adjustable overload with time-selective short-circuit protection (LSI)
- Utilization category
- A
- Suitable for isolation
- Yes
- Standard
- IEC/EN 60947-2
- Configuration
- 1000 V AC circuit-breaker (NZM…-S1 range)
- EAN / GTIN
- 4015081921836
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- Eaton NZM
- HS Code
- 8536.20
Cross References
- EAN 4015081921836
- SAP 1200601095
- Code 82989366
