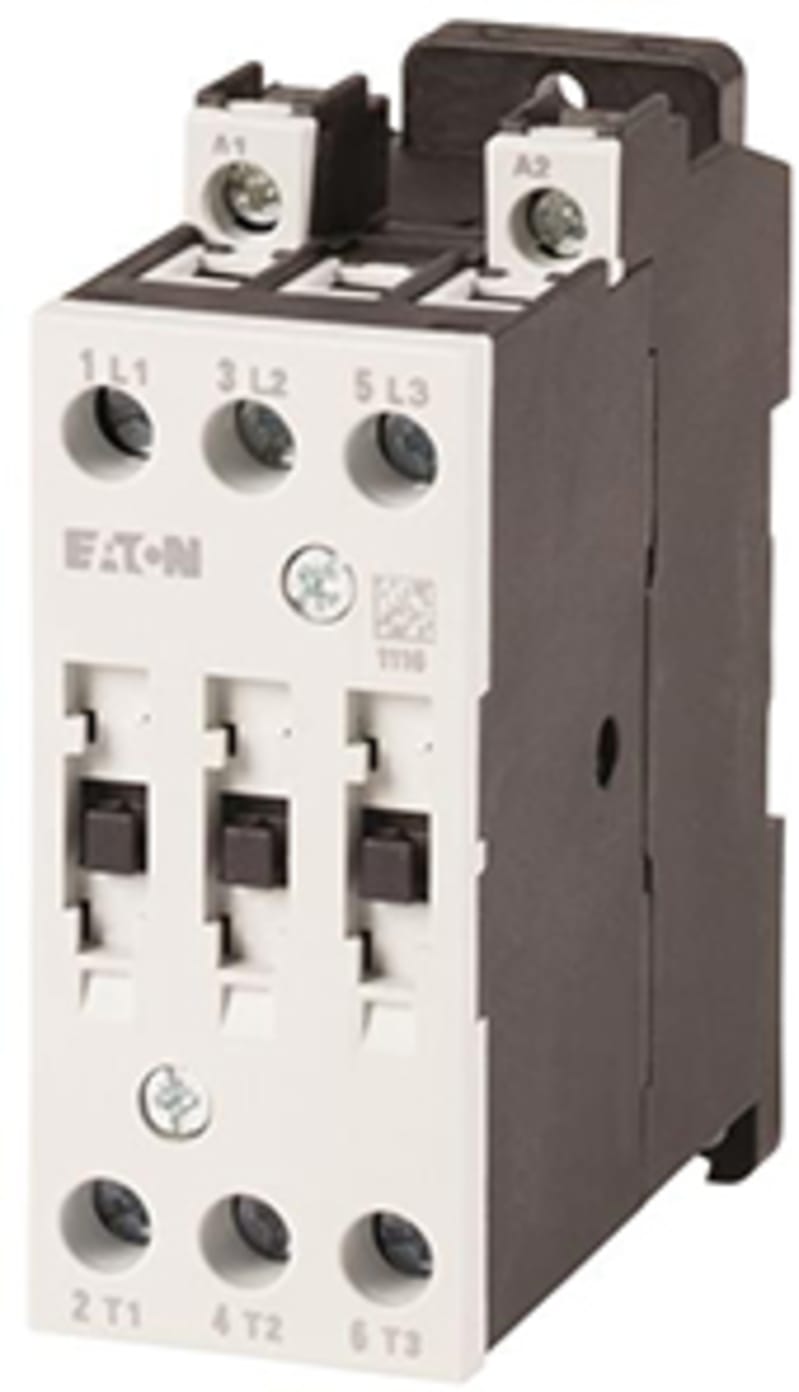

Eaton DILMT25 Contactor 3-pole 11 kW 230 V AC 50 Hz (DILMT25(230V50HZ/240V60HZ))

Eaton DILMT25(230V50HZ/240V60HZ) Contactor, 3 pole, 380 V 400 V: 11 kW, 230 V 50 Hz, 240 V 60 Hz, AC operated, screw terminals.

Manufacturer part number (MPN)

DILMT25(230V50HZ/240V60HZ)

EAN / GTIN

4015081912216

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

190998

Depth

97.5 mm

Height

82 mm

Width

36 mm

Weight

0.36 kg

Certifications

EN 60335-1; GB14048; IEC/EN 60947

Catalog Notes

Also tested according to AC-3e. Also suitable for motors with efficiency class IE3.

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated breaking capacity at 380/400 V

200 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

35 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

25 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

25 A

Rated operational power at AC-3, 380/400 V, 50 Hz

11 kW

Rated operational voltage (Ue) at AC - max

660 V

Number of poles

Three-pole

Application

Contactors for Motors

Connection to SmartWire-DT

No

Degree of protection

IP20

Frame size

FS2

Lifespan, electrical

1,000,000 Operations (at 400V, AC-3)

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Rated impulse withstand voltage (Uimp)

6000 V AC

Used with

DILT-XHI01(10)

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Pick-up voltage

0.85 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

0 VA, Dual-frequency coil in a cold state and 1.0 x Us; 85 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

0 VA, Dual-frequency coil in a cold state and 1.0 x Us; 85 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

8 W, Dual-frequency coil in a cold state and 1.0 x Us; 2.6 VA, Coil in a cold state and 1.0 x Us; 0 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

8.1 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 0 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 0 W, Dual-frequency coil in a cold state and 1.0 x Us; 2.5 W, Dual-frequency coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

240 V

Screw size

M5, Terminal screw; M3.5, Terminal screw

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 2, Terminal screw, Control circuit cables, Pozidriv screwdriver

Stripping length (main cable)

14 mm

Terminal capacity (solid)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²; 1 x (1 - 10) mm², Main cables

Terminal capacity (stranded)

1 x (1 - 4) mm²; 2 x (1 - 4) mm²

Tightening torque

0.8 Nm, Screw terminals; 2 Nm, Threaded ring

HS Code

8536.90

• EAN 4015081912216
• SAP 1200520002
• Code 82663185
