Dreieretningsconnection

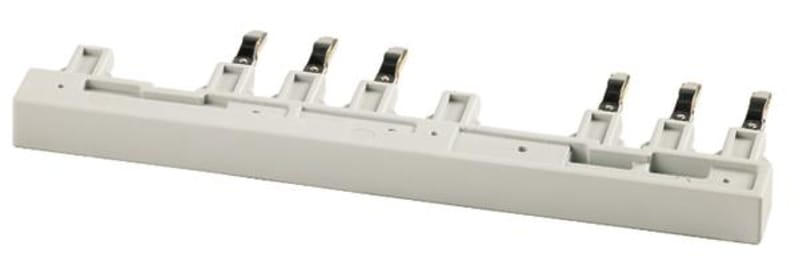

Eaton DILM12-XR Dreieretningskobling, for DILM7-M12.

Manufacturer part number (MPN)

DILM12-XR

EAN / GTIN

4015081096657

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

110099

Depth

90 mm

Height

31 mm

Width

7 mm

Weight

0.013 kg

Compliances

CE Marked

Certifications

UL 508; EN 60947-4-1; CSA Std. C22.2 No. 14-05; IEC 60947-4-1; UL Category Control No.: NLRV; UL File No.: E36332; CSA Class No.: 3211-05; UL; CSA; CSA-C22.2 No. 14-05; CSA File No.: 012528; IEC/EN 60947-4-1; CE

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent Pvid

2.1 W

Heat dissipation per pole, current-dependent Pvid

0.7 W

Rated operational current for specified heat dissipation (In)

22 A

Rated operational voltage (Ue) at AC - max

415 V

Rated operational voltage (Ue) at AC - min

230 V

Functions

To assemble reversing starters with tool-less plug connection

Accessory/spare part type

Connecting bridge

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Type

Connection system SmartWire

Used with

DILM7-DILM12

Type of accessory/spare part

Connecting bridge

Accessory

Yes

Spare part

No

Country of origin

Czechia

HS Code

8538.90
