Eaton 259736 NZM1-XAL24AC/DC Shunt Release 24 V AC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description

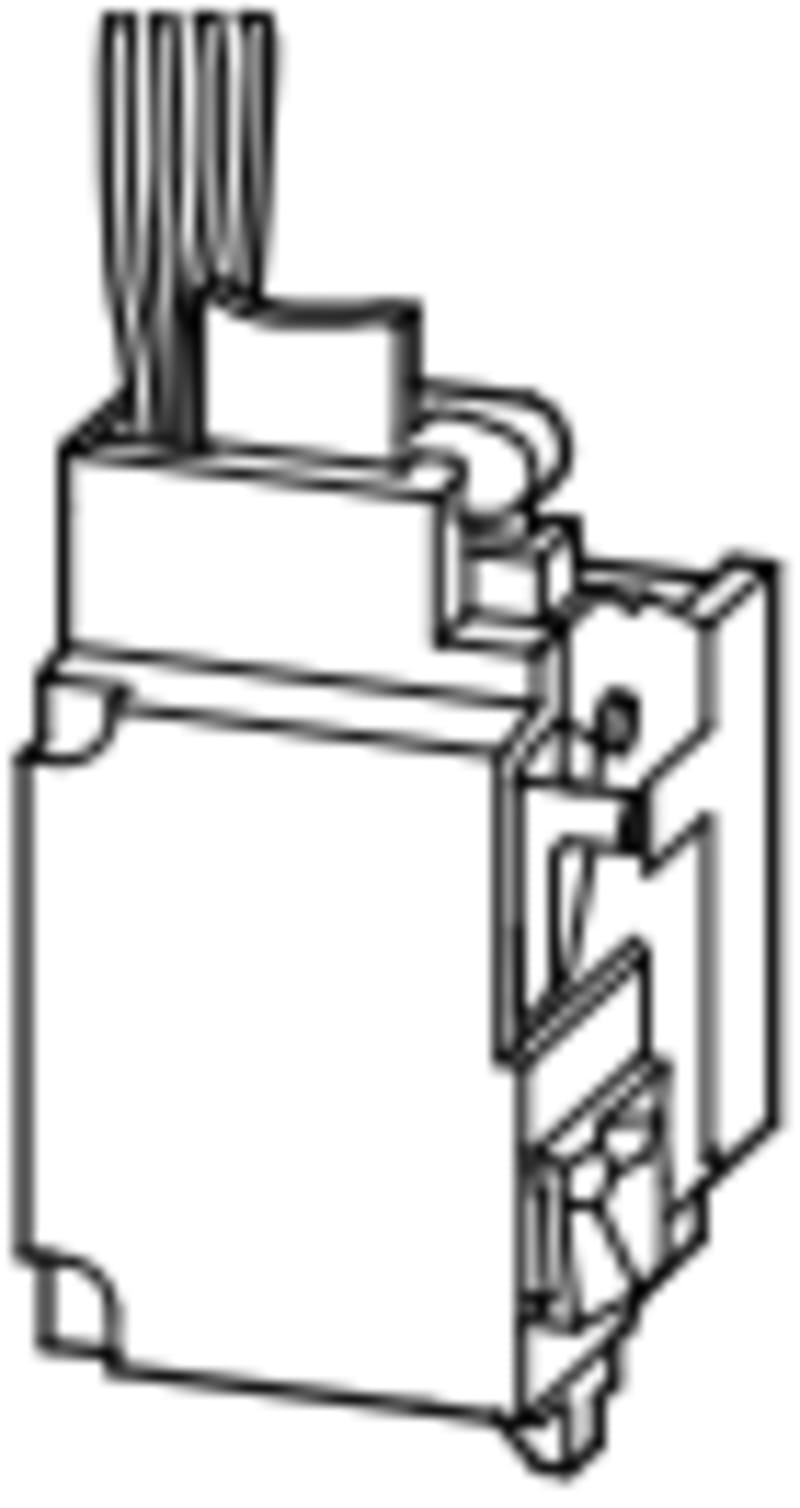

Eaton NZM1-XAL24AC/DC (259736) is an accessory shunt release for NZM1 and N(S)1 series circuit breakers with a 24 V AC/DC control supply and a screw connection. It reacts in about 20 ms with a minimum command time of 10 to 15 ms and a 2.5 VA/W pick-up power. The unit is 32 mm wide, 66 mm high and 37 mm deep.
Technical Specifications
- Manufacturer part number (MPN)
- 259736 EAN / GTIN: 4015082597368 Sales unit: pcs Eaton catalogue number: 259736 Depth: 37 mm Height: 66 mm Width: 32 mm Weight: 0.044 kg Compliances: UL/CSA; IEC; RoHS conform Certifications: CSA (File No. 22086); UL489; UL listed; CSA (Class No. 1437-01); UL (Category Control Number DIHS); IEC60947; UL (File No. E140305); CE marking; CSA-C22.2 No. 5-09; CSA certified Frame: NZM1 Suitable for: Off-load switch Type: Accessory Shunt release Used with: NZM1(-4), N(S)1(-4) Electric connection type: Screw connection Frequency rating: 50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release) minimum command time - max: 15 ms minimum command time - min: 10 ms Pick-up power consumption (shunt release): 2.5 VA/W Rated control supply voltage: 24 V AC/DC Rated control supply voltage (Us) at AC, 50 Hz - max: 24 V Rated control supply voltage (Us) at AC, 50 Hz - min: 24 V Rated control supply voltage (Us) at AC, 60 Hz - max: 24 V Rated control supply voltage (Us) at AC, 60 Hz - min: 24 V Rated control supply voltage (Us) at DC - max: 24 V Rated control supply voltage (Us) at DC - min: 24 V Rated control voltage (relay contacts): 24 V DC; 24 V AC Reaction time: 20 ms Time on duty - max: ∞ Voltage rating: 0.7 - 1.1 x Us Voltage rating at AC (x Us) - max: 1.1 Voltage rating at AC (x Us) - min: 0.7 Voltage type: AC/DC Connection type: With 3 m connection cable instead of screw termination Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 0 Suitable for off-load switch: Yes Suitable for overload relay: No Type of electric connection: Screw connection Rated control supply voltage AC 50 Hz: 24 V Rated control supply voltage AC 60 Hz: 24 V Rated control supply voltage DC: 24 V Suitable for motor safety switch: No Suitable for power circuit breaker: No Voltage type for actuating: AC Country of origin: Romania
