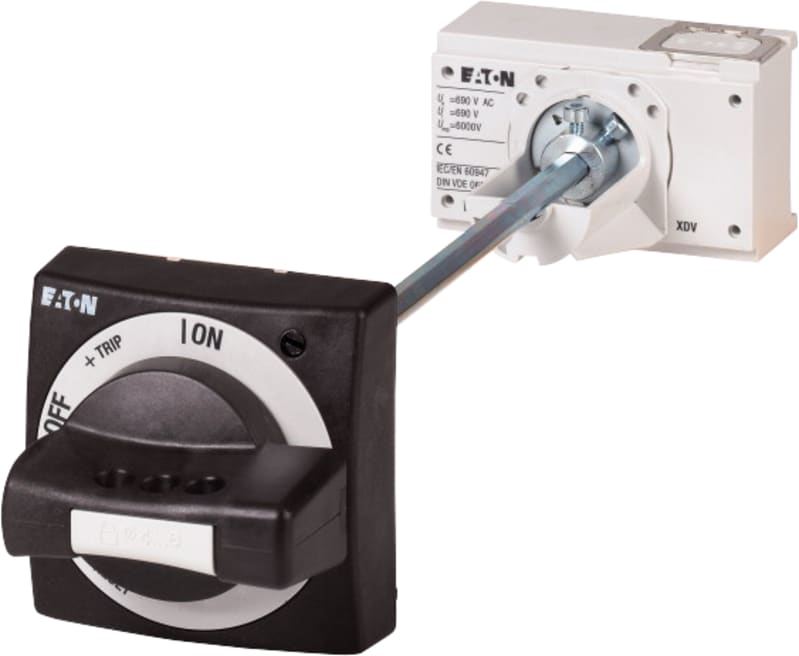

Eaton NZM2 Lockable Door-Coupling Rotary Handle Black
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM2-XTVD is a lockable door-coupling rotary handle in black for operating NZM2 and PN2 series circuit breakers and switch-disconnectors through a closed control-panel door. The handle accepts up to three padlocks on the 0 position and provides IP66 / Type 4X / Type 12 protection when correctly mounted. An extension shaft is required and ordered separately.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XTVD
- EAN / GTIN
- 4015082601683
- Sales unit
- pcs
- Eaton catalogue number
- 260168
- Depth
- 100 mm
- Height
- 190 mm
- Width
- 110 mm
- Weight
- 0.736 kg
- Compliances
- UL/CSA; IEC; RoHS conform
- Certifications
- UL489; CE marking; CSA-C22.2 No. 5-09; CSA (File No. 22086); UL (Category Control Number DIHS); IEC60947; CSA certified; CSA (Class No. 1437-01); UL (File No. E140305); UL listed
- Features
- Standard: black / gray; Lockable
- Fitted with
- Padlock
- Frame
- NZM2
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Switch disconnector; Power circuit breaker
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM2(-4), PN2(-4), N(S)2(-4)
- Color
- Black
- Cover/door type
- Door can be opened in OFF; Door interlock not defeated in the locked OFF and ON positions; Door interlock can be modified in the unlocked ON position; Door interlock can be modified such that it can be defeated from the outside using a screwdriver
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Single lockable
- Locking facility
- Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601683
- SAP 1000034778
- Code 8254666
