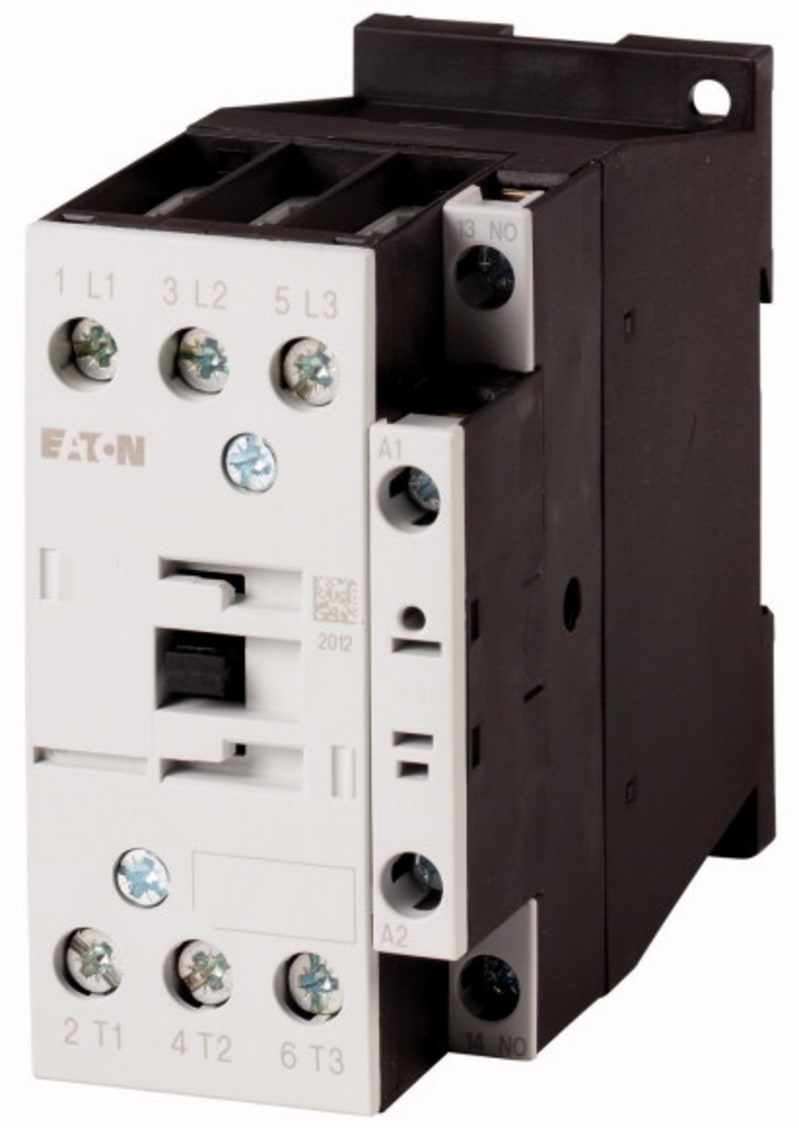

CONTACTOR,32A AC-3, DC Coil (DILM32-10(RDC24))

Eaton DILM32-10(RDC24) Contactor 3-pole, 24 VDC incl. 1NO.

Manufacturer part number (MPN)

DILM32-10(RDC24)

EAN / GTIN

4015082772741

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

277274

Depth

97 mm

Height

85 mm

Width

45 mm

Weight

0.534 kg

Certifications

CSA File No.: 012528; CSA Class No.: 2411-03, 3211-04; IEC/EN 60947; CSA-C22.2 No. 60947-4-1-14; UL; CE; CSA; VDE 0660; UL File No.: E29096; UL 60947-4-1; IEC/EN 60947-4-1; UL Category Control No.: NLDX

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

In conjunction with DIL-SWD SmartWire DT contactor module; Yes

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (normally open contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

90 A

Conventional thermal current Ith (3-pole, enclosed)

36 A

Conventional thermal current Ith at 55°C (3-pole, open)

42 A

Conventional thermal current Ith at 60°C (3-pole, open)

40 A

Conventional thermal current Ith of main contacts (1-pole, open)

100 A

Equipment heat dissipation, current-dependent Pvid

6.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

2.2 W

Rated operational current for specified heat dissipation (In)

32 A

Static heat dissipation, non-current-dependent Pvs

0.9 W

Rated breaking capacity at 220/230 V

320 A

Rated breaking capacity at 380/400 V

320 A

Rated breaking capacity at 500 V

320 A

Rated breaking capacity at 660/690 V

180 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

384 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

45 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

32 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

32 A

Rated operational current (Ie) at AC-3, 440 V

32 A

Rated operational current (Ie) at AC-3, 500 V

32 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

18 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

15 A

Rated operational current (Ie) at AC-4, 440 V

15 A

Rated operational current (Ie) at AC-4, 500 V

15 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

12 A

Rated operational current (Ie) at DC-1, 110 V

40 A

Rated operational current (Ie) at DC-1, 220 V

40 A

Rated operational current (Ie) at DC-1, 60 V

40 A

Rated operational power at AC-3, 240 V, 50 Hz

11 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

15 kW

Rated operational power at AC-3, 415 V, 50 Hz

19 kW

Rated operational power at AC-3, 440 V, 50 Hz

20 kW

Rated operational power at AC-3, 500 V, 50 Hz

23 kW

Rated operational power at AC-3, 690 V, 50 Hz

17 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

4 kW

Rated operational power at AC-4, 240 V, 50 Hz

4.5 kW

Rated operational power at AC-4, 415 V, 50 Hz

7.5 kW

Rated operational power at AC-4, 440 V, 50 Hz

8 kW

Rated operational power at AC-4, 500 V, 50 Hz

9 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

10 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Suppressor circuit in actuating electronics

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (DC operated)

Operating frequency

5000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

2.7 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

DC

Frame size

FS2

Arcing time

10 ms

Drop-out voltage

0.6 - 0.15 x UC, DC operated; At least smoothed two-phase bridge rectifier or three-phase rectifier

Duty factor

100 %

Pick-up voltage

24 - 27 V DC (RDC 24); 0.7 - 1.2 V DC x Uc

Power consumption (pick-up) at DC

12 W

Power consumption (sealing) at DC

0.9 W

Rated control supply voltage (Us) at DC - max

27 V

Rated control supply voltage (Us) at DC - min

24 V

Switching time (DC operated, make contacts, closing delay) - max

47 ms

Switching time (DC operated, make contacts, opening delay) - max

30 ms

Assigned motor power at 115/120 V, 60 Hz, 1-phase

2 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

10 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

5 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

10 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

20 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

25 HP

Safe isolation

440 V AC, Between coil and contacts, According to EN 61140; 440 V AC, Between the contacts, According to EN 61140

Short-circuit current rating (basic rating)

5 kA, SCCR (UL/CSA); 125 A, max. Fuse, SCCR (UL/CSA); 125 A, max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

10/65 kA, CB, SCCR (UL/CSA); 10/100 kA, Fuse, SCCR (UL/CSA); 50/32 A, max. CB, SCCR (UL/CSA); 125/70 A, Class J, max. Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

10/100 kA, Fuse, SCCR (UL/CSA); 125/125 A, Class J, max. Fuse, SCCR (UL/CSA); 10/22 kA, CB, SCCR (UL/CSA); 50/32 A, max. CB, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

125 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

63 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

63 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

35 A gG/gL

Special purpose rating of definite purpose rating

192 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 32 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Special purpose rating of elevator control

7.5 HP, 200 V 60 Hz 3-ph, (UL/CSA); 22 A, 240 V 60 Hz 3-ph, (UL/CSA); 22 A, 600 V 60 Hz 3-ph, (UL/CSA); 25.3 A, 200 V 60 Hz 3-ph, (UL/CSA); 7.5 HP, 240 V 60 Hz 3-ph, (UL/CSA); 20 HP, 480 V 60 Hz 3-ph, (UL/CSA); 20 HP, 600 V 60 Hz 3-ph, (UL/CSA); 27 A, 480 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of refrigeration control (CSA only)

30 A, FLA 600 V 60 Hz 3phase; (CSA); 240 A, LRA 480 V 60 Hz 3phase; (CSA); 180 A, LRA 600 V 60 Hz 3phase; (CSA); 40 A, FLA 480 V 60 Hz 3phase; (CSA)

Special purpose rating of resistance air heating

40 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA); 40 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of tungsten incandescent lamps

40 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 40 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of ballast electrical discharge lamps

40 A (600V 60Hz 3phase, 347V 60Hz 1phase); 40 A (480V 60Hz 3phase, 277V 60Hz 1phase)

Switching capacity (auxiliary contacts, general use)

1 A, 250 V DC, (UL/CSA); 10 A, 600 V AC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); P300, DC operated (UL/CSA)

Switching capacity (main contacts, general use)

40 A, Maximum motor rating (UL/CSA)

Screw size

M5, Terminal screw, Main cables; M3.5, Terminal screw, Control circuit cables

HS Code

8536.90
