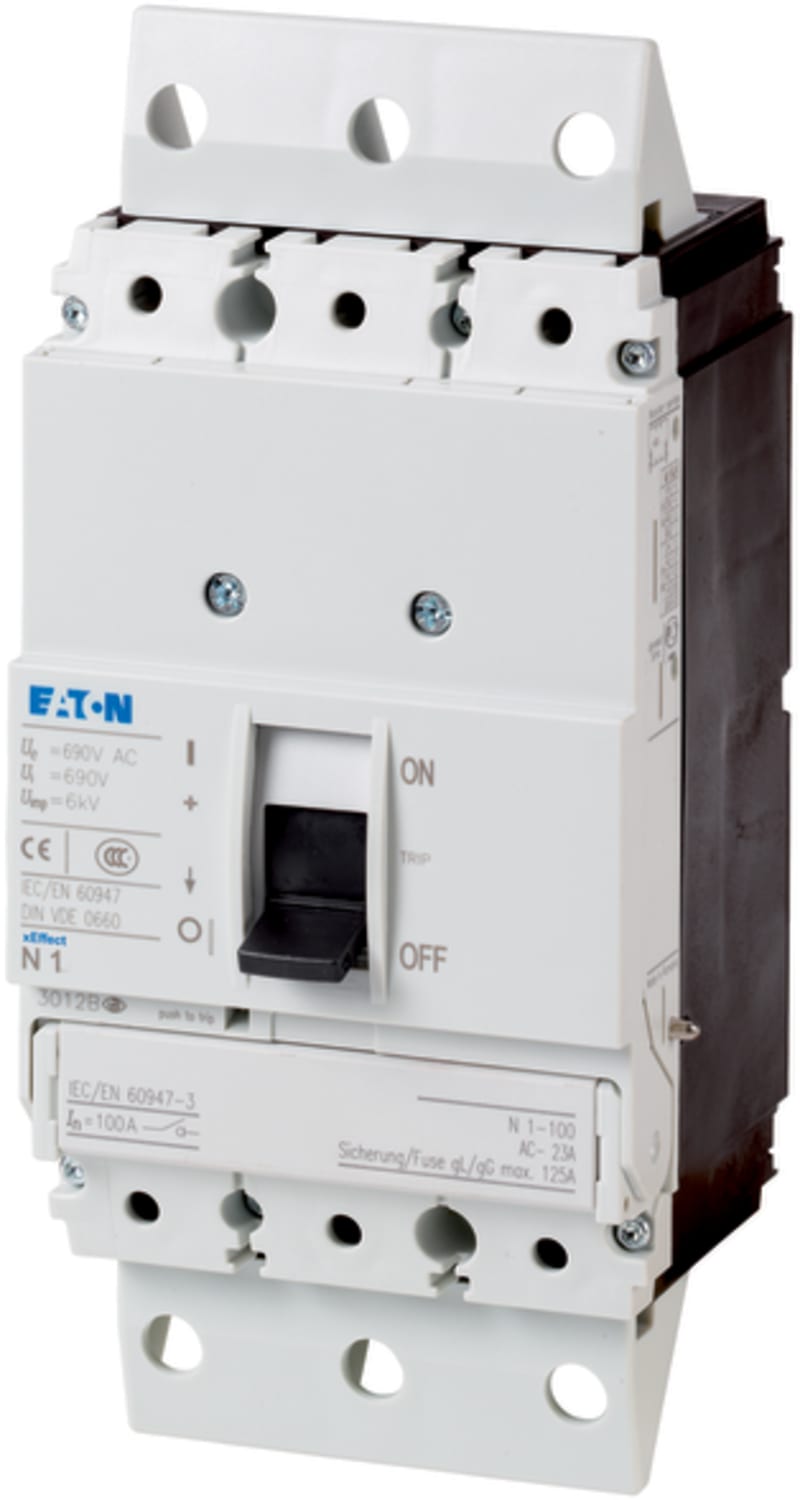

Eaton Pluggable N1 load-break switch 100A 3-Pole

Eaton N1-100-SVE Pluggable N1 load-break switch 100A 3-pole.

Manufacturer part number (MPN)

N1-100-SVE

EAN / GTIN

4015081132706

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

113730

Depth

90 mm

Height

201 mm

Width

95 mm

Weight

1.028 kg

Compliances

RoHS conform

Certifications

IEC/EN 60947; IEC

Functions

Disconnectors/main switches; Voltage release optional; Interlockable

Accessories required

NZM2-XSVS socket base

Amperage Rating

100 A

Application

Use in unearthed supply systems at 690 V

Circuit breaker frame type

N1

Features

Version as main switch; Version as emergency stop installation; Version as maintenance-/service switch

Number of poles

Three-pole

Special features

Main switch characteristics including positive drive to IEC/EN 60204 and VDE 0113. Isolating characteristics to IEC/EN 60947-3 and VDE 0660. Busbar tag shroud to VDE 0160 Part 100. Rated current = rated uninterrupted current: 100 A

Type

Switch-disconnector

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Equipment heat dissipation, current-dependent

11.4 W

Rated operational current for specified heat dissipation (In)

100 A

Direction of incoming supply

As required

Electrical connection type of main circuit

Frame clamp

Handle type

Rocker lever

Isolation

500 V AC (between auxiliary contacts and main contacts); 300 V AC (between the auxiliary contacts)

Lifespan, electrical

1000 operations at 415 V AC-23A; 1000 operations at 690 V AC-23A; 10000 operations at 415 V AC-1; 10000 operations at 400 V AC-1; 1000 operations at 400 V AC-23A; 7500 operations at 690 V AC-1

Number of operations per hour - max

120

Overvoltage category

III

Pollution degree

3

Rated conditional short-circuit current with back-up fuse

80 kA at 690 V; 100 kA at 400/415 V; 100 gG/gL

Rated conditional short-circuit current with downstream fuse

100 kA at 400/415 V; 100 gG/gL; 10 kA at 690 V

Rated impulse withstand voltage (Uimp) at auxiliary contacts

6000 V

Rated impulse withstand voltage (Uimp) at main contacts

6000 V

Rated insulation voltage (Ui)

690 V

Rated operating frequency

50 Hz

Rated operating power at AC-23, 400 V

55 kW

Rated operating voltage (Ue) at AC - max

690 V

Rated operational current

160 A (690 V AC-22/23A, making and breaking capacity); 160 A (415 V AC-22/23A, making and breaking capacity)

Rated short-circuit making capacity Icm at 690 V, 50/60 Hz

2.8 kA

Rated short-time withstand current (Icw)

2 kA

Rated short-time withstand current (t = 0.3 s)

2 kA

Rated short-time withstand current (t = 1 s)

2 kA

Short-circuit protective device fuses - max

125 A gL

Voltage rating

690 V - 690 V

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Degree of protection

IP20 (basic protection type, in the area of the HMI devices); Other

Degree of protection (IP), front side

IP20; IP40 (with insulating surround); IP66 (with door coupling rotary handle)

Degree of protection (terminations)

IP10 (tunnel terminal); IP00 (terminations, phase insulator and band terminal)

Handle color

Black

Lifespan, mechanical

20000 operations

Mounting Method

Intermediate mounting; Ground mounting; Built-in device plug-in technique; Distribution board installation; Plug-in unit

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of switches

1

Protection against direct contact

Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110

Shock resistance

20 g (half-sinusoidal shock 20 ms)

Switch positions

I, +, 0

Terminal capacity (aluminum solid conductor/cable)

16 mm² (1x) at tunnel terminal; 10 mm² - 16 mm² (1x) direct at switch rear-side connection; 10 mm² - 16 mm² (2x) direct at switch rear-side connection

Terminal capacity (aluminum stranded conductor/cable)

25 mm² - 95 mm² (1x) at 1-hole tunnel terminal

Terminal capacity (copper busbar)

M6 at rear-side screw connection; Max. 16 mm x 5 mm direct at switch rear-side connection; Min. 12 mm x 5 mm direct at switch rear-side connection

Terminal capacity (copper solid conductor/cable)

10 mm² - 16 mm² (1x) direct at switch rear-side connection; 6 mm² - 16 mm² (2x) at box terminal; 6 mm² - 16 mm² (2x) direct at switch rear-side connection; 16 mm² (1x) at tunnel terminal; 10 mm² - 16 mm² (1x) at box terminal

Terminal capacity (copper strip)

Max. 9 segments of 9 mm x 0.8 mm at box terminal; Min. 2 segments of 9 mm x 0.8 mm at box terminal
