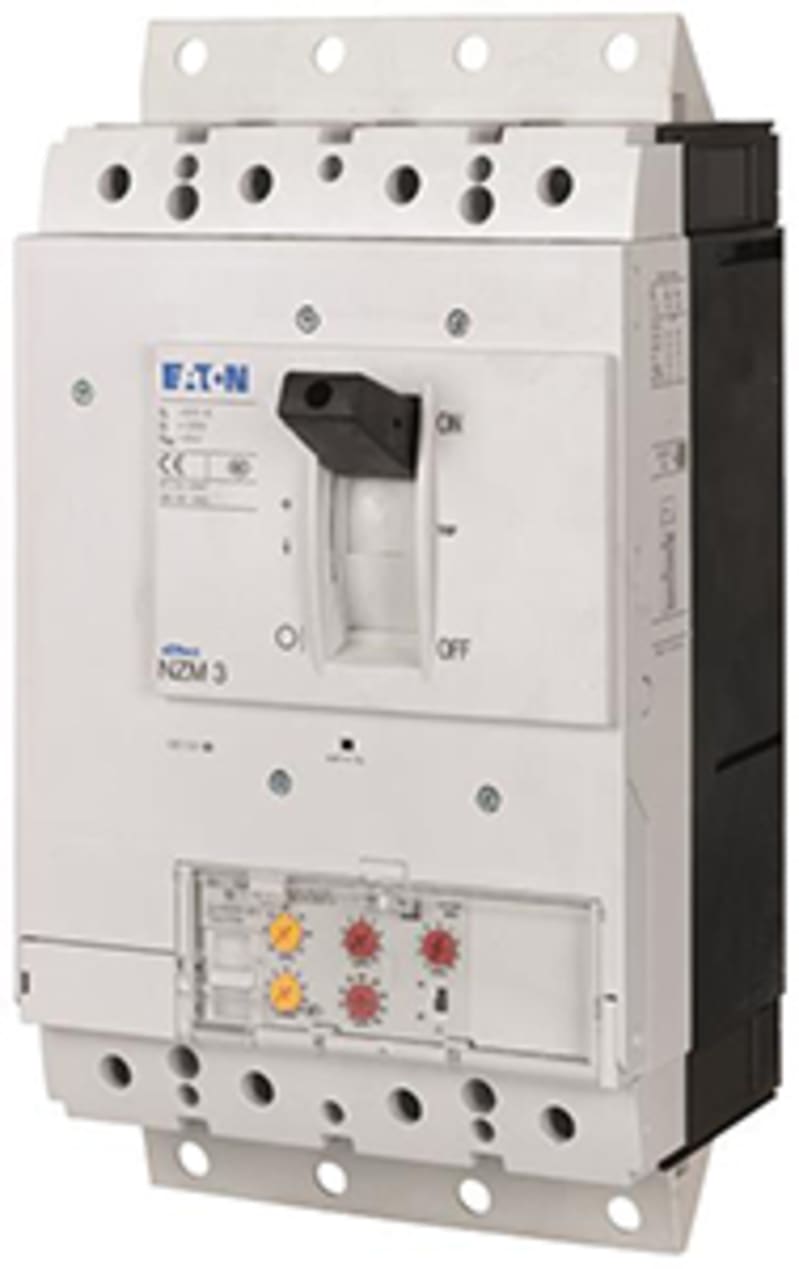

Eaton Pluggable powerbr NZMS3-4-VE630/400-SVE
Part numberNZMS3-4-VE630/400-SVEEAN / GTIN4015081650156HS code8536.20
Electrical Components
Moulded Case Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZMS3-4-VE630/400-SVE Pluggable effektbr.630/400A/4p.
Technical Specifications
- Manufacturer part number (MPN)
- NZMS3-4-VE630/400-SVE
- EAN / GTIN
- 4015081650156
- Sales unit
- pcs
- Eaton catalogue number
- 168539
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 185 mm
- Weight
- 10.04 kg
- Compliances
- RoHS conform
- Amperage Rating
- 630 A
- Features
- Motor drive optional; Protection unit
- Number of poles
- Four-pole
- Equipment heat dissipation, current-dependent
- 178.61 W
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 7560 A
- Instantaneous current setting (Ii) - min
- 1260 A
- Overload current setting (Ir) - max
- 630 A
- Overload current setting (Ir) - min
- 315 A
- Short delay current setting (Isd) - max
- 6300 A
- Short delay current setting (Isd) - min
- 630 A
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Mounting Method
- Built-in device plug-in technique
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Position of connection for main current circuit
- Back side
- Document Name
- Description Action
- Rated permanent current Iu
- 630 A
- With integrated under voltage release
- No
- Overload release current setting
- 315–630 A
- Rated voltage
- 690 V
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 65 kA
- Adjustment range short-term delayed short-circuit release
- 630–6300 A
- Adjustment range undelayed short-circuit release
- 1260–7560 A
- Suitable for DIN rail (top hat rail) mounting
- No
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device plug-in technique
- DIN rail (top hat rail) mounting optional
- No
- Complete device with protection unit
- Yes
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4015081650156
- SAP 1200601040
- Code 82988784
Product Documentation
Document preview: Eaton Pluggable powerbr — Specification Data Sheet (OEM)
