Eaton

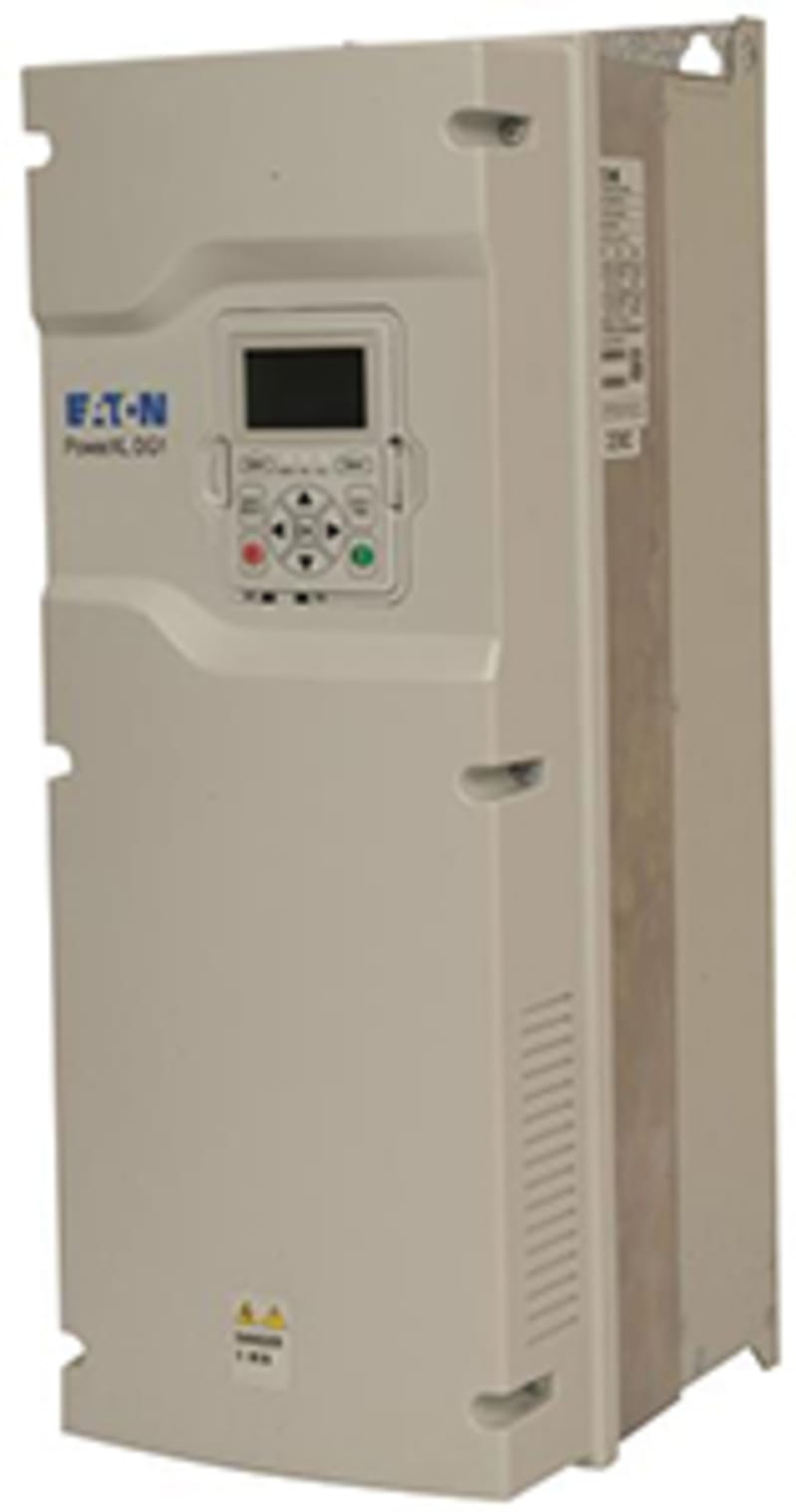

DG1 variable-frequency drive 400V: 22kW
Part numberDG1-34046FB-C54CEAN / GTIN4015081710898HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DG1 variable-frequency drive 400V: 22kW (part number DG1-34046FB-C54C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Power: 22 kW; Voltage: 400 V; Width: 200 mm; Height: 558 mm.
Technical Specifications
- Manufacturer part number (MPN)
- DG1-34046FB-C54C
- EAN / GTIN
- 4015081710898
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 22 kW
- Voltage
- 400 V
- Width
- 200 mm
- Height
- 558 mm
- Depth
- 252 mm
- Power consumption
- 818 W
- With control element
- Yes
- Number of digital inputs
- 8
- Number of digital outputs
- 1
- Number of analogue inputs
- 2
- Number of analogue outputs
- 2
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP54
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of interfaces PROFINET
- 1
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 44 kW
- Max. output at quadratic load at rated output voltage
- 30 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 480 V
- Nominal output current I2N
- 61 A
- Supporting protocol for BACnet
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081710898
- SAP 1200123790
- Code 81987624
Product Documentation
Document preview: DG1 variable-frequency drive 400V: 22kW (DG1-34046FB-C54C) — Specification sheet
More from Eaton
Eaton
White cabinet B=800 H=2060 D=300 (BP-F-800/20/3-P-W)
Eaton
Cabinet H×W×D=1800X1200X600MM (XVTL-MP/BX/IC-12/6/18)
Eaton
Switch-disconnector,DCM-40/1-SK+FM
Eaton
Cabinet B=600 H=1760 D=300 (BP-F-600/17/3)
Eaton
LED Strobe light, Green, 24V (SL7-FL24-G)
Eaton

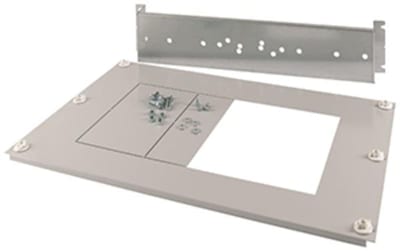

NH switch unit 160A (BPZ-XNH00X-4/1-600-MV-W)
Eaton

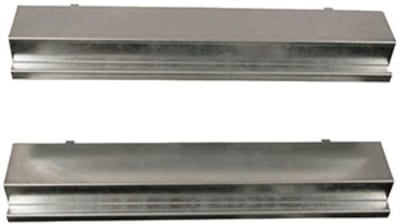

Montasjehjelp XVTL-IC (XVTL-FITUP-3)
Eaton

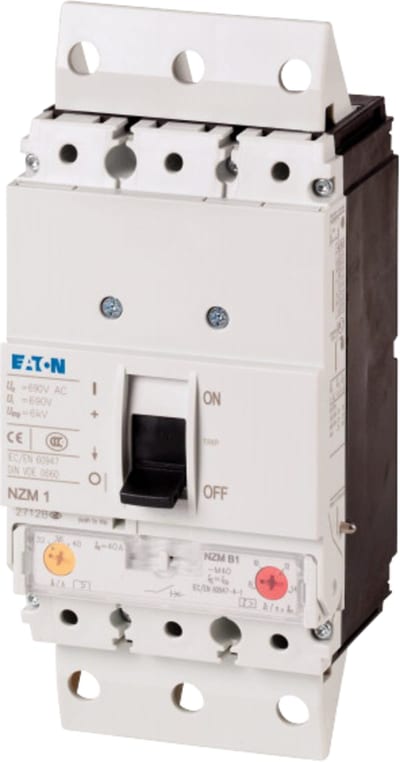

Eaton NZMB1-A50-SVE Molded-Case Circuit Breaker 3-Pole 50A 25KA
