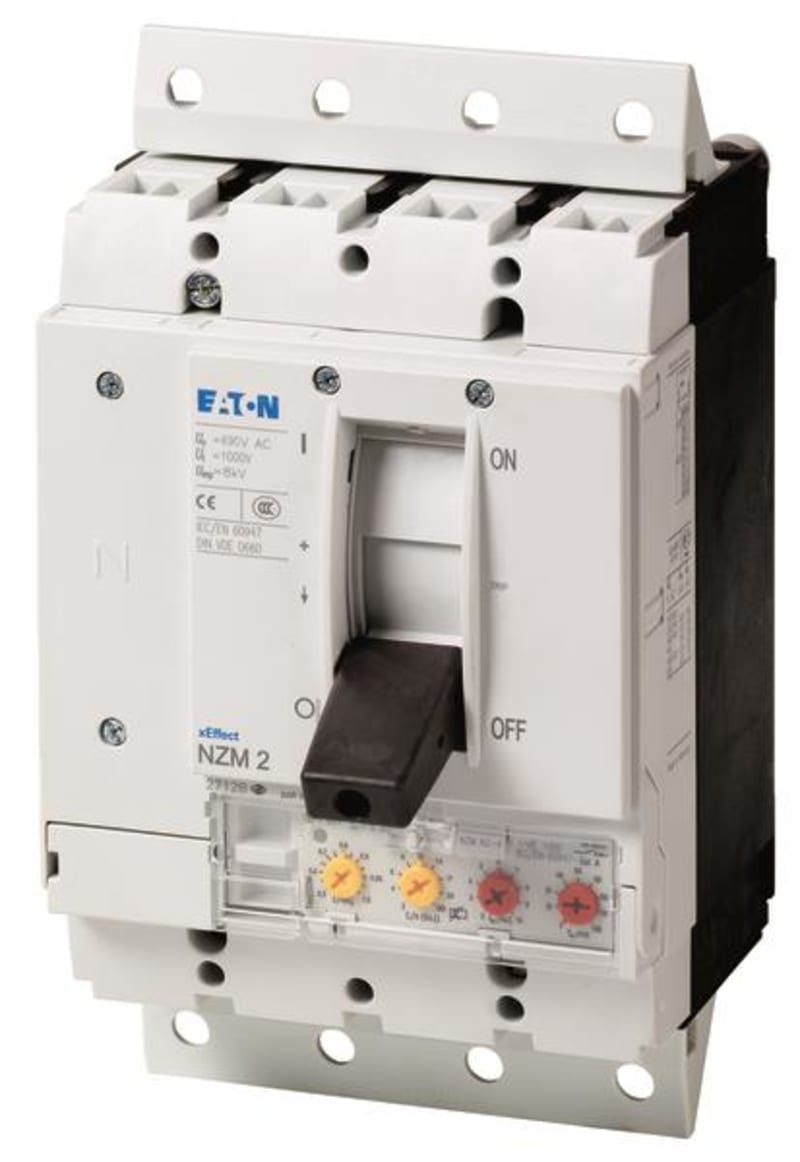

Eaton NZML2-4-VE160/100-SVE Molded-Case Circuit Breaker 4-Pole 160A 150KA

Eaton NZM2 molded-case circuit breaker, type NZML2-4-VE160/100-SVE. 4-pole, rated current 160 A, breaking-capacity class L, frame size NZM2 (up to 250 A). Rated operational voltage 690 V AC; rated ultimate short-circuit breaking capacity (Icu) 150 kA at 400/415 V AC to IEC/EN 60947-2. Electronic trip unit — adjustable overload and short-circuit protection. Plug-in (withdrawable) version. Utilization category A, suitable for isolation.

Manufacturer part number (MPN)

NZML2-4-VE160/100-SVE

Series

Eaton NZM2 (Moeller series NZM)

Type

Molded-case circuit breaker (MCCB)

Breaking-capacity class

L (current-limiting)

Number of poles

4-Pole

Rated current (In)

160 A

Frame size

NZM2 (up to 250 A)

Rated operational voltage (Ue)

690 V AC

Rated insulation voltage (Ui)

800 V

Rated ultimate short-circuit breaking capacity (Icu) at 400/415 V AC

150 kA

Trip unit / release

Electronic trip unit — adjustable overload and short-circuit protection

Utilization category

A

Suitable for isolation

Yes

Standard

IEC/EN 60947-2

Configuration

Plug-in (withdrawable) version

EAN / GTIN

4015081655229

HS code

8536.20

Sales unit

pcs

Eaton catalogue number

169029

Depth

180 mm

Height

245 mm

Width

140 mm

Weight

3.57 kg

Compliances

RoHS conform

Certifications

IEC/EN 60947; IEC

Functions

Systems, cable, selectivity and generator protection

Accessories required

NZM2-4-XSVS

Amperage Rating

160 A

Application

Use in unearthed supply systems at 690 V

Circuit breaker frame type

NZM2

Features

Motor drive optional; Protection unit

Release system

Electronic release

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

21.12 W

Rated operational current for specified heat dissipation (In)

160 A

Current rating of neutral conductor

100 A; 60% of phase conductor

Direction of incoming supply

As required

Electrical connection type of main circuit

Screw connection

Handle type

Rocker lever

Instantaneous current setting (Ii) - max

1920 A

Instantaneous current setting (Ii) - min

1920 A

Isolation

300 V AC (between the auxiliary contacts); 500 V AC (between auxiliary contacts and main contacts)

Lifespan, electrical

5000 operations at 690 V AC-3; 10000 operations at 400 V AC-1; 10000 operations at 415 V AC-1; 6500 operations at 400 V AC-3; 6500 operations at 415 V AC-3; 7500 operations at 690 V AC-1

Number of operations per hour - max

120

Overload current setting (Ir)

50 A - 100 A

Overload current setting (Ir) - max

160 A

Overload current setting (Ir) - min

80 A

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp) at auxiliary contacts

6000 V

Rated impulse withstand voltage (Uimp) at main contacts

8000 V

Rated short-circuit making capacity Icm at 240 V

50/60 Hz

330 kA

Rated short-circuit making capacity Icm at 400/415 V

Rated short-circuit making capacity Icm at 440 V

50/60 Hz

286 kA

Rated short-circuit making capacity Icm at 525 V

50/60 Hz

220 kA

Rated short-circuit making capacity Icm at 690 V

50/60 Hz

176 kA

Rated short-time withstand current (t = 0.3 s)

1.3 kA

Rated short-time withstand current (t = 1 s)

1.3 kA

Short delay current setting (Isd) - max

1600 A

Short delay current setting (Isd) - min

160 A

Short-circuit release delayed setting - max

1600 A

Short-circuit release delayed setting - min

160 A

Short-circuit release non-delayed setting - max

1920 A

Short-circuit release non-delayed setting - min

1920 A

Short-circuit total breaktime

< 10 ms

Voltage rating

690 V - 690 V

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Degree of protection

IP20; IP20 (basic degree of protection, in the operating controls area)

Degree of protection (IP), front side

IP40 (with insulating surround); IP66 (with door coupling rotary handle)

Degree of protection (terminations)

IP00 (terminations, phase insulator and strip terminal); IP10 (tunnel terminal)

Lifespan, mechanical

20000 operations

Mounting Method

DIN rail (top hat rail) mounting optional; Withdrawable; Built-in device plug-in technique

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Position of connection for main current circuit

Front side

Protection against direct contact

Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110

Shock resistance

20 g (half-sinusoidal shock 20 ms)

Optional terminals

Box terminal. Connection on rear. Tunnel terminal

Standard terminals

Screw terminal

Terminal capacity (aluminum solid conductor/cable)

16 mm² (1x) at tunnel terminal

Terminal capacity (aluminum stranded conductor/cable)

25 mm² - 185 mm² (1x) at tunnel terminal

Terminal capacity (control cable)

0.75 mm² - 1.5 mm² (2x); 0.75 mm² - 2.5 mm² (1x)

Terminal capacity (copper busbar)

M8 at rear-side screw connection; Min. 16 mm x 5 mm direct at switch rear-side connection; Max. 24 mm x 8 mm direct at switch rear-side connection

Terminal capacity (copper solid conductor/cable)

6 mm² - 16 mm² (2x) at box terminal; 6 mm² - 16 mm² (2x) direct at switch rear-side connection; 10 mm² - 16 mm² (1x) direct at switch rear-side connection; 10 mm² - 16 mm² (1x) at box terminal; 16 mm² (1x) at tunnel terminal

Terminal capacity (copper stranded conductor/cable)

25 mm² - 70 mm² (2x) direct at switch rear-side connection; 25 mm² - 185 mm² (1x) at box terminal; 25 mm² - 185 mm² (1x) direct at switch rear-side connection; 25 mm² - 70 mm² (2x) at box terminal; 25 mm² - 185 mm² (1x) at 1-hole tunnel terminal

Standard

Eaton NZM

HS Code

8536.20

• EAN 4015081655229
• SAP 1200600950
• Code 82981007
