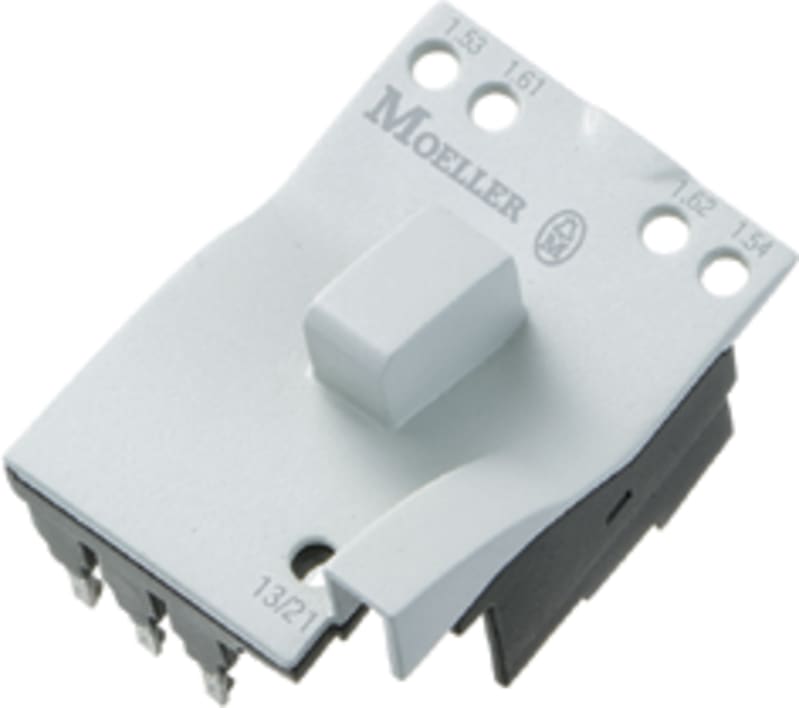

Plug-In Module PKZM0-XDM12 for DILM7–12 Contactors

Eaton PKZM0-XDM12 plug-in module (adapter) that connects a DILM7–DILM12 contactor directly to a PKZM0 motor-protective circuit breaker; 45 × 67 × 91 mm.

Manufacturer part number (MPN)

PKZM0-XDM12

EAN / GTIN

4015082831493

Sales unit

pcs

Eaton catalogue number

283149

Depth

91 mm

Height

67 mm

Width

45 mm

Weight

0.058 kg

Certifications

UL; UL File No.: E36332; CSA-C22.2 No. 14; CE; CSA; IEC/EN 60947-4-1; CSA Class No.: 3211-05; CSA File No.: 165628; UL 508; UL Category Control No.: NLRV

Catalog Notes

Cannot be combined with NHI‐E…PKZ0‐PI. Ue ≦ 415 V

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Rated operational current for specified heat dissipation (In)

15.5 A

Equipment heat dissipation, current-dependent Pvid

1.5 W

Heat dissipation per pole, current-dependent Pvid

0.5 W

Rated operational current (Ie)

15 A

Rated operational voltage (Ue) - max

415 VAC

Accessories

Cable routing, main current wiring between PKZM0 and contactor with tool-less plug connection, mechanical connection element for PKZM0 and contactor included with supplied equipment.

Model

Direct circuit

Product category

Accessories

Type

Wiring set

Suitable for number of poles

3

Country of origin

Czechia

HS Code

8538.90

• EAN 4015082831493
• SAP 1000049098
• Code 8805980
