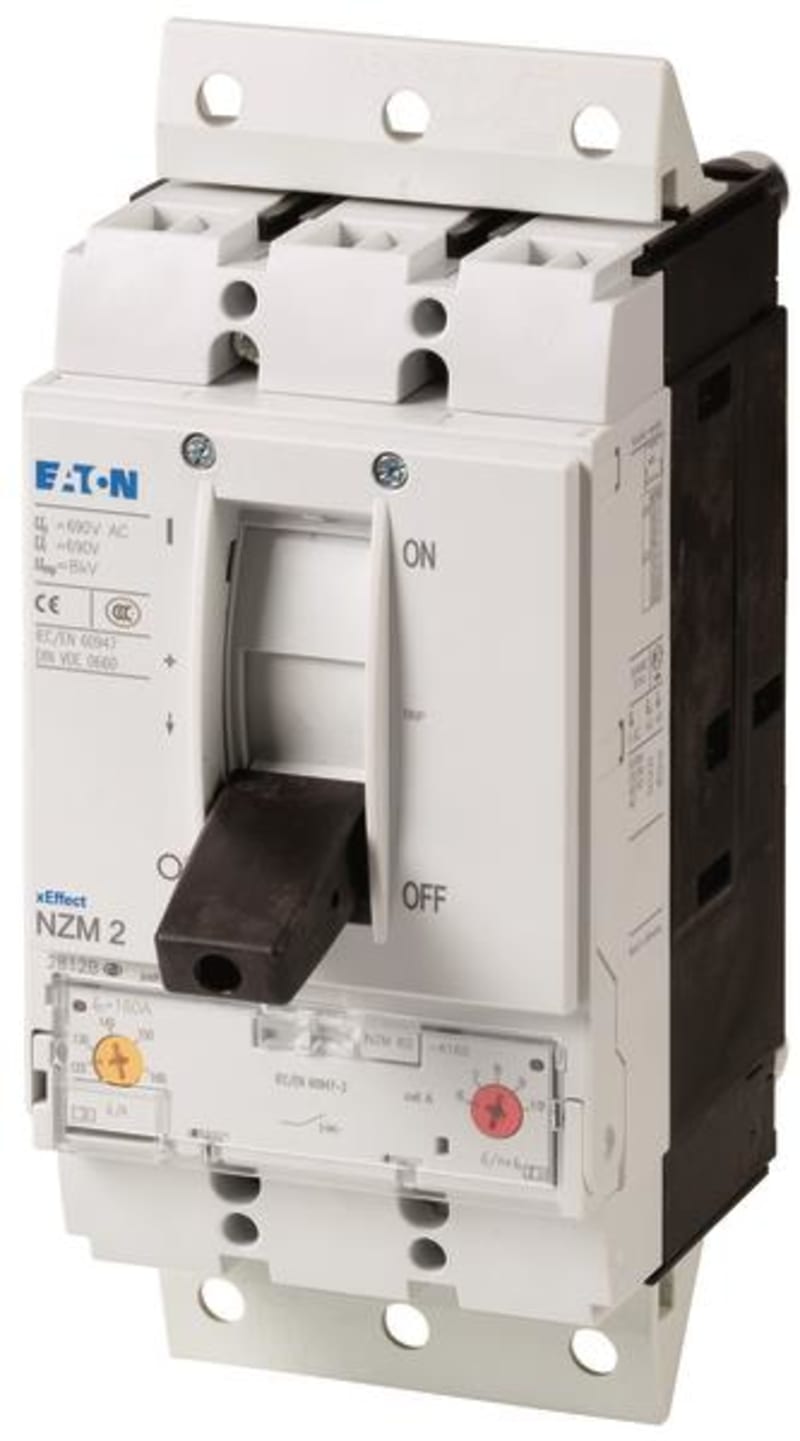

Eaton NZMH2-A63-SVE Molded-Case Circuit Breaker 3-Pole 63A 150KA
Eaton

Eaton NZMH2-A63-SVE Molded-Case Circuit Breaker 3-Pole 63A 150KA

Part numberNZMH2-A63-SVEEAN / GTIN4015081128655HS code8536.20
Eaton NZM
Electrical Components
Moulded Case Circuit Breakers
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Product Description

Eaton NZM2 molded-case circuit breaker, type NZMH2-A63-SVE. 3-pole, rated current 63 A, breaking-capacity class H, frame size NZM2 (up to 250 A). Rated operational voltage 690 V AC; rated ultimate short-circuit breaking capacity (Icu) 150 kA at 400/415 V AC to IEC/EN 60947-2. Thermomagnetic release — adjustable thermal overload and electromagnetic short-circuit protection. Plug-in (withdrawable) version. Utilization category A, suitable for isolation.

Technical Specifications

Manufacturer part number (MPN)
NZMH2-A63-SVE
Series
Eaton NZM2 (Moeller series NZM)
Type
Molded-case circuit breaker (MCCB)
Breaking-capacity class
H (high breaking capacity)
Number of poles
3-Pole
Rated current (In)
63 A
Frame size
NZM2 (up to 250 A)
Rated operational voltage (Ue)
690 V AC
Rated insulation voltage (Ui)
800 V
Rated ultimate short-circuit breaking capacity (Icu) at 400/415 V AC
150 kA
Trip unit / release
Thermomagnetic release — adjustable thermal overload and electromagnetic short-circuit protection
Utilization category
A
Suitable for isolation
Yes
Standard
IEC/EN 60947-2
Configuration
Plug-in (withdrawable) version
EAN / GTIN
4015081128655
HS code
8536.20
Sales unit
pcs
Eaton catalogue number
113330
Depth
180 mm
Height
245 mm
Width
105 mm
Weight
2.817 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947; IEC
Functions
System and cable protection
Accessories required
NZM2-XSVS
Amperage Rating
63 A
Application
Use in unearthed supply systems at 690 V
Circuit breaker frame type
NZM2
Features
Motor drive optional; Protection unit
Release system
Thermomagnetic release
Special features
Maximum back-up fuse, if the expected short-circuit currents at the installation location exceed the switching capacity of the circuit breaker (Rated short-circuit breaking capacity Icn) Rated current = rated uninterrupted current: 63 A
Ambient operating temperature - max
70 °C
Ambient storage temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent
20.24 W
Rated operational current for specified heat dissipation (In)
63 A
Direction of incoming supply
As required
Electrical connection type of main circuit
Screw connection
Handle type
Rocker lever
Instantaneous current setting (Ii) - max
630 A
Instantaneous current setting (Ii) - min
380 A
Isolation
300 V AC (between the auxiliary contacts); 500 V AC (between auxiliary contacts and main contacts)
Lifespan, electrical
6500 operations at 400 V AC-3; 6500 operations at 415 V AC-3; 10000 operations at 415 V AC-1; 7500 operations at 690 V AC-1; 10000 operations at 400 V AC-1; 5000 operations at 690 V AC-3
Number of operations per hour - max
120
Overload current setting (Ir) - max
63 A
Overload current setting (Ir) - min
50 A
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated short-circuit making capacity Icm at 240 V
50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V
Rated short-circuit making capacity Icm at 440 V
50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V
50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 690 V
50/60 Hz
40 kA
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Short-circuit release non-delayed setting - max
630 A
Short-circuit release non-delayed setting - min
378 A
Short-circuit total breaktime
< 10 ms
Voltage rating
690 V - 690 V
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
Degree of protection
IP20 (basic degree of protection, in the operating controls area); IP20
Degree of protection (IP), front side
IP40 (with insulating surround); IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase insulator and strip terminal); IP10 (tunnel terminal)
Lifespan, mechanical
20000 operations
Mounting Method
Built-in device plug-in technique; Plug-in unit; DIN rail (top hat rail) mounting optional
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Front side
Protection against direct contact
Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Optional terminals
Box terminal. Connection on rear. Tunnel terminal
Standard terminals
Screw terminal
Terminal capacity (aluminum solid conductor/cable)
16 mm² (1x) at tunnel terminal
Terminal capacity (aluminum stranded conductor/cable)
25 mm² - 185 mm² (1x) at tunnel terminal
Terminal capacity (control cable)
0.75 mm² - 1.5 mm² (2x); 0.75 mm² - 2.5 mm² (1x)
Terminal capacity (copper busbar)
Max. 24 mm x 8 mm direct at switch rear-side connection; Min. 16 mm x 5 mm direct at switch rear-side connection; M8 at rear-side screw connection
Terminal capacity (copper solid conductor/cable)
10 mm² - 16 mm² (1x) direct at switch rear-side connection; 6 mm² - 16 mm² (2x) direct at switch rear-side connection; 6 mm² - 16 mm² (2x) at box terminal; 16 mm² (1x) at tunnel terminal; 10 mm² - 16 mm² (1x) at box terminal
Terminal capacity (copper stranded conductor/cable)
25 mm² - 185 mm² (1x) direct at switch rear-side connection; 25 mm² - 185 mm² (1x) at box terminal; 25 mm² - 70 mm² (2x) at box terminal; 25 mm² - 70 mm² (2x) direct at switch rear-side connection; 25 mm² - 185 mm² (1x) at 1-hole tunnel terminal
Terminal capacity (copper strip)
Max. 10 segments of 24 mm x 0.8 mm at rear-side connection (punched); Min. 2 segments of 9 mm x 0.8 mm at box terminal; Max. 8 segments of 24 mm x 1 mm (2x) at box terminal; Max. 10 segments of 16 mm x 0.8 mm at box terminal; Min. 2 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Document Name
Description Action

Standards & Compliance

Standard
Eaton NZM
HS Code
8536.20

Cross References

  • EAN 4015081128655
  • SAP 1200282261
  • Code 82253944

Product Documentation

Document preview: Eaton NZMH2-A63-SVE Molded-Case Circuit Breaker 3-Pole 63A 150kA — Specification Data Sheet (OEM)

Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
