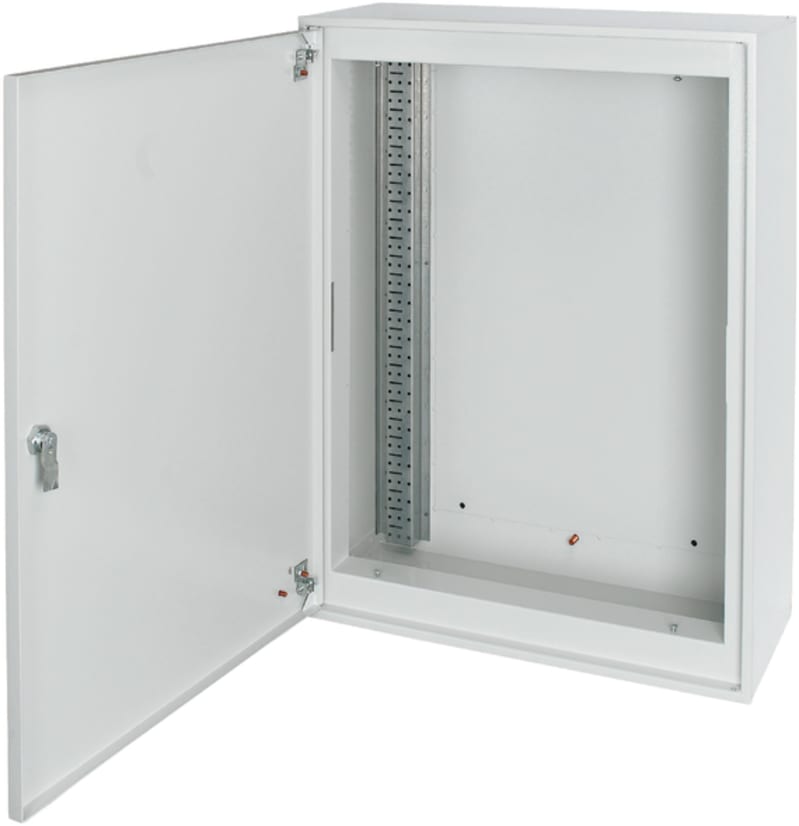

Panel board B400 H1060
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Panel board B400 H1060 (part number BP-O-400/10-EW) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 116616; Depth: 262 mm; Height: 1060 mm; Width: 400 mm; Weight: 28 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-O-400/10-EW
- EAN / GTIN
- 4015081163618
- Sales unit
- pcs
- Eaton catalogue number
- 116616
- Depth
- 262 mm
- Height
- 1060 mm
- Width
- 400 mm
- Weight
- 28 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Fire resistance grade
- Fire-resistant (E60/EW60)
- Functions
- Basic device; Extension possible; Sealable
- RAL-number
- 7035
- Application
- Indoor (installation site)
- Color
- Gray; Light gray (RAL 7035)
- Type
- Basic device
- Built-in height
- 1090 mm
- Built-in width
- 430 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Three-point turn-lock; Single
- Enclosure material
- Steel
- Internal depth
- 257.5 mm
- Material
- Sheet steel
- Mounting method
- Surface mounting; Surface mounted (plaster)
- Number of rows
- 6
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 13
- Built-in depth
- 300 mm
- Degree of protection
- IP30
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 257.5 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081163618
- SAP 1200283967
- Code 82252753
