Eaton

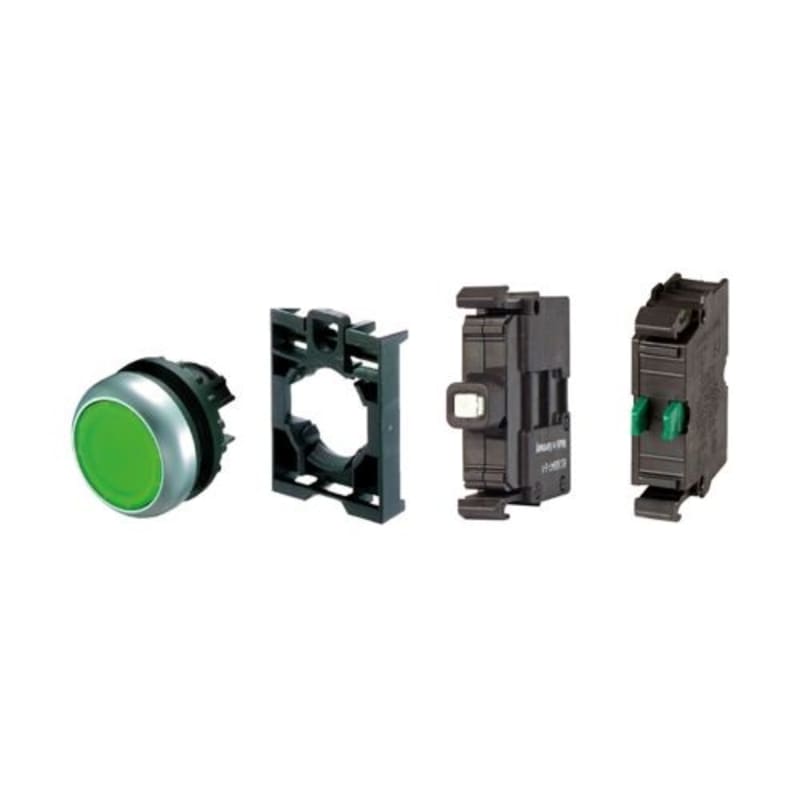

Push-button with light, RMQ (M22-DL-G-K10LED-BVP)
Part numberM22-DL-G-K10LED-BVPEAN / GTIN4015081104598HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DL-G-K10LED-BVP.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DL-G-K10LED-BVP
- EAN / GTIN
- 4015081104598
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 110930
- Depth
- 50 mm
- Height
- 80 mm
- Width
- 50 mm
- Weight
- 0.032 kg
- Certifications
- DNV; GL; LR
- Actuator color
- Green
- Actuator function
- Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Fitted with
- Front ring
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Static heat dissipation, non-current-dependent Pvs
- 0.45 W
- Degree of protection (front side)
- NEMA 4X; IP67
- Opening diameter
- 22 mm
- Product category
- RMQ-Titan
- Suitable for
- Illumination
- Hole diameter
- 22 mm
- Colour button
- Green
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081104598
- SAP 1000767402
- Code 8560328
Product Documentation
Document preview: Push-button with lys, RMQ (M22-DL-G-K10LED-BVP) — Specification Data Sheet (OEM)
