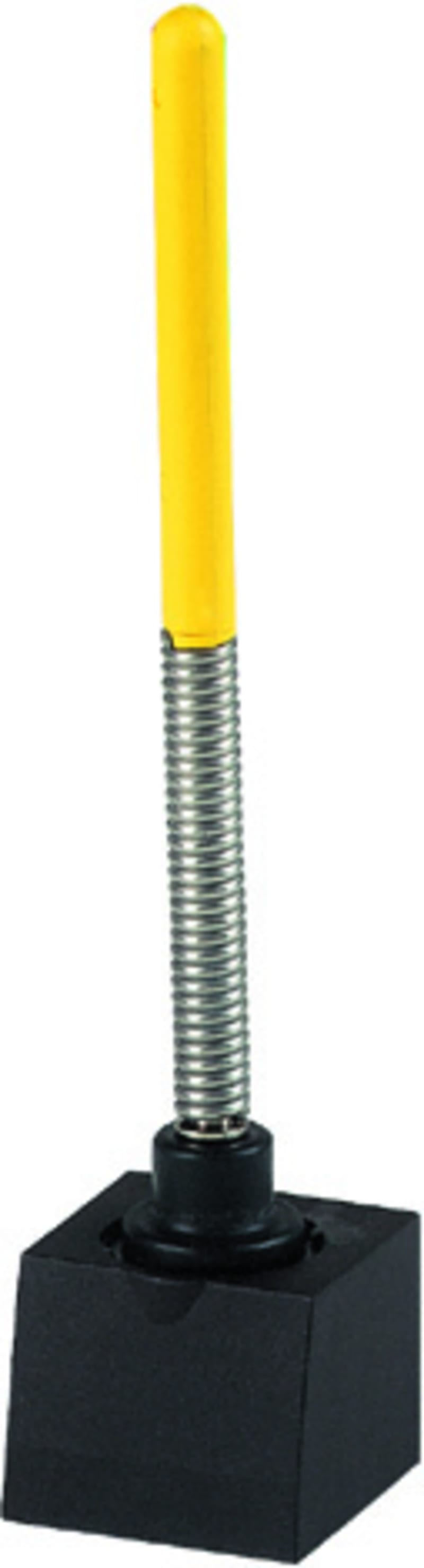

Eaton LSM-XS Spring-Rod Actuator for Position Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton LSM-XS is a spring-rod actuator head for use with LS-S basic position switches. The head is rotatable through 90 degrees to adapt to the required approach direction and is intended for use with snap-action contact blocks. Typical applications include machine safeguarding and position sensing on doors and moving assemblies, with an operating temperature range of -25 to 70 °C.
Technical Specifications
- Manufacturer part number (MPN)
- LSM-XS
- EAN / GTIN
- 4015082661632
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 266163
- Depth
- 25 mm
- Height
- 120 mm
- Width
- 25 mm
- Weight
- 0.045 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; IEC 60947-5; CSA Std. C22.2 No. 14; UL 508; CSA; CSA File No.: 012528; IEC/EN 60947-5; UL Category Control No.: NKCR; UL File No.: E29184; CE; CSA Class No.: 3211-03; CSA-C22.2 No. 14; UL
- Catalog Notes
- Up to -25 °C in conjunction with LS-S…-CC basic device
- Actuator type
- Spring-rod
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Features
- The operating head can be rotated 90° to enable adaptation to the specified approach direction; Only permissible with snap-action contact
- Product category
- Spring-rod actuator
- Type
- Operating heads
- Type of control element
- Spring-rod
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082661632
- SAP 1000289309
- Code 847615
Product Documentation
More from Eaton
Eaton
Connectionselement B=1200mm (BP-MFL-1200)
Eaton

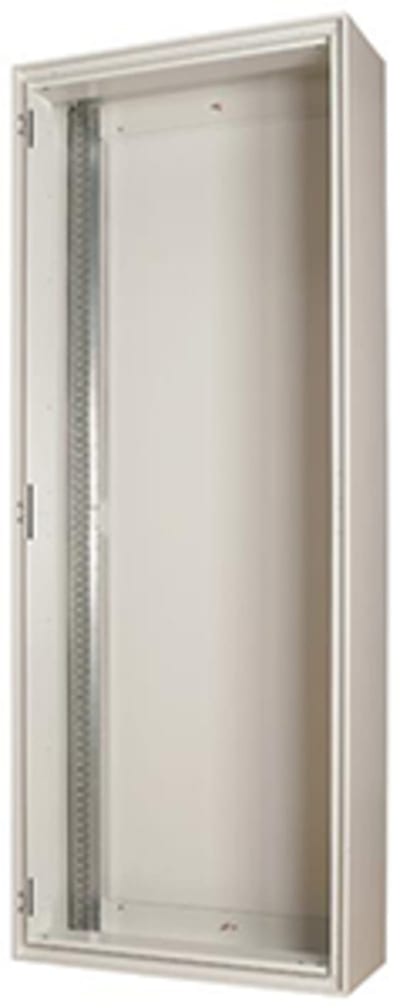

Floor-standing cabinet IP55 xE without door H2060 B800 D320
BPM-F-800/20-F
Eaton
Eaton FAZ-C3/2 Miniature Circuit Breaker — 2P, Type C, 3 A, 15 kA
Eaton

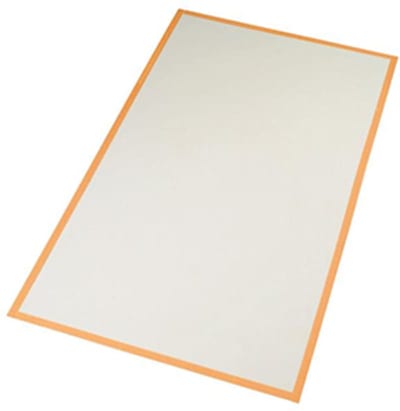

Pl. backplate HxB=1260X600 mm
BPZ-RPP-600/12
Eaton

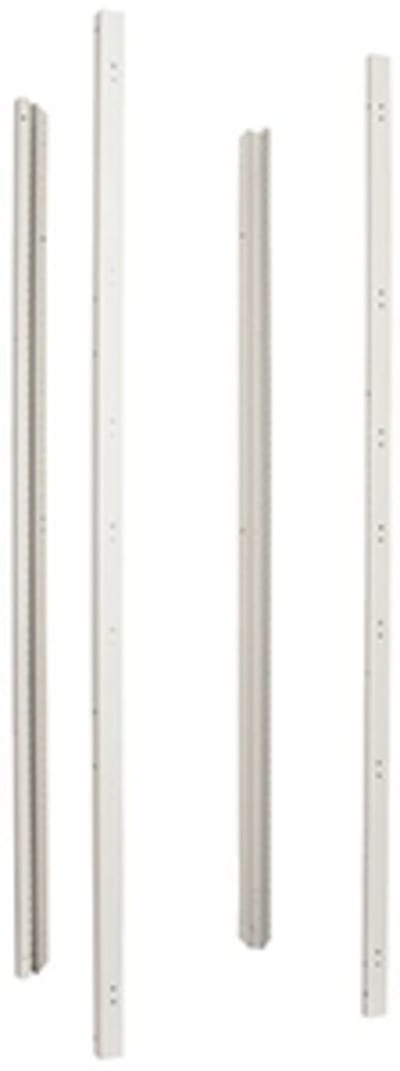

Corner Profiles xE Light (XLH14)
Eaton

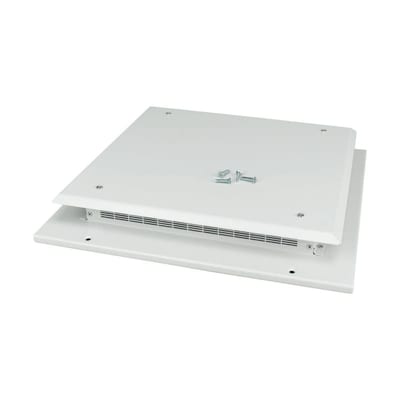

Top plate IP31 xE Light (XLST3114)
Eaton

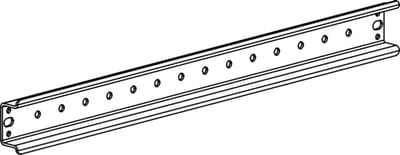

DIN-Rail L=0.3M (220E4352)
Eaton

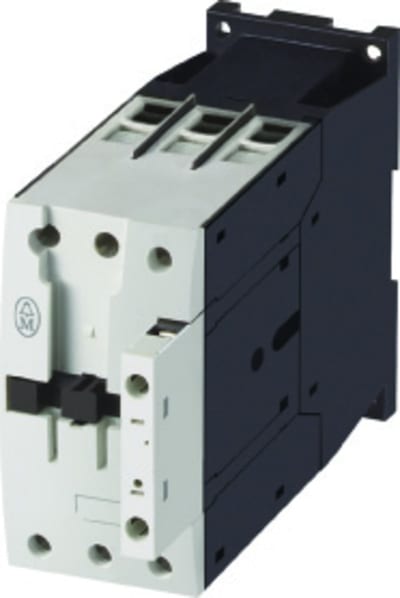

CONTACTOR,40A AC-3, AC Coil (DILM40(24V50HZ))
