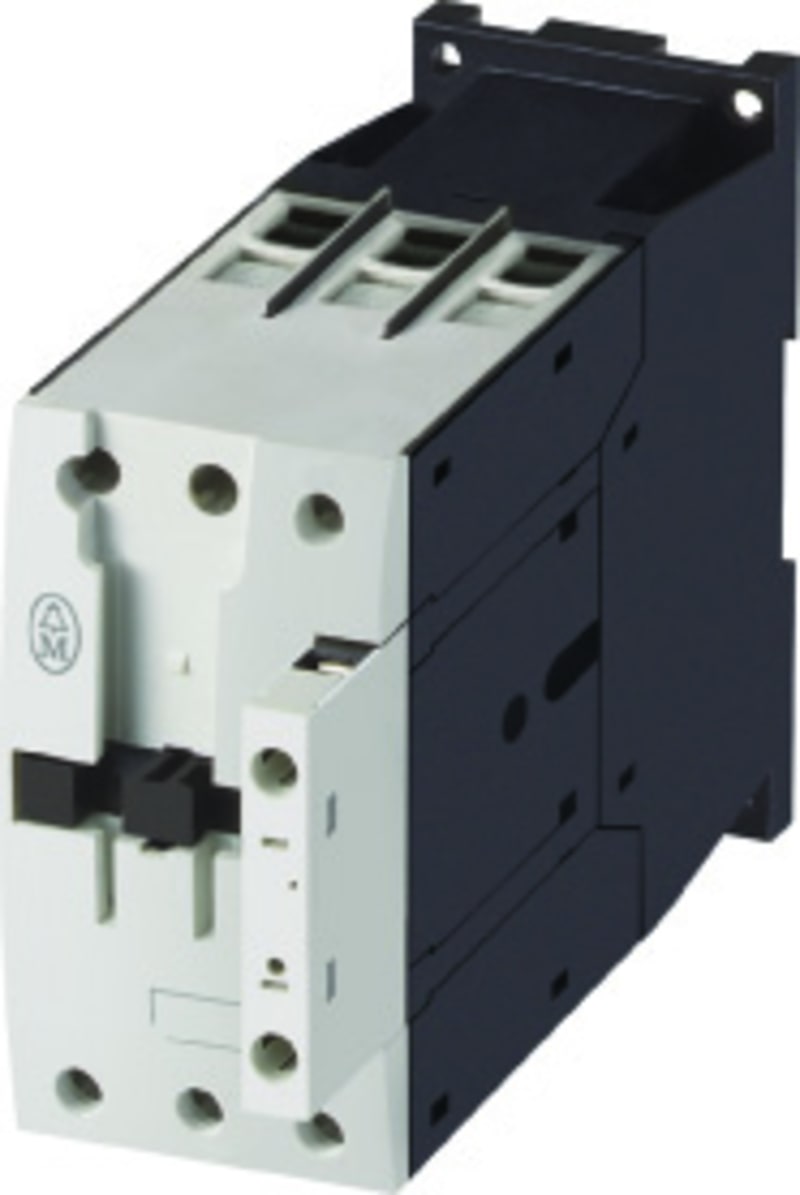

CONTACTOR,40A AC-3, AC Coil (DILM40(24V50HZ))

Eaton DILM40(24V50HZ) Contactor 3-pole, 24 VAC incl. 1NO.

Manufacturer part number (MPN)

DILM40(24V50HZ)

EAN / GTIN

4015082777531

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

277753

Depth

132.1 mm

Height

115 mm

Width

55 mm

Weight

0.872 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14-05; EN 60947-4-1; IEC 60947-4-1; UL 508; VDE; IEC/EN 60947-4-1; UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; UL Category Control No.: NLDX; IEC/EN 60947; VDE 0660; CE; CSA; UL File No.: E29096; UL; CSA File No.: 012528; CSA Class No.: 2411-03, 3211-04

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

112 A

Conventional thermal current Ith (3-pole, enclosed)

45 A

Conventional thermal current Ith at 55°C (3-pole, open)

55 A

Conventional thermal current Ith at 60°C (3-pole, open)

50 A

Conventional thermal current Ith of main contacts (1-pole, open)

125 A

Equipment heat dissipation, current-dependent Pvid

6.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

2.2 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent Pvs

4.1 W

Rated breaking capacity at 220/230 V

400 A

Rated breaking capacity at 380/400 V

400 A

Rated breaking capacity at 500 V

400 A

Rated breaking capacity at 660/690 V

250 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

560 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

60 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

40 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

40 A

Rated operational current (Ie) at AC-3, 440 V

40 A

Rated operational current (Ie) at AC-3, 500 V

40 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

25 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

18 A

Rated operational current (Ie) at AC-4, 440 V

18 A

Rated operational current (Ie) at AC-4, 500 V

18 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

14 A

Rated operational current (Ie) at DC-1, 110 V

50 A

Rated operational current (Ie) at DC-1, 220 V

45 A

Rated operational current (Ie) at DC-1, 60 V

50 A

Rated operational power at AC-3, 240 V, 50 Hz

13.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

18.5 kW

Rated operational power at AC-3, 415 V, 50 Hz

24 kW

Rated operational power at AC-3, 440 V, 50 Hz

25 kW

Rated operational power at AC-3, 500 V, 50 Hz

28 kW

Rated operational power at AC-3, 690 V, 50 Hz

23 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

5 kW

Rated operational power at AC-4, 240 V, 50 Hz

5.5 kW

Rated operational power at AC-4, 415 V, 50 Hz

9.5 kW

Rated operational power at AC-4, 440 V, 50 Hz

10 kW

Rated operational power at AC-4, 500 V, 50 Hz

11 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

12 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

5000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

1.9 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Frame size

FS3

Arcing time

10 ms

Drop-out voltage

AC operated: 0.6 - 0.3 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

149 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up, 60 Hz

178 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing, 50 Hz

4.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz; 16 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, sealing, 60 Hz

4.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 19 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

24 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Switching time (AC operated, make contacts, closing delay) - max

18 ms

Switching time (AC operated, make contacts, closing delay) - min

12 ms

Switching time (AC operated, make contacts, opening delay) - max

13 ms

Switching time (AC operated, make contacts, opening delay) - min

8 ms

Assigned motor power at 115/120 V, 60 Hz, 1-phase

3 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

10 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

7.5 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

15 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

30 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

40 HP

Safe isolation

440 V AC, Between coil and contacts, According to EN 61140; 440 V AC, Between the contacts, According to EN 61140

Short-circuit current rating (basic rating)

5 kA, 250 A max. fuse, SCCR (UL/CSA); 5 kA, 250 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 150 A CLASS J max. fuse, SCCR (UL/CSA); 65 kA, 100 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 150 A CLASS J max. fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

125 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

80 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

63 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

50 A gG/gL

Special purpose rating of elevator control

32 A, 600 V 60 Hz 3-ph, (UL/CSA); 10 HP, 240 V 60 Hz 3-ph, (UL/CSA); 7.5 HP, 200 V 60 Hz 3-ph, (UL/CSA); 25 HP, 480 V 60 Hz 3-ph, (UL/CSA); 30 HP, 600 V 60 Hz 3-ph, (UL/CSA); 28 A, 240 V 60 Hz 3-ph, (UL/CSA); 25.3 A, 200 V 60 Hz 3-ph, (UL/CSA); 34 A, 480 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of resistance air heating

79 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA); 79 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of tungsten incandescent lamps

74 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA); 74 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of ballast electrical discharge lamps

79 A (480V 60Hz 3phase, 277V 60Hz 1phase); 79 A (600V 60Hz 3phase, 347V 60Hz 1phase)

Switching capacity (main contacts, general use)

63 A, Maximum motor rating (UL/CSA)

Screw size

M6, Terminal screw, Main cables; M3.5, Terminal screw, Control circuit cables

Screwdriver size

0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver; 2, Terminal screw, Pozidriv screwdriver

HS Code

8536.90
