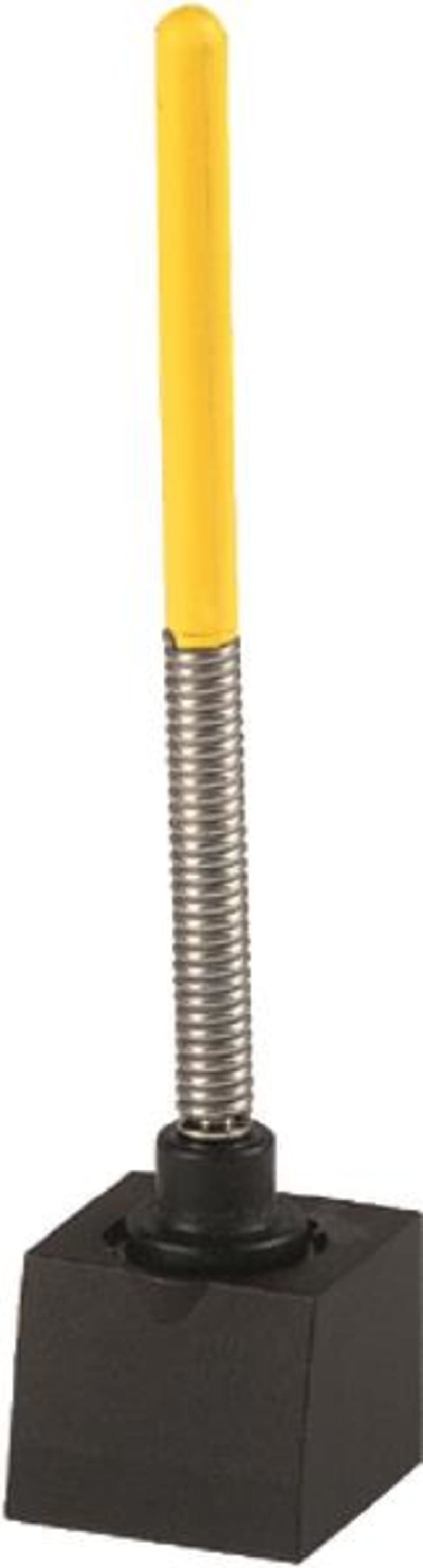

Eaton LS-XS Spring-Rod Actuator for LS Limit Switch

Eaton LS-XS is a spring-rod actuator head for the LS position/limit switch family, rated for operation from -25 degC to +70 degC. The operating head can be rotated in 90 deg increments to adapt to the required approach direction and is only permitted with snap-action contact blocks. It is certified to IEC/EN 60947-5, UL 508 and CSA C22.2 No. 14.

Manufacturer part number (MPN)

LS-XS

EAN / GTIN

4015082661335

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

266133

Depth

25 mm

Height

120 mm

Width

25 mm

Weight

0.016 kg

Compliances

CE Marked

Certifications

IEC 60947-5; EN 60947-5; UL 508; CSA Std. C22.2 No. 14; CSA Class No.: 3211-03; CSA File No.: 012528; CSA-C22.2 No. 14; CE; UL; UL File No.: E29184; CSA; IEC/EN 60947-5; UL Category Control No.: NKCR

Catalog Notes

Up to -25 °C in conjunction with LS-S…-CC basic device

Actuator type

Spring-rod

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

0 A

Static heat dissipation, non-current-dependent Pvs

0 W

Features

The operating head can be rotated 90° to enable adaptation to the specified approach direction; Only permissible with snap-action contact

Product category

Spring-rod actuator

Type

Operating heads

HS Code

8536.90

• EAN 4015082661335
• SAP 1000026368
• Code 8501048
